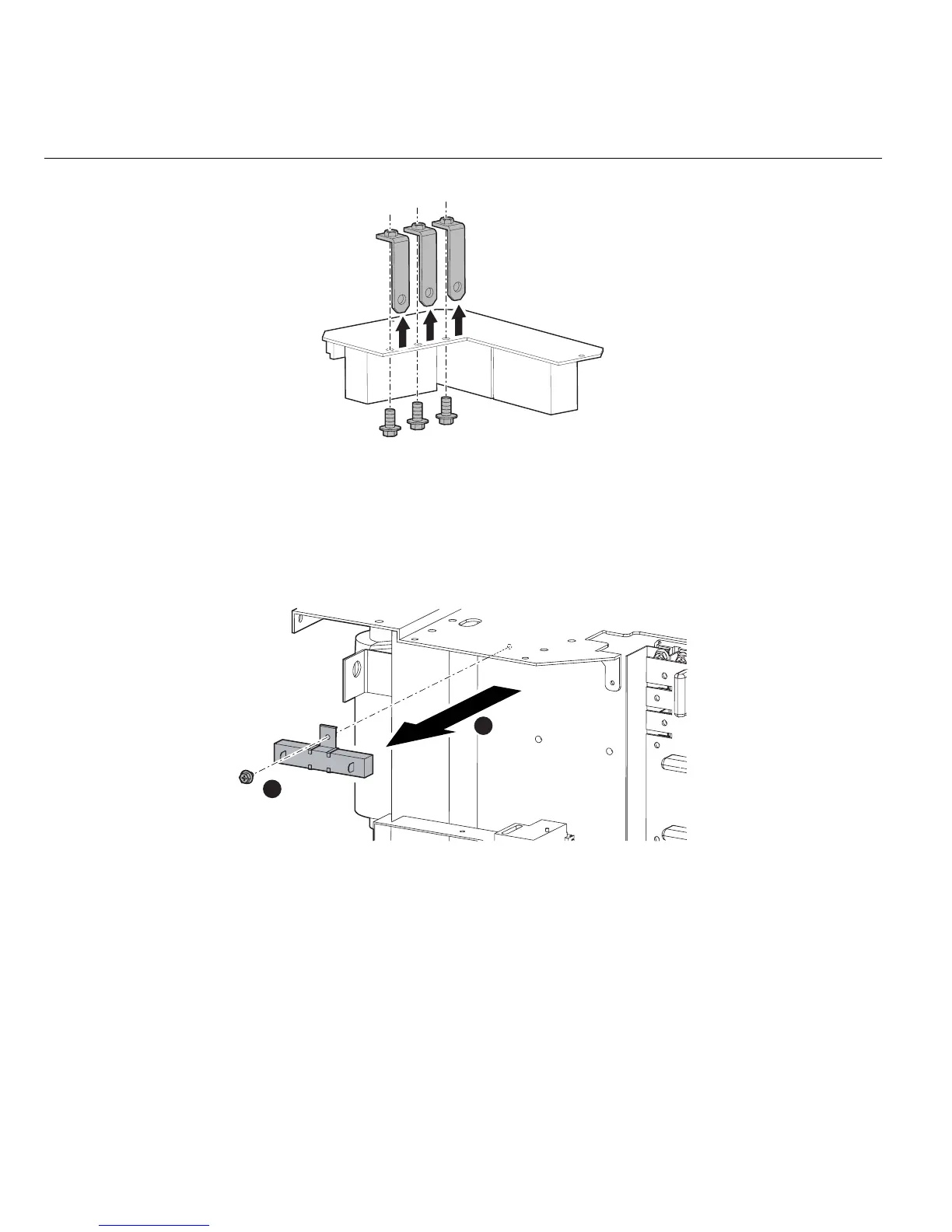

5) Remove the three screws and the S1 Bus Bar from the PCB21 (WK-4917).
3.15 Current Limiting Resistor (R6)
1) Remove the Side Panel. [Reference page : 11-1]
2) Remove the HF.UNIT1. [Reference page : 12-26]
3) Cut the cable. Remove one screw and then remove the Current Limiting Resistor (R6).
1
2
