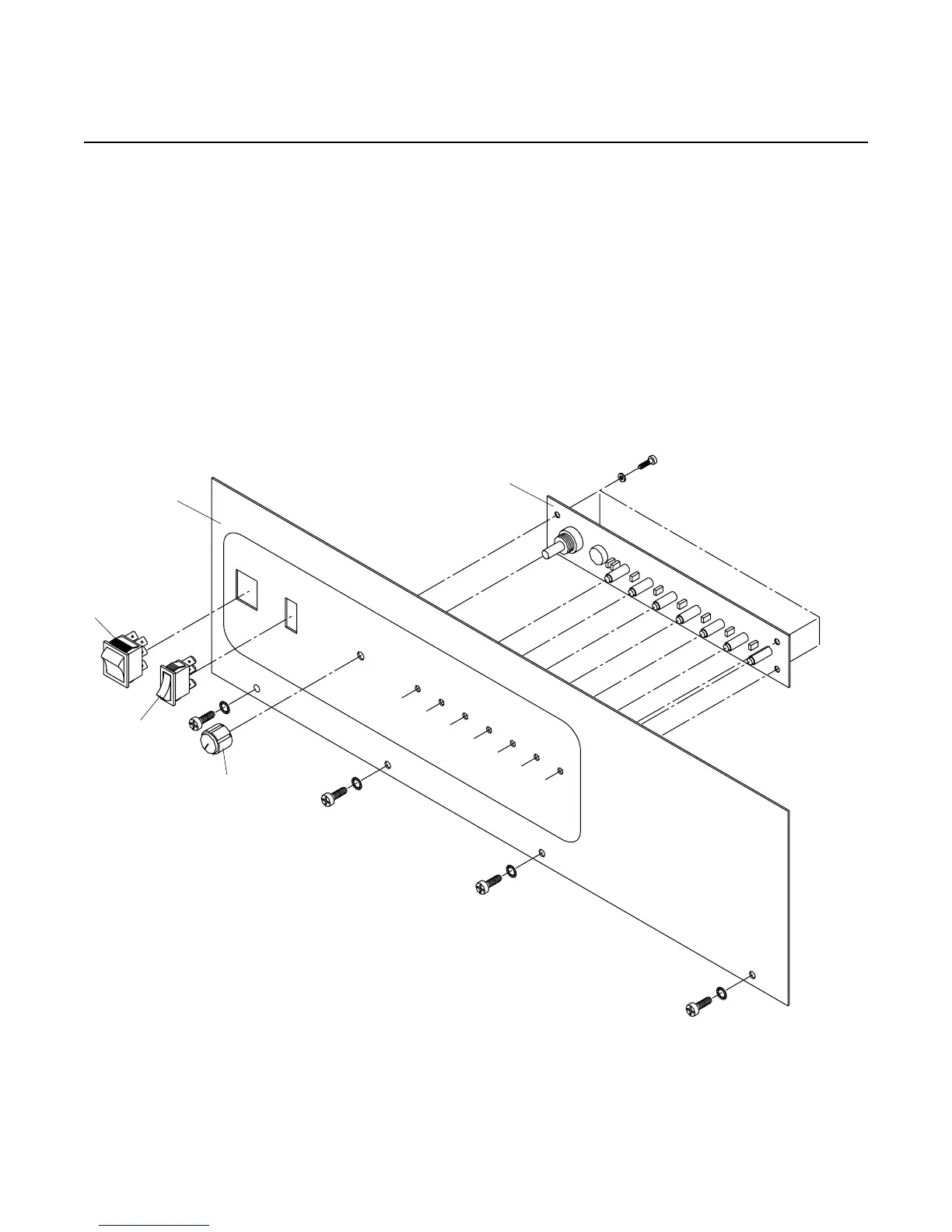

Manual 0-2569 63 PARTS LISTS
6.04 Access Panel Replacement Parts
Item # Qty. Description Reference Catalog #
1 Access Panel Assembly Includes:
1 1 Access Panel With Overlay 9-7008
2 1 ON/OFF Rocker Switch, DPST SW1 8-3258
3 1 LED/Current Control PC Board Assembly 9-5759
4 1 Knob, Inner Concentric 9-4146
5 1 RUN/SET Rocker Switch, DPST SW2 8-3259
A-02340
1
2
3
4
5
