Thermal Dynamics MERLIN 6000 Service Manual

APPENDIX 88 Manual 0-2569

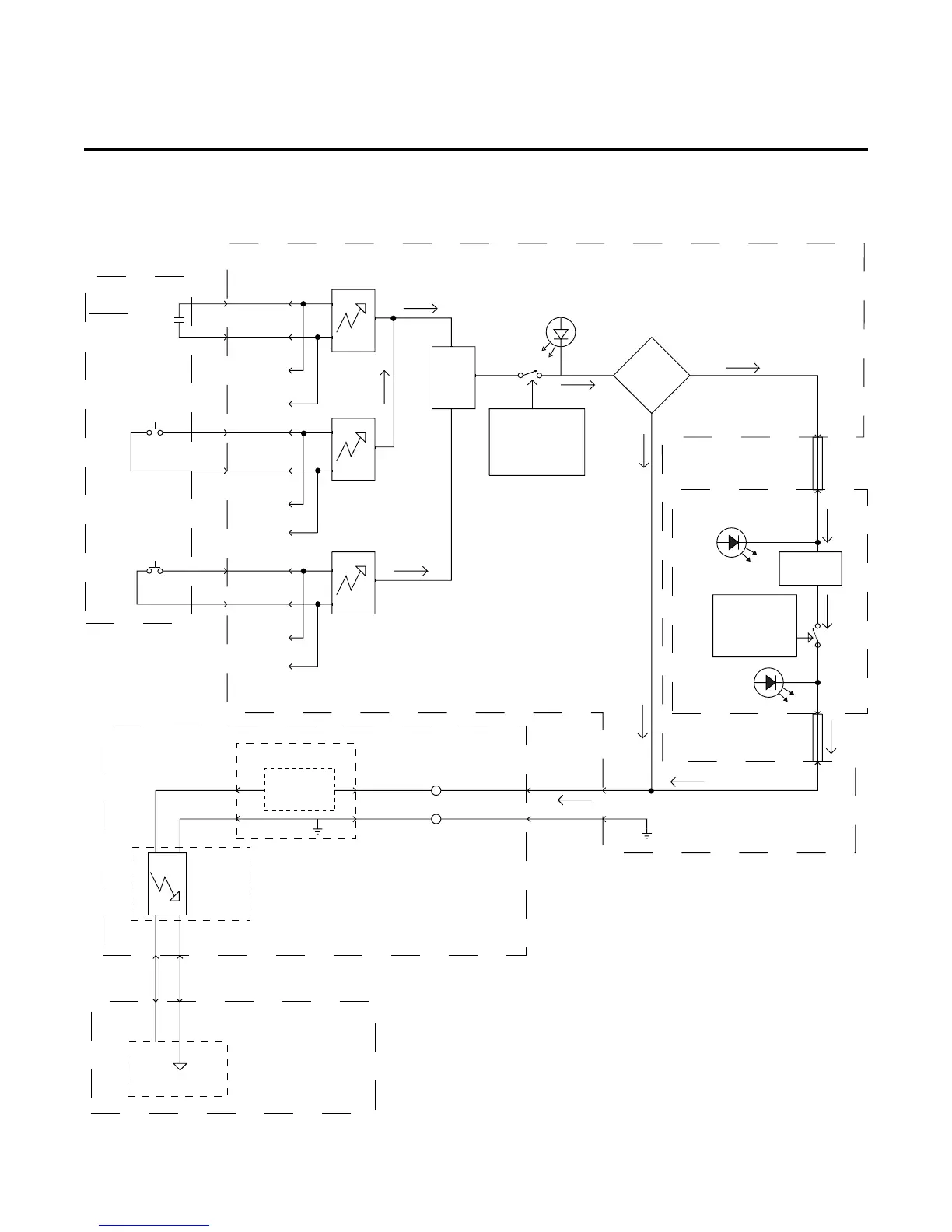

APPENDIX XI: START CIRCUIT DIAGRAM WITH
STANDOFF CONTROL SC10
A-02040
Start Circuit for Merlin 6000 and Merlin 6000GST with
Remote Control RC 6010 and Standoff Control SC 10
CNC Controls
Remote Control RC 6010
Remote
Cable
Merlin 6000 or
Merlin 6000GST
Master Power Supply
Logic PC Board
PREFLOW
Delay
J4-6
J4-5
J1-19
J1-18
TB2-3
TB2-4
J15-24
J15-25
J37-9
J37-10
Internal Ribbon
Cable
PLASMA ON
J5-17
J7-15
START
D79
Height Found
or
Find Ht OFF
FIND
HEIGHT
START
D103
With
SC10
No
Ye s
J5-13
J7-13
Internal Ribbon
Cable
ENABLE ON
& Station
Select Active
START
STOP
Standoff Control SC 10
OPTO-
Isolator
J29-3
J29-4
J9-3
J9-4
START/STOP
START
(Momentary)
STOP
(Momentary)
J6-6
J6-5
J29-6
J29-5
J29-2
J29-1
J6-4
J6-9
J6-10
J9-1
J9-2
J9-5
J9-6
J6-3
J70-20J70-18
Isolation
PC Board
J71-5J71-4
J54-4
J54-3
Parallel Cable
J15-25J15-24
Logic PC Board
J1-9
J1-18
Merlin 6000
Slave Power Supply
