APPENDIX 92 Manual 0-2569

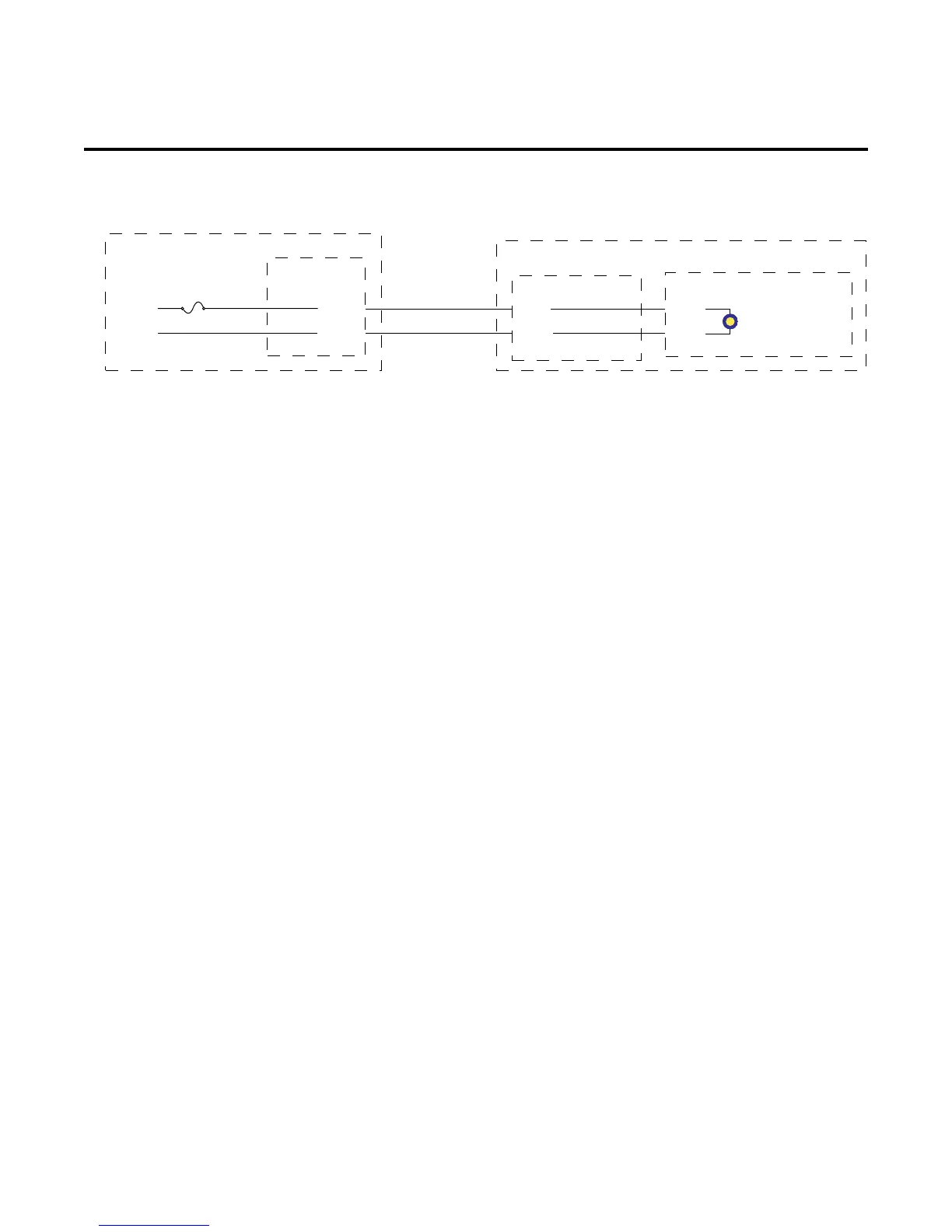

APPENDIX XV: ARC STARTER BOX - 24 VAC CIRCUIT
DIAGRAM
Torch Control
Connector
Merlin 6000 Power Supply
F3
(1A, 250V)
24 VAC
J14-5
J14-8
J1-1
J1-3
Arc Starter PC Board
24 VAC Present
(Red LED On)
J2-1
J2-2
Arc Starter Box
Panel Connector
Arc Starter Box
Control Cable
(Part of Torch Supply Leads)
(108)
(109)
(14)
(15)
A-01255
