Thermal Dynamics MERLIN 6000 Service Manual

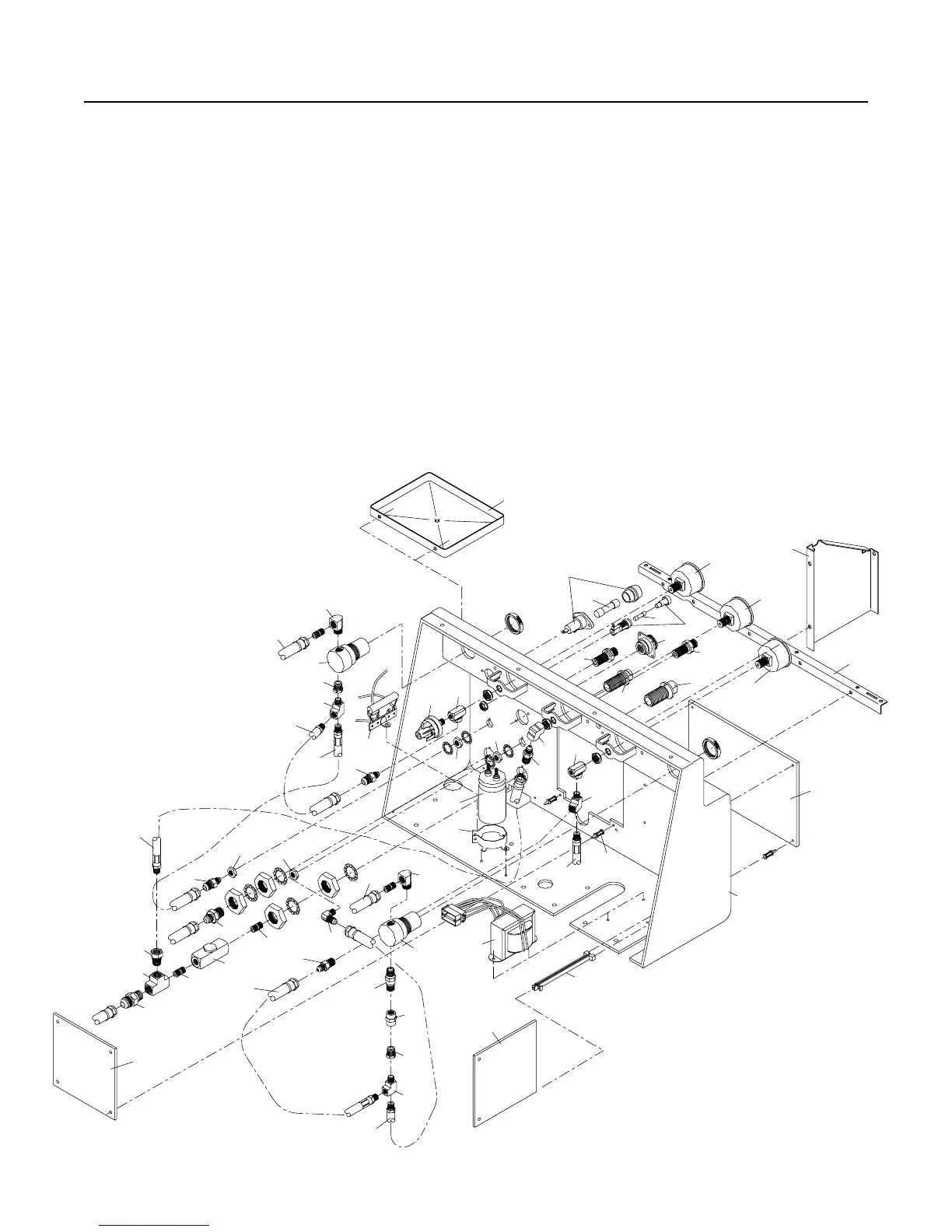

Manual 0-2569 71 PARTS LISTS
Item # Qty. Description Catalog #
38 2 3/8 NPT Close Nipple 9-2384
39 1 Valve, Check 3/8 NPT Female, Brass 9-1402
40 1 Check Valve, Male, 1/4 NPT, 5 PSI 8-4512
41 1 Hose Assembly, Secondary Water, Gauge To T-Fitting 8-4513
42 1 Hose Assembly, Secondary Gas/Water to Bulkhead 8-4514
43 1 Hose Assembly, Secondary Gas Inlet to Regulator 8-4515
44 1 Hose Assembly, Bulkhead to Coolant Pressure Gauge 8-4516
45 1 Hose Assembly, Secondary Water Inlet to Gauge 8-4517
46 1 Hose Assembly, Plasma Gas Inlet to Regulator 8-4515
47 1 Hose Assembly, Plasma Gas Regulator To Bulkhead 8-4513
48 1 Hose Assembly, Plasma Gas Regulator To Gauge 8-4513
49 1 Bracket, Access Mounting 9-6659
50 1 Panel Divider 9-6660
51 1 Voltage Divider Replacement Kit 9-1416
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
28
29
30
31
33
34
36
37
38
39
40
22
31
38
25
24
30
32
35
9
30
27
22
31
31
7
A-02343
28
46
48
47
43
41
44
42
45
49
50
51
