5.05 SERVICING TORCH LEADS COMPONENTS (continued)

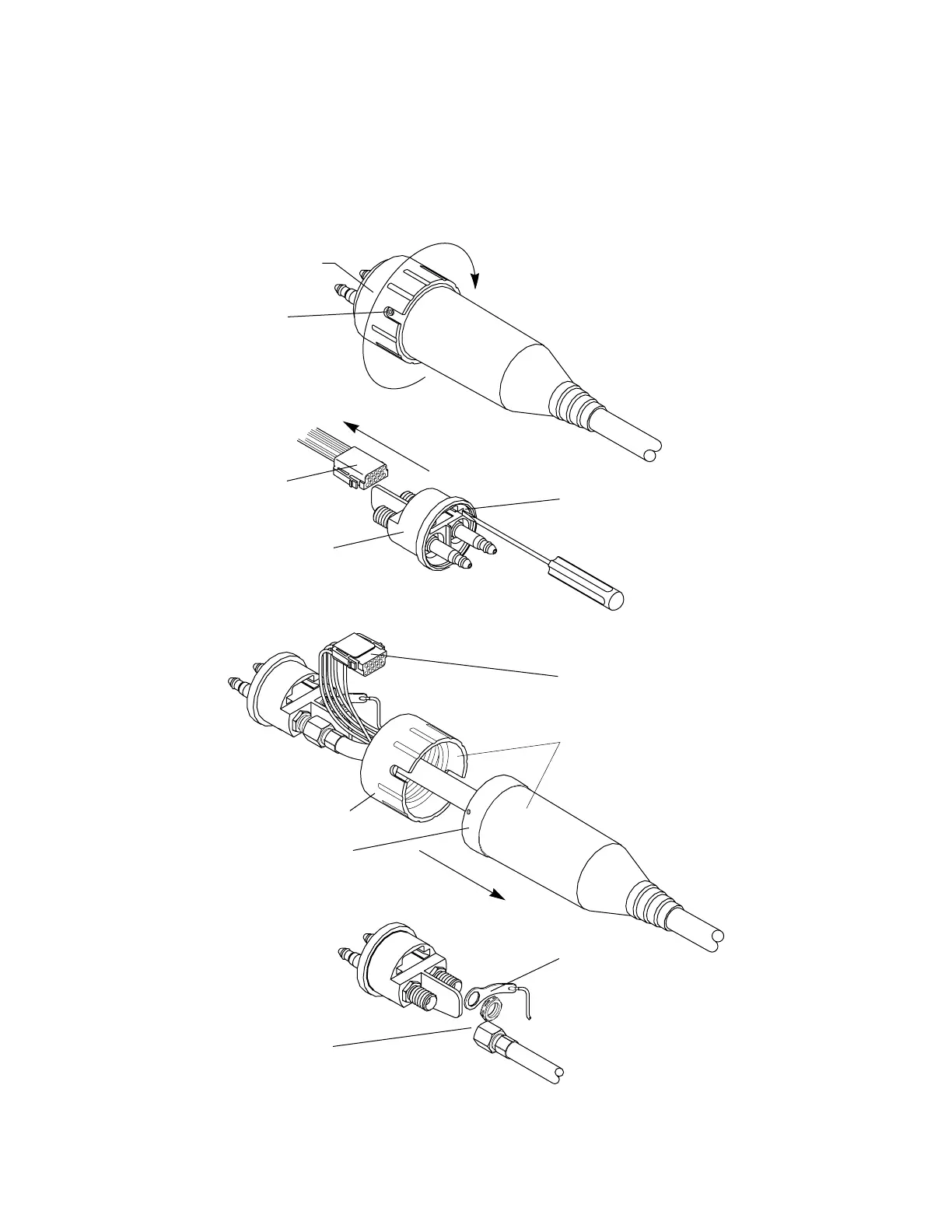

Figure 5-G Disassembling the Quick Disconnect Fitting
NOTE - PCH/M-35 Quick Disconnect Replacement Kit
(Catalog No. 9-5836) includes all quick disconnect items.
Rotate outer retaining
ring to access all
three set screws
Outer Retaining
Nut
Set Screw
(Three)
Gently press tabs inward
and remove connector
(Reverse View)
Slide boot and retaining
ring back over leads to
expose leads connections
Negative/Plasma
Lead Connection
Pilot Lead
Connection
Quick Disconnect
Body (Torch End)
Signal Pin Connector
Outer Retaining Nut
Signal Pin
Connector
Inner Retaining Ring
A-00013
