C2225
C2275
C2224
C2223
7-21

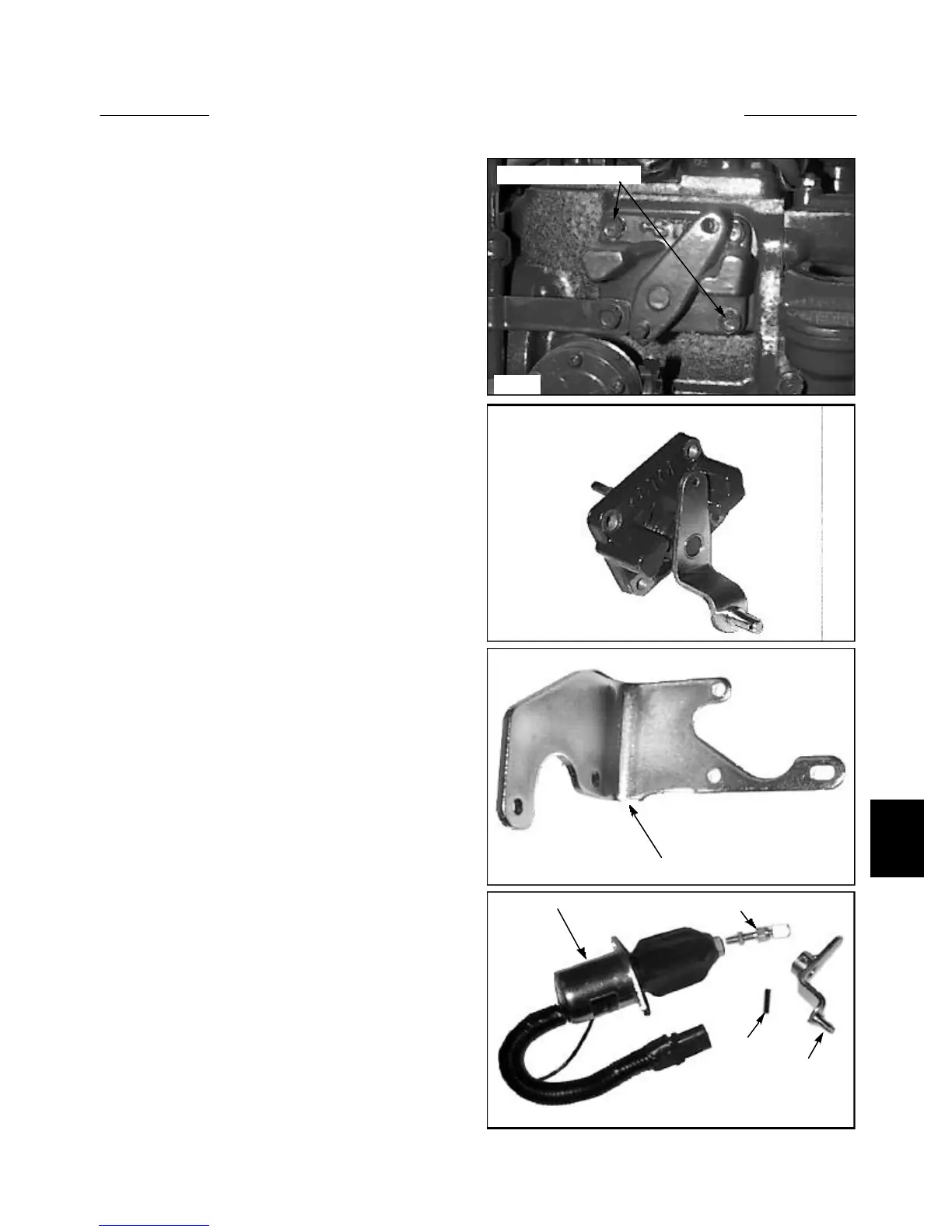

Stop Solenoid
The engine stop solenoid requires special attention
when replacing. If not properly adjusted, the stop sole-
noid will fail prematurely.
1 Remove the 4 bolts retaining the engine stop cover
and lever assembly. (fig. C2225) Remove the cover.
2 Knock out the roll pin retaining the stop lever to the
stop cover.
3 Replace the stop lever with the new stop lever and
roll pin provided in the stop solenoid kit. (fig. C2275)
Attach the stop lever so the end with the protruding pin is
on the bottom of the stop cover as installed to the engine.
4 Replace the stop cover to the engine using the new
gasket provided in the stop solenoid kit.
Solenoid Swivel
Lever
Pin
Mounting bracket
6 Install the jam nut and lock washer to the swivel, and
screw the swivel into the solenoid. (fig. C2224)
5 Using the washers and bolts provided in the kit,
attach the solenoid mounting bracket and stop cover to
the engine. (fig. C2223, C2276) Flat washers are provid-
ed to space the solenoid mounting bracket away from the
stop cover and provide a “square” and level point for the
stop solenoid to mount. Do not bend the mounting brack-
et to fit.
Stop lever cover bolts
Install new stop lever and roll pin
ENGINE REPLACEMENT 7.3
