Thomas T175 - Axle Assembly 3.5

3
3-8

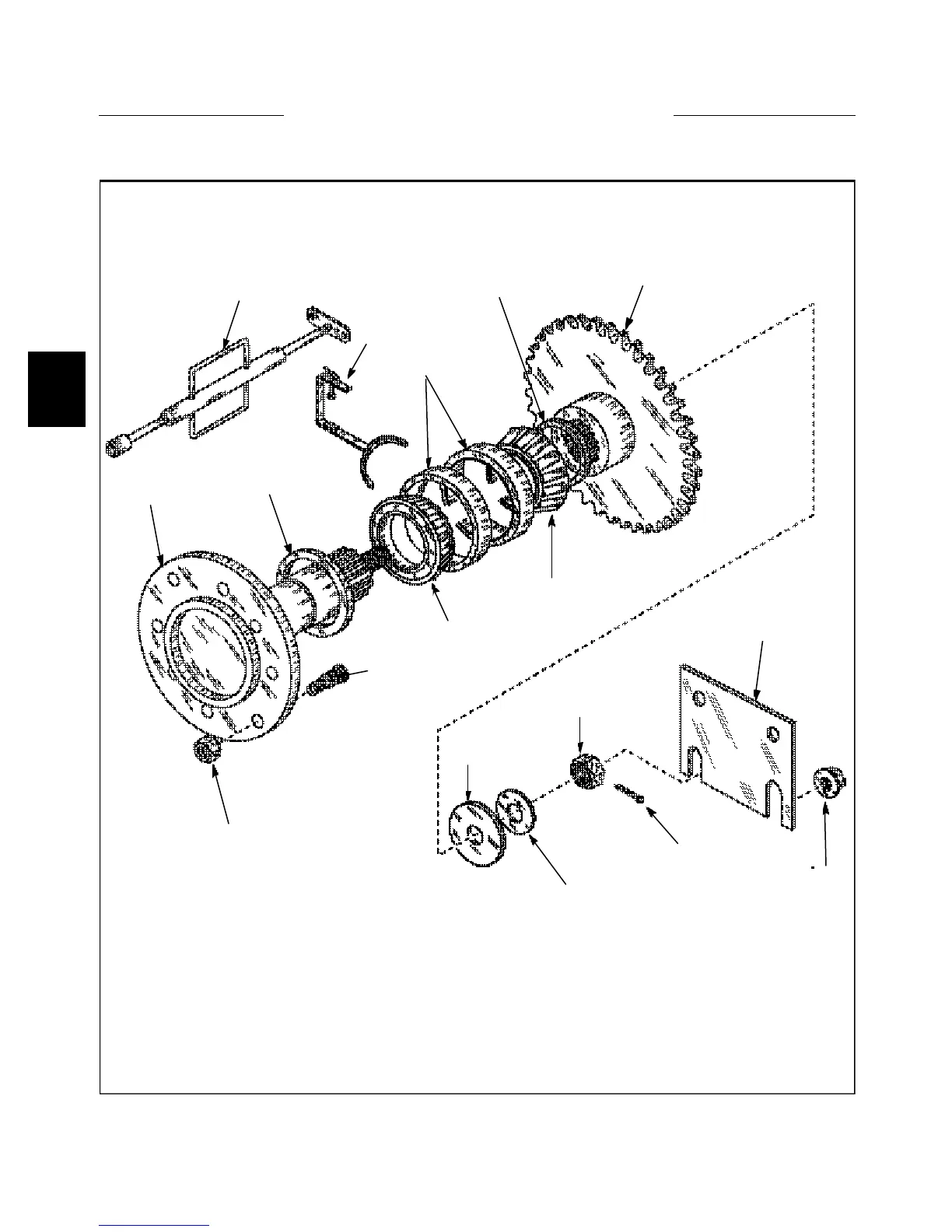

AXLE ASSEMBLY 3.5
C3235
10
16
7
9
8
11
6
5
12
4
13
3
2
1
Axle Assembly
15
14
7
1. Axle Puller
2. Seal Installation Tool (2)
3. Axle Ass’y
4. Seal
5. Bearing, Cup
6. Plate, Axle Spacer
7. Bearing, Cone
8. Sprocket
9. Wheel Nut
10. Wheel Stud
11. Plate, Axle Washer
12. Washer, Axle
13. Castle Nut
14. Cotter Pin
15. Sheet, Rear Cap
16. Nut, Hex Flange
