Adjustments
The throttle system can be adjusted for total travel
(stroke).
The throttle cable can be set and locked in the full throttle
position.
TO CHECK THETHROTTLE TRAVEL:
1 Raise the boom arms, engage the boom supports and
shut off the engine.
2 Open the rear door and locate the engine lever and
throttle rod linkage.
3 Stroke the throttle lever in the full forward position.
The engine lever must touch the limiter bolt stops to
acquire full engine speed.
4 Stroke the throttle lever rearward until it stops. The
engine lever should touch the limiter bolt to acquire the
engines proper low idle speed.
5 Adjust the rod end of the engine lever and throttle
linkage to get the full range of required travel for the
engine lever to touch the limiter bolts.

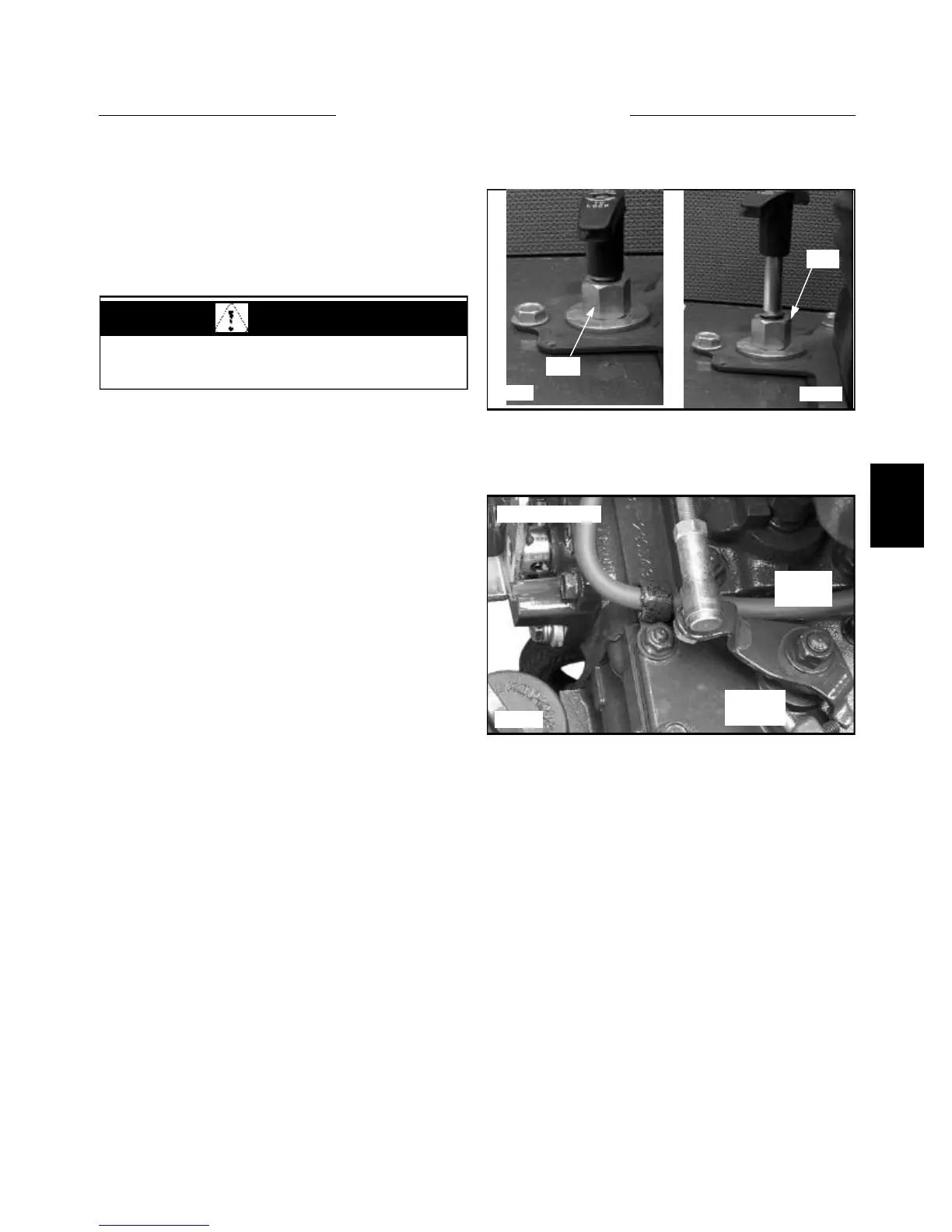

Bolt
Low Idle
position
Hi Idle
position
Throttle control
C3567
THROTTLE 4.4
Bolt
C3568
C3569
WARNING
Never work under the boom arms without the boom
supports engaged.
