CONTROL VALVE 1.3
Testing and Adjusting the Relief Valve Pressure
Hoses and gauges required for this test must be capable
of withstanding 5000 PSI (207 Bar) continuous pressure,
and hydraulic flow meter capable of measuring 30 gallons
per minute. (113 LPM) (fig. C3432) This test also
checks the status of the gear pump capacities.
Pressure fluctuations may be caused by restricted oil flow
through the relief valve. The relief valve filter may need
serviced as outlined in the control valve disassembly
section on pages 1-9 through 1-13.
1 Install the flow meter / pressure tester to the auxiliary
hydraulic quick couplers. The female coupler attached to
the loader provides the power out when the auxiliary
control is engaged. (fig, C3646) Connect the flow meter
and pressure gauge inlet side to match the power out of
the female auxiliary coupler to prevent meter and gauge
damage. Be sure to connect a return line to the male
auxiliary hydraulic quick coupler. (fig. C3433)
2 Start the engine and engage the auxiliary hydraulic
system. Increase the engine speed to full operating RPM.
(See Section 7 for checking and adjusting engine speed to
2800 RPM plus or minus 25 RPM)
3 Turn the flow control valve on the flow meter to
restrict the oil flow down to 2 GPM. (7.5 LPM) As you
are turning the flow control valve, watch the pressure
gauge and make sure it does not go over 3000 PSI.(207
Bar) Stop further adjustment immediately if the reading
goes over this setting. Shut off the auxiliary hydraulic
system and shut off the engine. Move to step 6 to make
initial setting.

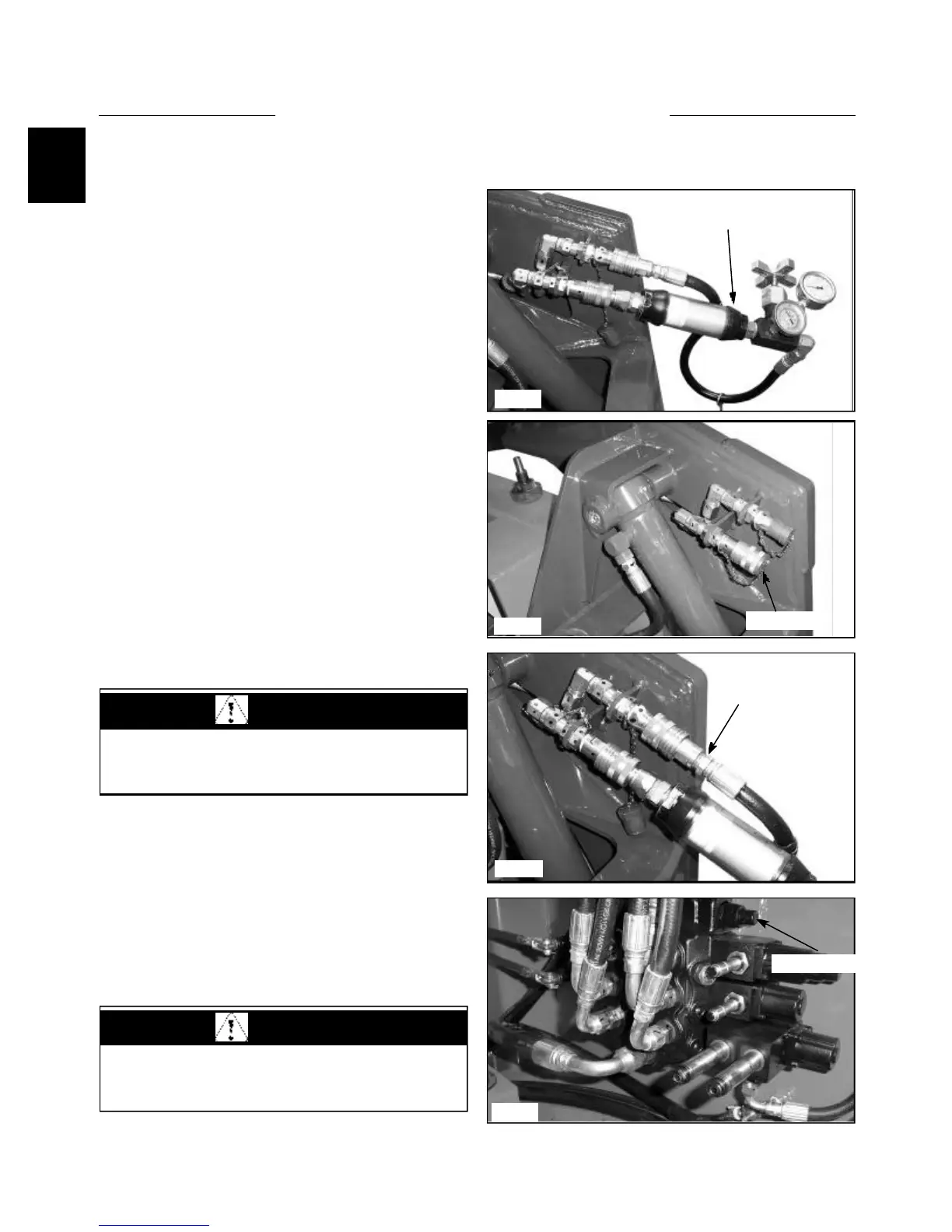

C3432
C3646
C3433
C3434
Relief valve
Pressure out
Pressure return
1-14
Flow Meter/Pressure Tester
WARNING
To prevent personal injury or damage to the loader,
do not adjust the relief valve while the engine is
operating.
CAUTION
Adjusting the relief valve setting too high may cause
damage to the gear pump.
