Thomas T175 User Manual

STEERING 4.1
4

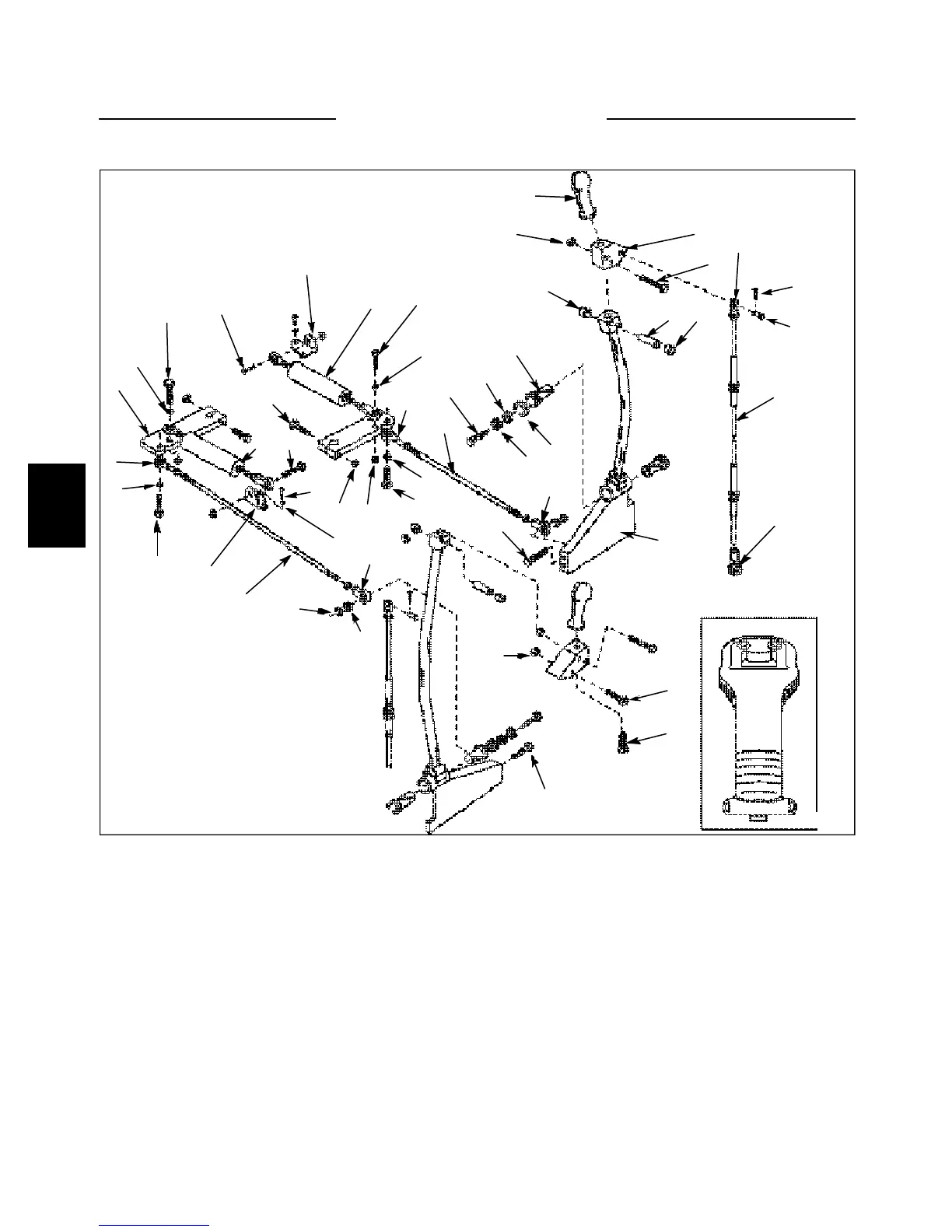

Control Levers 175
1 Handle, Ergonomic Plain
Handle, Ergonomic w/Rocker Switch
2 Lever Base Welded Ass’y
3 Bolt, Hex.
4 Jam Nut, Locking
5 Clevis (Hand Control Loaders)
6 Cotter Pin (Hand Control Loaders)
7 Clevis Pin (Hand Control Loaders)
8 Flange Bushing
9 Tube, Handle Spacer
10 Control Lever, L.H.
Control Lever, R.H.
11 Cable, Push-Pull (Hand control Loaders)
12 Rod End Ass’y (Hand Control Loaders)
13 Bolt, Hex
14 Bolt
15 Washer, Lock
16 Washer, Flat
17 Washer, Fender
18 Flange Bushing
19 Hydroback Ass’y
20 Bar, Pintle Linkage L.H.
21 Bar, Pintle Linkage R.H.
22 Bolt, Hex
23 Hex Nut, Nylok
24 Hydroback Mount
25 Bolt
26 Washer
27 Pintle Lever Ass’y
28 Bolt
29 Nut
30 Washer, Lock
31 Nut, Nylok
1
2
3
31
30
29
28
27
26
25
24
4
5
6
7
8
9
10
11
12
13
14
15
16
32
17
18
19
20
21
22
23
C3227
4-2
8
13
13
30
32
33
34
30
13
19
33
36
35
24
37
36
36
37
36
32 Rod End Ass’y, Female
33 Rod End Ass’y, Female
34 Nut, Nylok
35 Bolt, Ergonomic Handle (w/Hole)
Bolt, Ergonomic Handle (No Hole)
36 Bolt, Hex
37 Washer

Thomas T175 Specifications

General

Brand	Thomas
Model	T175
Category	Compact Loader
Language	English
