3-14
AXLE ASSEMBLY 3.5
1 Remove any attachment, raise the boom arms and
engage the boom locks.
2 Raise and block. Clear the side of the loader the
wheel studs are to be changed on.
3 Remove the wheel the studs are to be replaced on.
4 Strike the stud with a hammer to remove from the
axle flange. (fig. C3820)

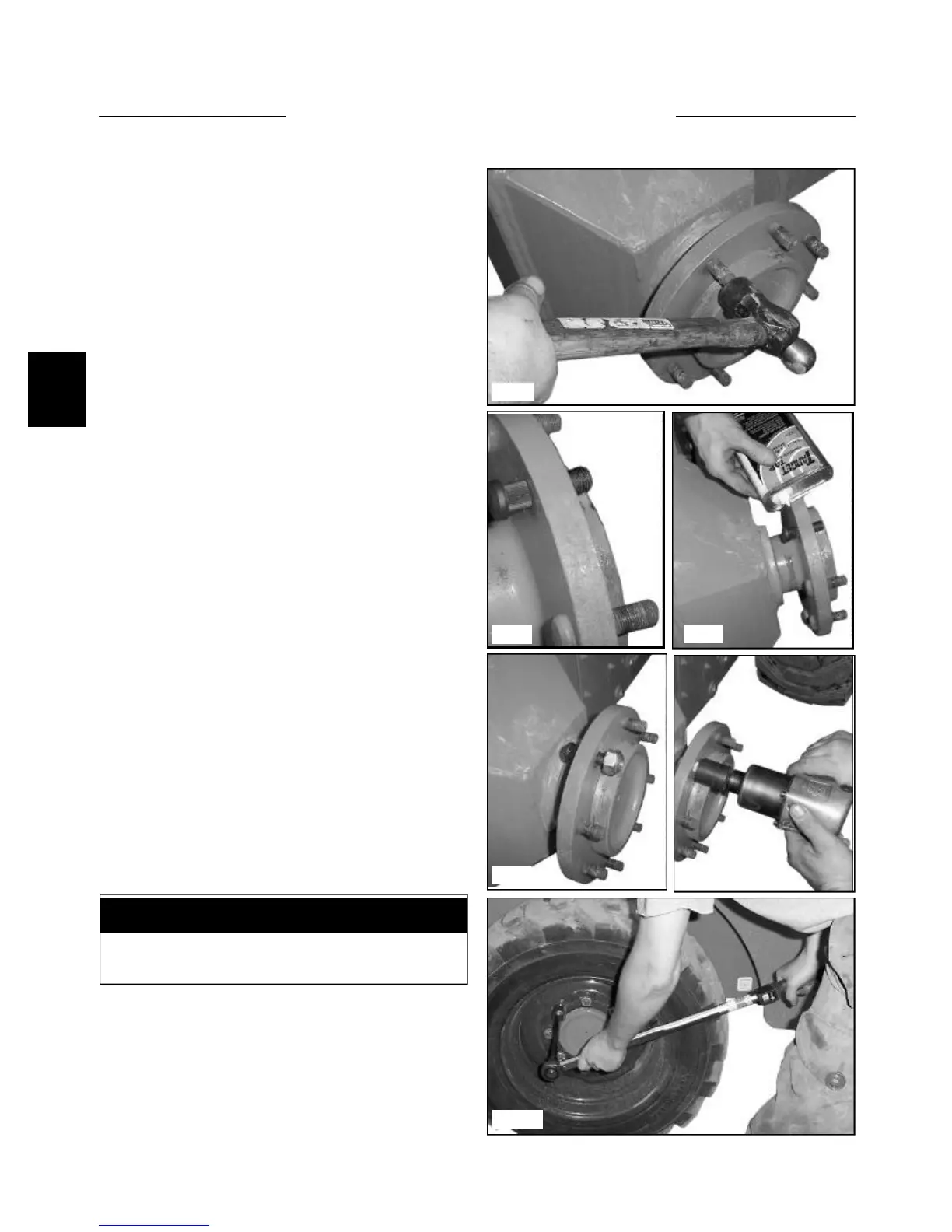

Axle Stud Replacement
C3820
C3822
C3824
7 Place a wheel nut inverted on the stud and use it to
draw the stud into place in the axle flange as you tighten
it, (fig. C3824 & C3821) while tapping end of stud with
hammer.
8 Remove the wheel nut and disgard. Replace with
new wheel nut. (fig. C3497)
9 Replace the wheel and torque the wheel nuts to 100
to 110 lbs/ft. (135 to 149 nm)
5 Place a new stud in position behind the axle flange.
Line up the splines on the stud with the splines cut into
the axle flange. (fig. C3822)
6. Put a few drops of light oil on the stud spline. (fig.
C3823)
C3497
Torque the wheel nuts daily to prevent stud and/ or
wheel damage.
IMPORTANT
C3821
C3823
