6

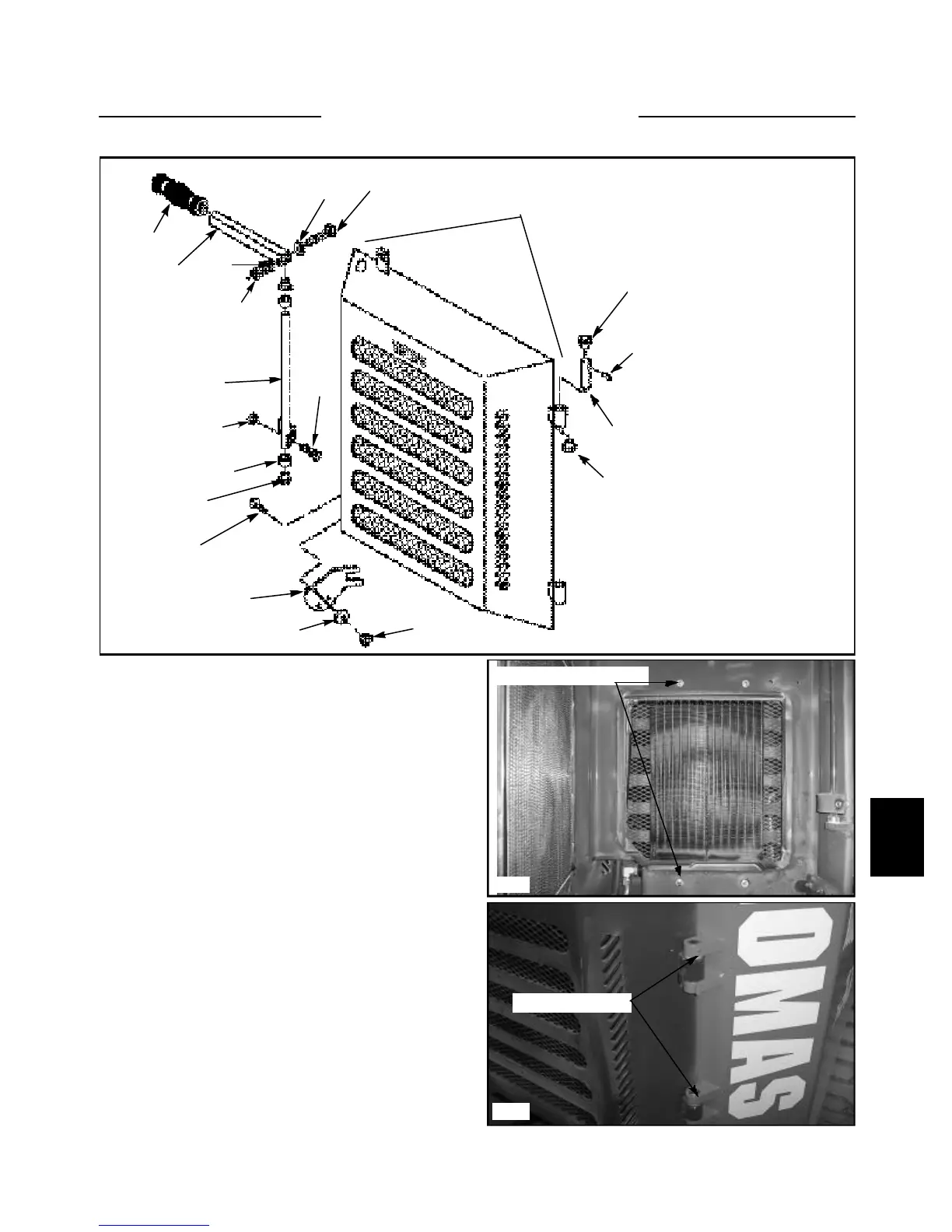

REAR DOOR 6.5
Removal
1 Open the rear door and remove the 4 nuts retaining
the door baffle and hydraulic oil cooler to the door. (fig.
C3608)
2 Attach chains to the rear door.
3 Using a hoist, raise the chains to take the weight of
the door off the pivot pins.
4 Remove the split pins in the door pivot pins. (fig.
C3609) Remove the pivot pins from the frame.
5 Replace any worn pivot bushings or pins as required.
6-9
C3609
C3608
C3197
Remove mounting nuts
Remove split pins
Installation
1 Replace the door to the frame in the reverse order
above.
2 Adjust the door guide plate so the rear door looks
level with the engine compartment cover, and the door
slides freely into the closed position.
3 Adjust the door latch linkage bolt to provide an even
fit around the outside of the door.
1 Rear Door Assembly
2 Bearing
3 Set Collar
4 Nut
5 Bolt
6 Rear Door Lock
Assembly
7 Lock Nut
8 Flat Washer
9 Handle
10 Lever Grip
11 Bolt
12 Bearing
13 Pivot Pin
14 Split Spring Pin
15 Bolt
16 Door Guide Plate
17 Flat Washer
18 Lock Nut
18
17
16
15
14
13
12
11
10
9
8
8
7
6
5
4
3
2
1
12
