Thomas T175 - Page 120

4

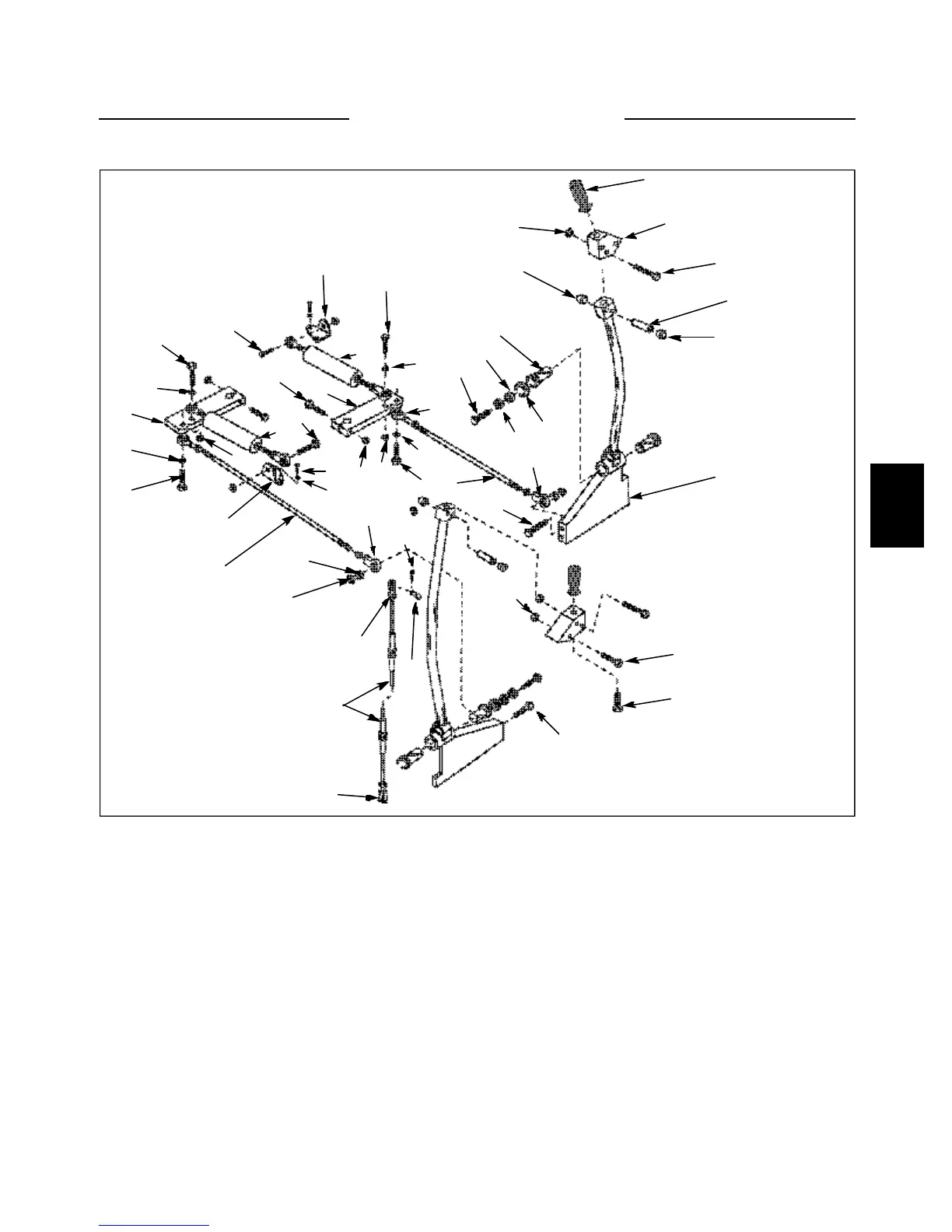

STEERING 4.1
Control levers 1700
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
28
17
18
19
20
21
27
22
24
25
26
23
C3300
4-3
5
8
12
13
13
13
19
29
30
31
30
32
30
34
36
36
24
27
36
33
34
35
32
36
1 Handle, Control
2 Lever Base Welded Ass’y
3 Bolt, Hex.
4 Jam Nut, Locking
5 Clevis
6 Cotter Pin
7 Clevis Pin
8 Flange Bushing
9 Tube, Handle Spacer
10 Control Lever, L.H.
Control Lever, R.H.
11 Cable, Push-Pull
12 Washer
13 Bolt, Hex
14 Bolt
15 Washer, Lock
16 Washer, Flat
17 Washer, Fender
18 Flange Bushing
19 Hydroback Ass’y
20 Bar, Pintle Linkage L.H.
21 Bar, Pintle Linkage R.H.
22 Bolt, Hex
23 Hex Nut, Nylok
24 Hydroback Mount
25 Bolt
26 Washer
27 Pintle Lever Ass’y
28 Bolt
29 Nut
30 Washer, Lock
31 Nut, Nylok
32 Rod End Ass’y, Female
33 Rod End Ass’y, Female
34 Nut, Nylok
35 Bolt, Hex
36 Washer
