1-28
CONTROL VALVE 1.3
Disassembly / Repair 1700
(con’t)

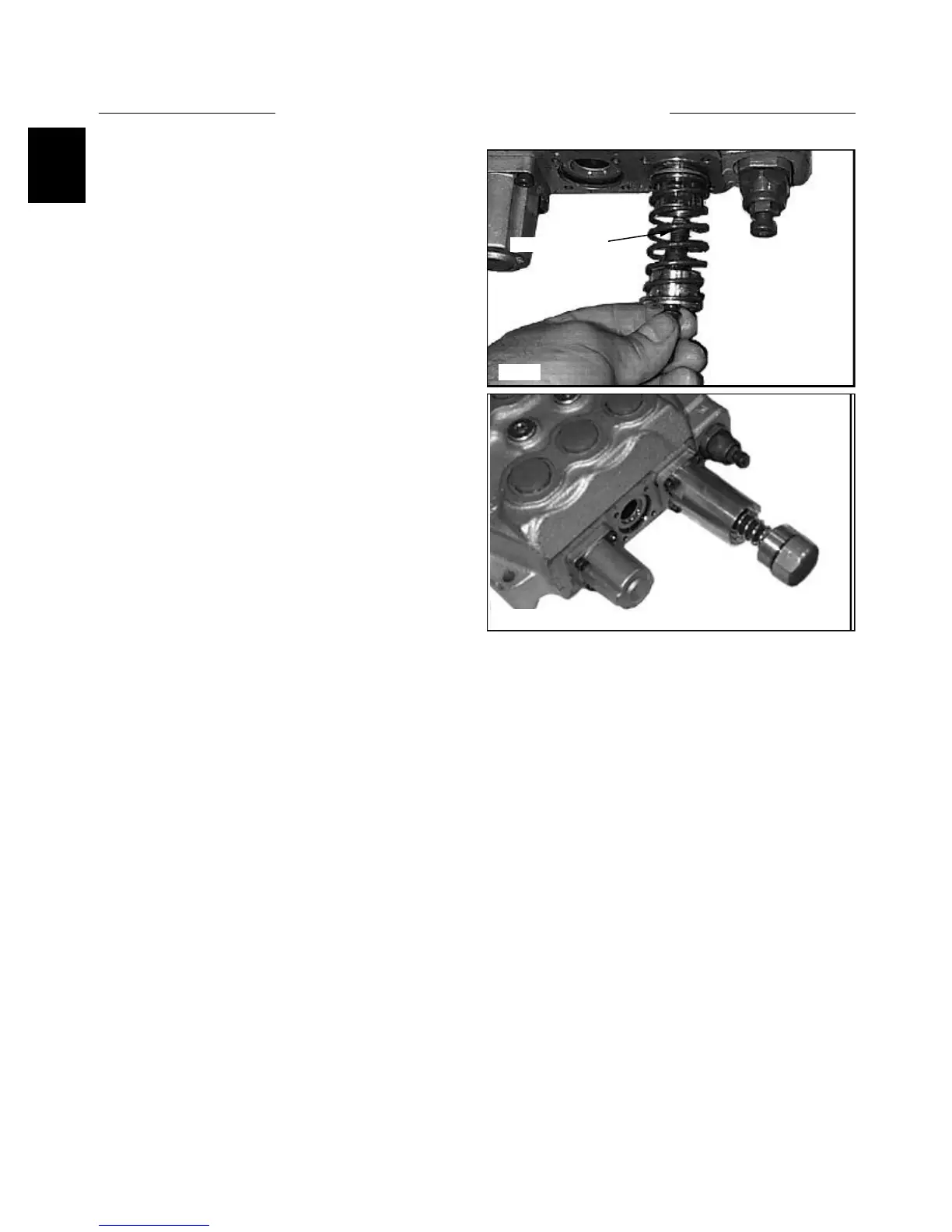

10 When installing the detent to the control valve spool,
apply Loctite type 542 to the threads. Tighten the detent
to the spool at 24 Nm (17.7 lbs / ft). (fig. C2254)
11 Install the spring return / centering cover and tighten
the mounting screws evenly to 6.6 Nm (4.9 lbs / ft).
Install the end cap to the cover and tighten to 9.8 Nm
(7.2 lbs / ft). (fig. C2258)
C2254
Apply Loctite 542
C2258
Detent spring and cap
