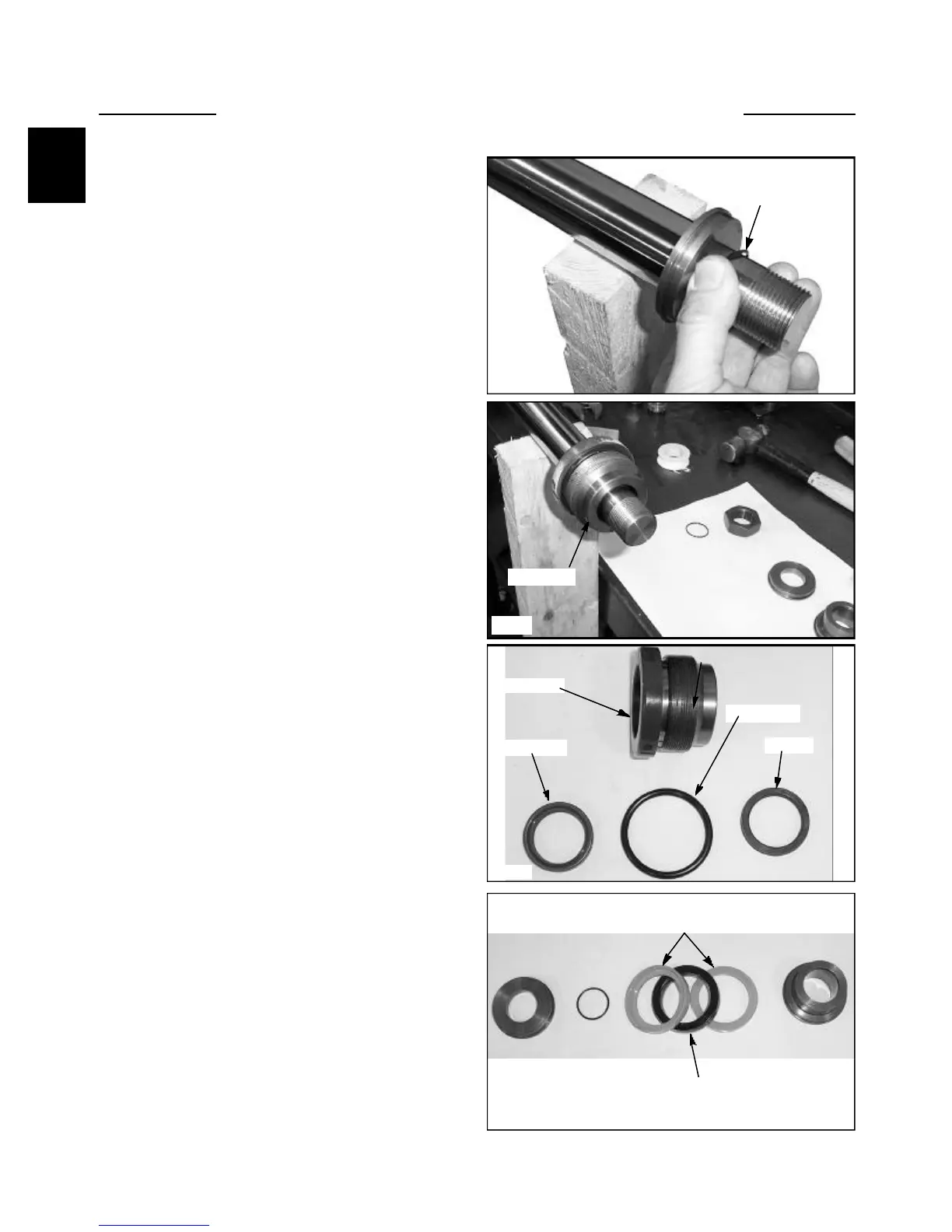

11 Remove and discard the wear rings and piston seal
from the piston assembly. (fig. C3735)
10 Remove and discard the wiper seal, rod seal and o-
ring seals and teflon back up washer, (if used), from the
gland nut assembly. (fig. C3734) NOTE: Some seal
designs may vary from illustration
9 Remove the gland nut assembly from the cylinder
rod. (fig. C3733)
8 Depending on the design of the rear piston, non
threaded type, remove and discard the o-ring seal from
the end of the cylinder rod. (fig. C3732)
C3733
C3734
Wiper seal
Gland o-ring
Rod seal
Gland nut
O-ring seal
Gland nut
HYDRAULIC CYLINDERS 1.4
Wear Rings
Piston Seal
