2-32
DRIVE MOTOR 2.12
IMPORTANT
When making repairs to the hydraulic system, keep
the work area and parts clean. Use caps and plugs
on all open line and ports.
Parts Illustration
TMT 500 FLV
1. Bolts
2. End Cover
3. Flushing Spool
4. Name Plate
5. Spacer
6. Springs
7. Restrictor
8. Spring Washer
9. O Ring
10. O Ring
11. Ring
12. Balance Plate
13. O Ring
14. Disk Valve
15. Retaining Ring
16. Valve Drive shaft
17. Channel Plate
18. Guide Pins
19. O Ring
20. Gear Wheel
21. Cardon Shaft
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
C4168

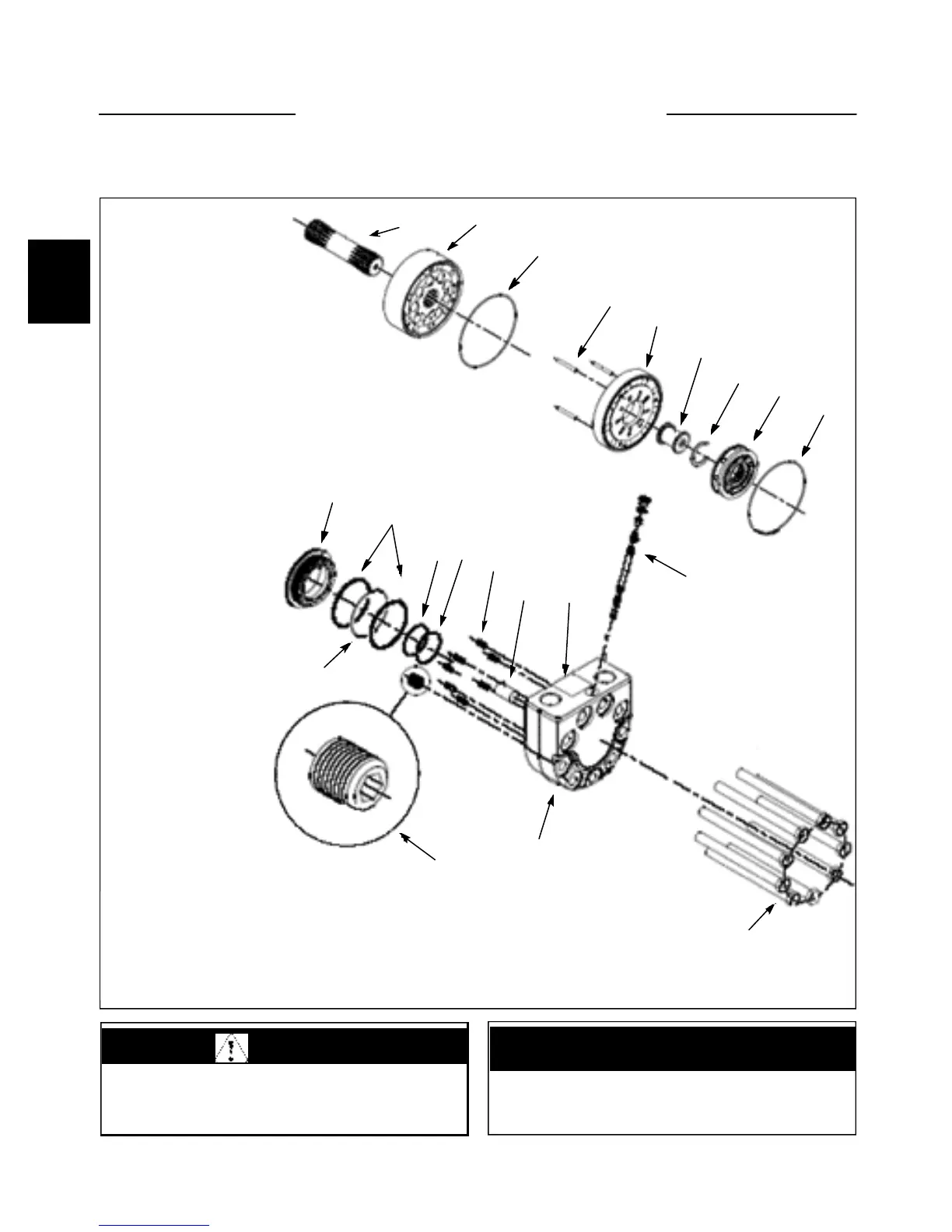

Fig. C4168 shows an exploded view of the hydraulic
torque motor. Before disassembling the torque motor,
clean the outer surface of all loose dirt and grease. Dry
with compressed air. Be sure all openings are plugged to
prevent dirt from entering the torque motor.
WARNING
To avoid eye injury, use safety goggles when
cleaning with compressed air.
