THOMSON TR-069 - IP Ping Diagnostics Test

E-DOC-CTC-20071119-0003 v1.0
54
4| Monitoring and Di
agnostics
4.3 IP Ping Diagnostics Test
Introduction
The IGD data model contains the object “InternetGatewayDevice.IPPingDiagnostics.”.
This object provides access to an IP ping diagnostics test. Using TR-069, the ACS can initiate the test on the
CPE. Afterwards, the CPE reports the completion of the test to the ACS. This allows the ACS to ask for the
results of the test.
Message flow

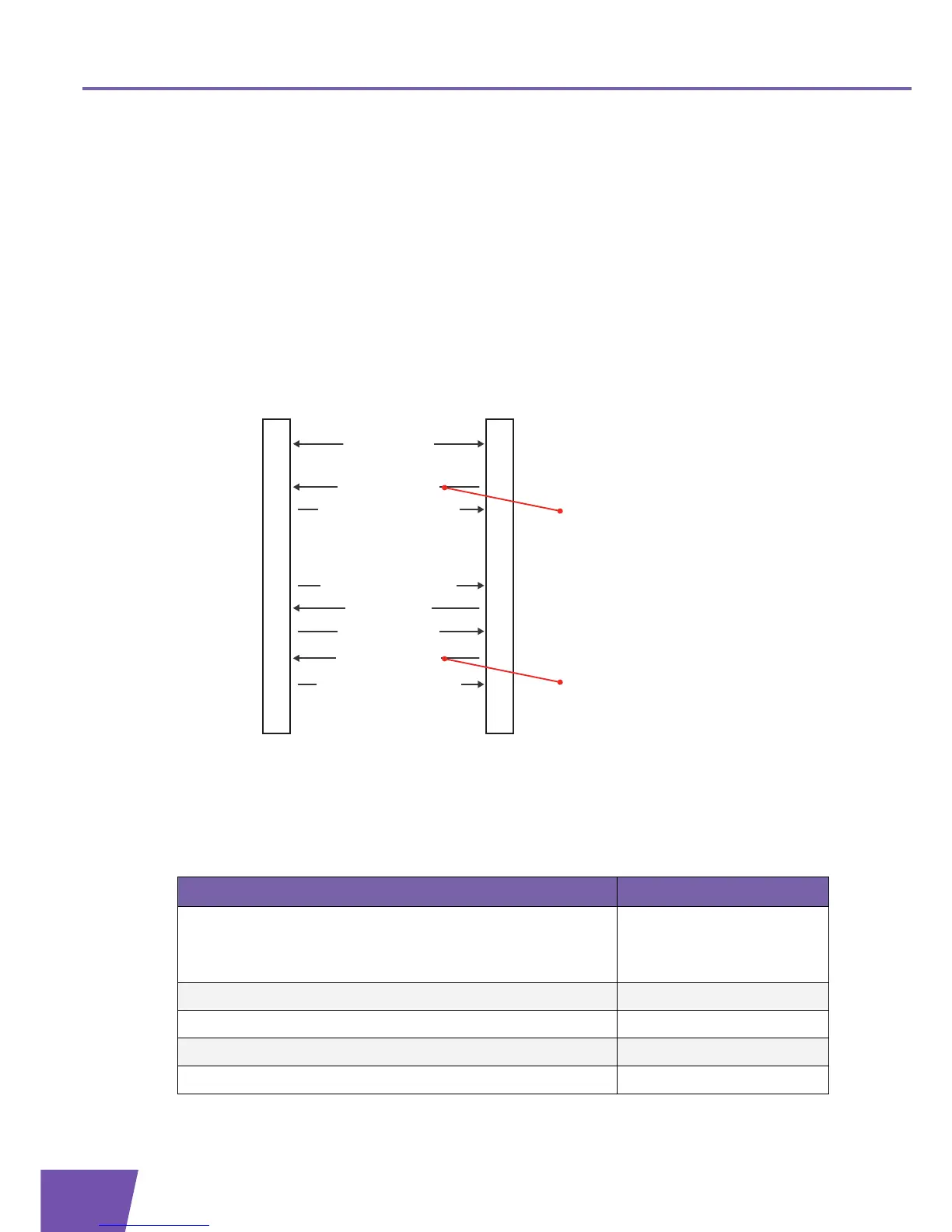

Following illustration shows a possible message flow for the IP ping diagnostics test:
Example: parameter values
For example, following parameter values can be used:
 Starting the test: the SetParameterValues RPC (message 1 in preceding illustration) contains following
name-value pairs in its ParameterList argument:
ACSCPE
Transaction session
6) Inform
(Event 8 Diagnostics Complete)
7) InformResponse
4) Close connection
2) Apply changes
10) GetParameterValuesResponse
Start the Test
1) SetParameterValues
3) SetParameterValuesResponse
8) HTTP POST (empty)
5) IP ping diagnostics test
9) GetParameterValues
Obtain the Test Results
...
...
...
Name Value
InternetGatewayDevice.IPPingDiagnostics.Interface InternetGatewayDevice.
LANDevice.1.
LANHostConfigManagement.
IPInterface.2
InternetGatewayDevice.IPPingDiagnostics.Host 192.168.1.64
InternetGatewayDevice.IPPingDiagnostics.NumberOfRepetitions 4
InternetGatewayDevice.IPPingDiagnostics.Timeout 5 (milliseconds)
InternetGatewayDevice.IPPingDiagnostics.DataBlockSize 32 (bytes)
