6.5 Queue Management
QueueManagement data model
The IGD data model on the Thomson Gateway contains the object
“InternetGatewayDevice.QueueManagement.” for the support of QoS provisioning.
This object contains the following multi-instance objects:
 Classification.[i]
 Queue.[i]
 Policer.[i]: only supported on a number of products
Vendor specific parameters
There are no vendor specific parameters.
Message flow

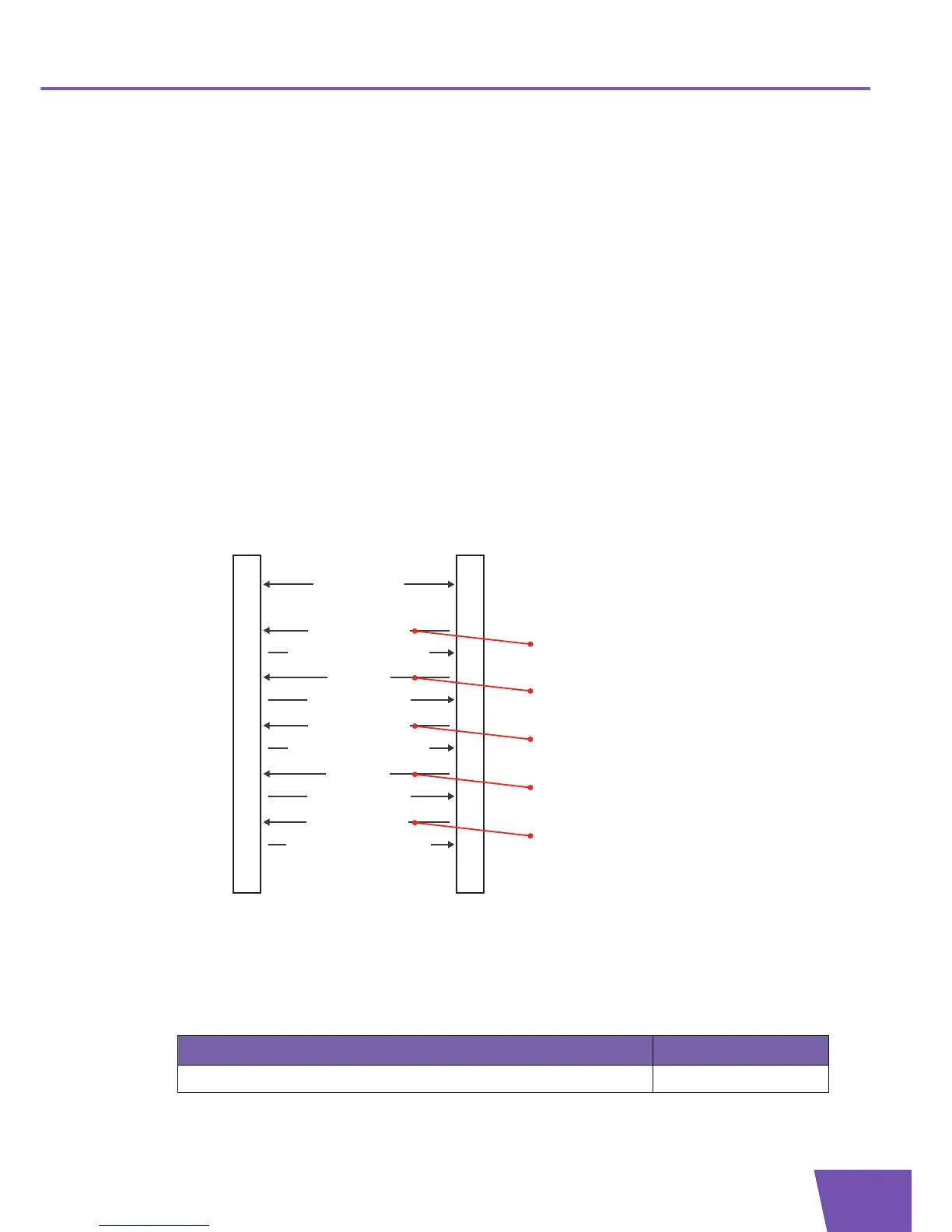

Following illustration shows a possible message flow for QoS provisioning:
Example: parameter values
For example, following parameter values can be used:
 Configuring a queue table entry: the SetParameterValues RPC (message 1 in preceding illustration)
contains following name-value pairs in its ParameterList argument:
ACSCPE
Transaction session
...
8) Apply changes
Configure the Classification table entry
7) SetParameterValues
9) SetParameterValuesResponse
Create a Classification table entry
4) AddObject
6) AddObjectResponse
5) Apply changes
Create a Policer table entry
10) AddObject
12) AddObjectResponse
11) Apply changes
14) Apply changes
Configure the Policer table entry
13) SetParameterValues
15) SetParameterValuesResponse
...
2) Apply changes
Configure a Queue table entry
1) SetParameterValues
3) SetParameterValuesResponse
Name Value
InternetGatewayDevice.QueueManagement.Queue.6.QueueInterface WAN
