14-4
Twist Owner’s Manual
OM_TWIST_0811RevA
CHAPTER 14: ADJUSTABLE SEAT WIDTH AND DEPTH
9C. If you have a ip-back footrest or a high mount ip-back footrest (with any type of footplate) as shown in Figure
14-9:
Rotation
Stop Clamps
Rotation
Bracket
Rotation
Bracket

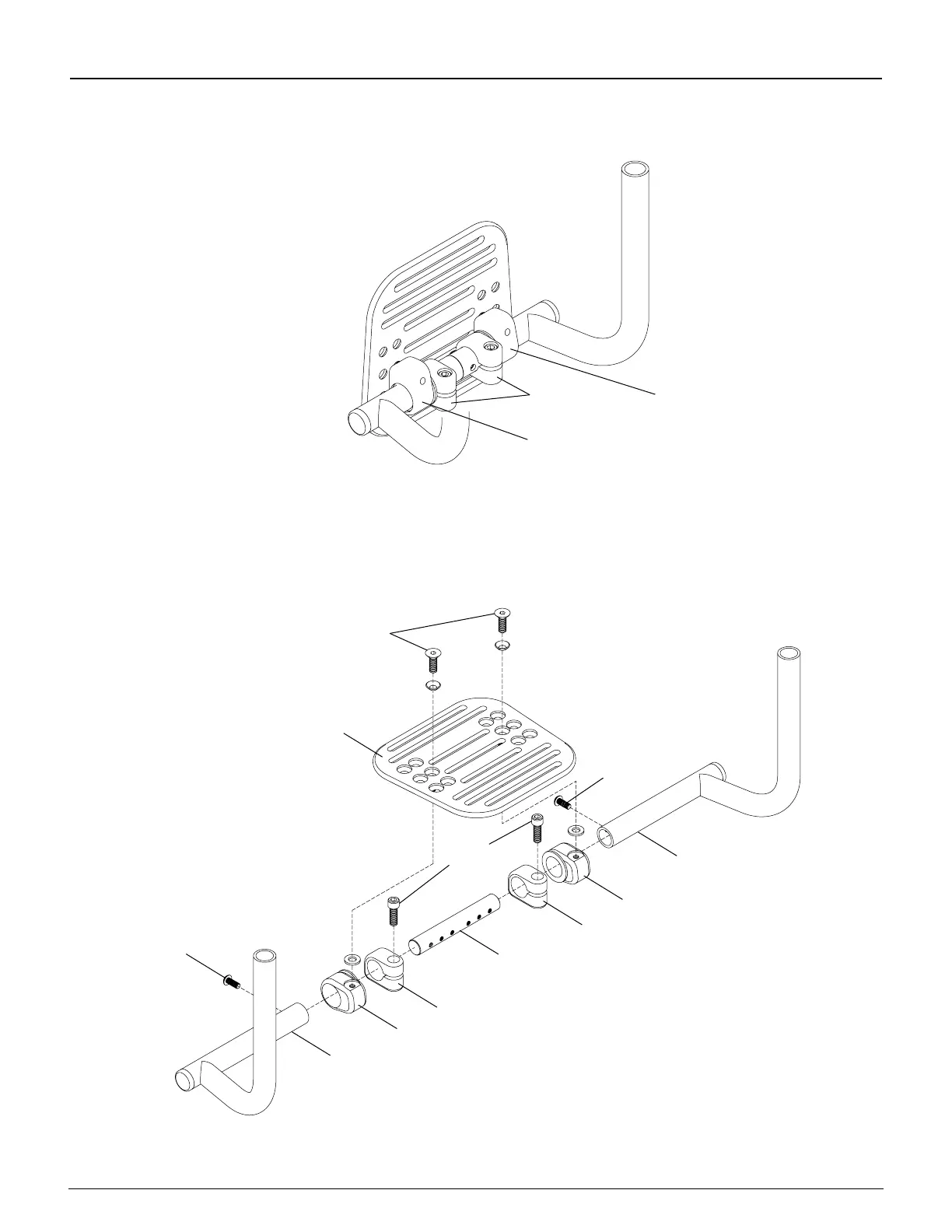

Figure 14-9
Location of Rotation Stop Clamps on Small Footrest
a. Remove the footrest extensions from the frame. See “Angle Adjustable Footrest (Standard or CAT)—Adjusting
the Height/Replacing” on pages 3-1 to 3-2.
b. Remove the Allen screws that secure the footplate to the rotation brackets. See Figure 14-10.
Allen Screws
Rotation Bracket
Rotation Bracket
Rotation Stop Clamps
Rotation Stop Clamps
Footrest Spacer
Footplate
Footrest Extension
Footrest Extension
Allen
Screw
Allen
Screw
Figure 14-10
Expanding the Footrest
Allen
Screw
To Next Page
