CHAPTER 14: ADJUSTABLE SEAT WIDTH AND DEPTH

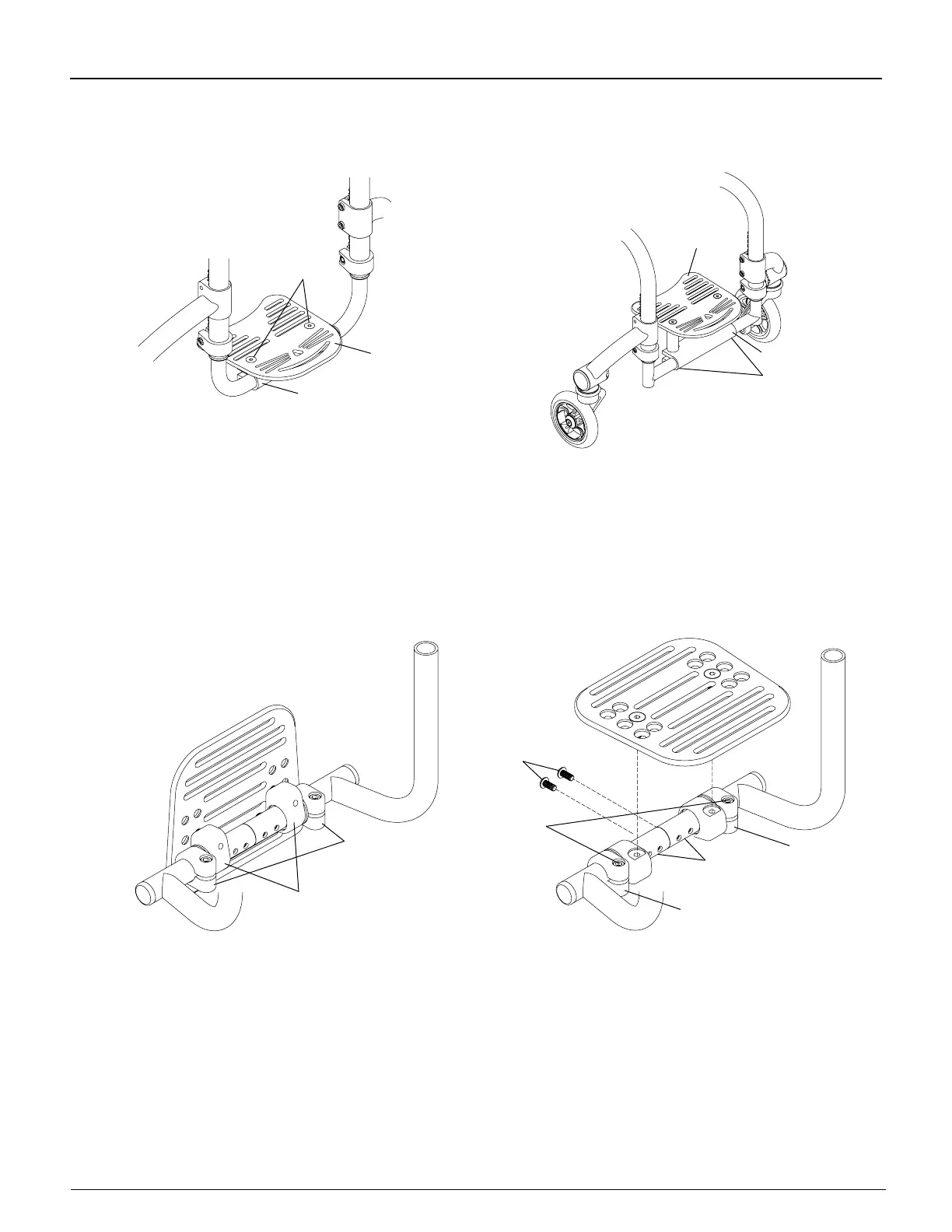

9A. If you have an angle adjustable or high mount angle adjustable footrest, loosen the two Allen screws that secure
the footplate to the clamp. See Figures 14-5 and 14-6.
Figure 14-6
High Mount Angle Adjustable
Figure 14-5
Angle Adjustable
Allen
Screw
Allen
Screw
Clamp
Clamp
Footplate
Footplate
9B. If you have a ip-back footrest or a high mount ip-back footrest (with any type of footplate) as shown in
Figure 14-7:
a. Loosen, but do not remove, the Allen screws in the two rotation stop clamps. See Figure 14-8.
b. Remove the Allen screws that secure the footrest extensions to the footrest spacer (located inside the footrest
extensions). See Figure 14-8.
Figure 14-7
Location of Rotation Stop Clamps on Small Footrest
Rotation
Brackets
Rotation
Stop Clamps
Figure 14-8
Expanding the Footrest Spacer
Allen
Screws
Footrest
Extensions
Rotation
Stop Clamp
Rotation
Stop Clamp
Allen
Screws
To Next Page
