TiLite Twist - Page 98

14-2
Twist Owner’s Manual
OM_TWIST_0811RevA
CHAPTER 14: ADJUSTABLE SEAT WIDTH AND DEPTH
7. If your backrest includes the backrest spacer, remove both Allen screws, washers and locknuts on the backrest
spacer. See Figure 14-2.
If your backrest includes the push handle mount clamp, loosen but do not remove Allen screws 1 and remove
Allen screws 2. See Figures 14-3.

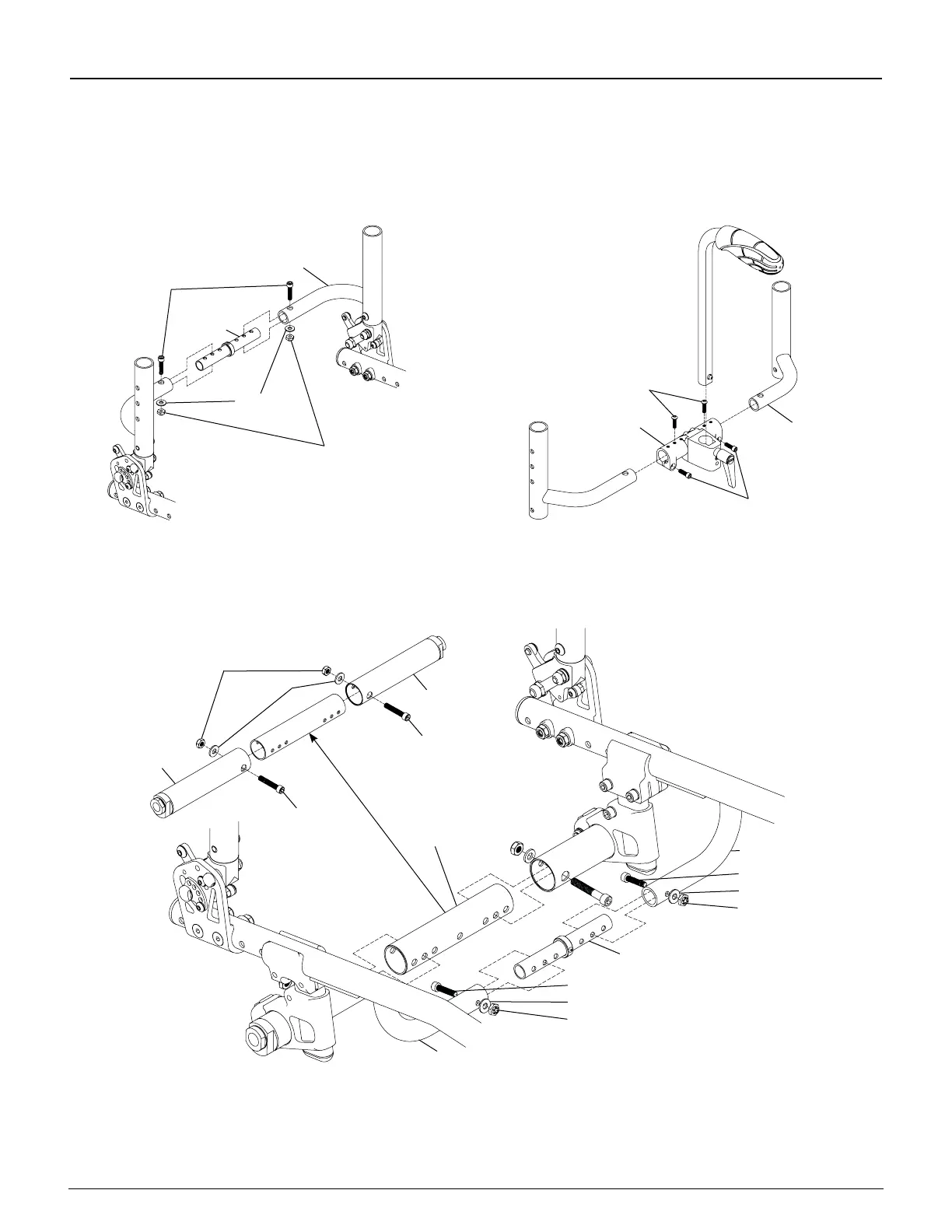

Figure 14-3
Backrest with Push Handle Clamp
Figure 14-2
Backrest with Spacer
Allen
Screws 1
Allen
Screws
Locknuts
Washers
Allen
Screws 2
Backrest
Spacer
Backrest
Rigidizer Bar
Backrest
Rigidizer Bar
Push Handle
Mount Clamp
8. Remove both Allen Screws, washers and locknuts on the seat tube spacer and camber tube spacer. See Figure
14-4.
Camber
Tube
Spacer
Seat Tube Spacer
Allen Screw
Allen Screw
Washer
Washer
Locknut
Locknut
Allen
Screw
Allen
Screw
Washers
Locknuts
Figure 14-4
Seat Tube Spacer and Camber Tube Spacer
Camber
Tube
Camber
Tube
Seat Tube
Seat Tube
