31
6 ELECTRICAL SYSTEM
IMPORTANT!
If welding must be performed on the machine, you
MUST turn the main switch off and disconnect the
multi-connector of the control box!
IMPORTANT!
During any work on the electrical system,
turn the main switch off to prevent a short circuit.

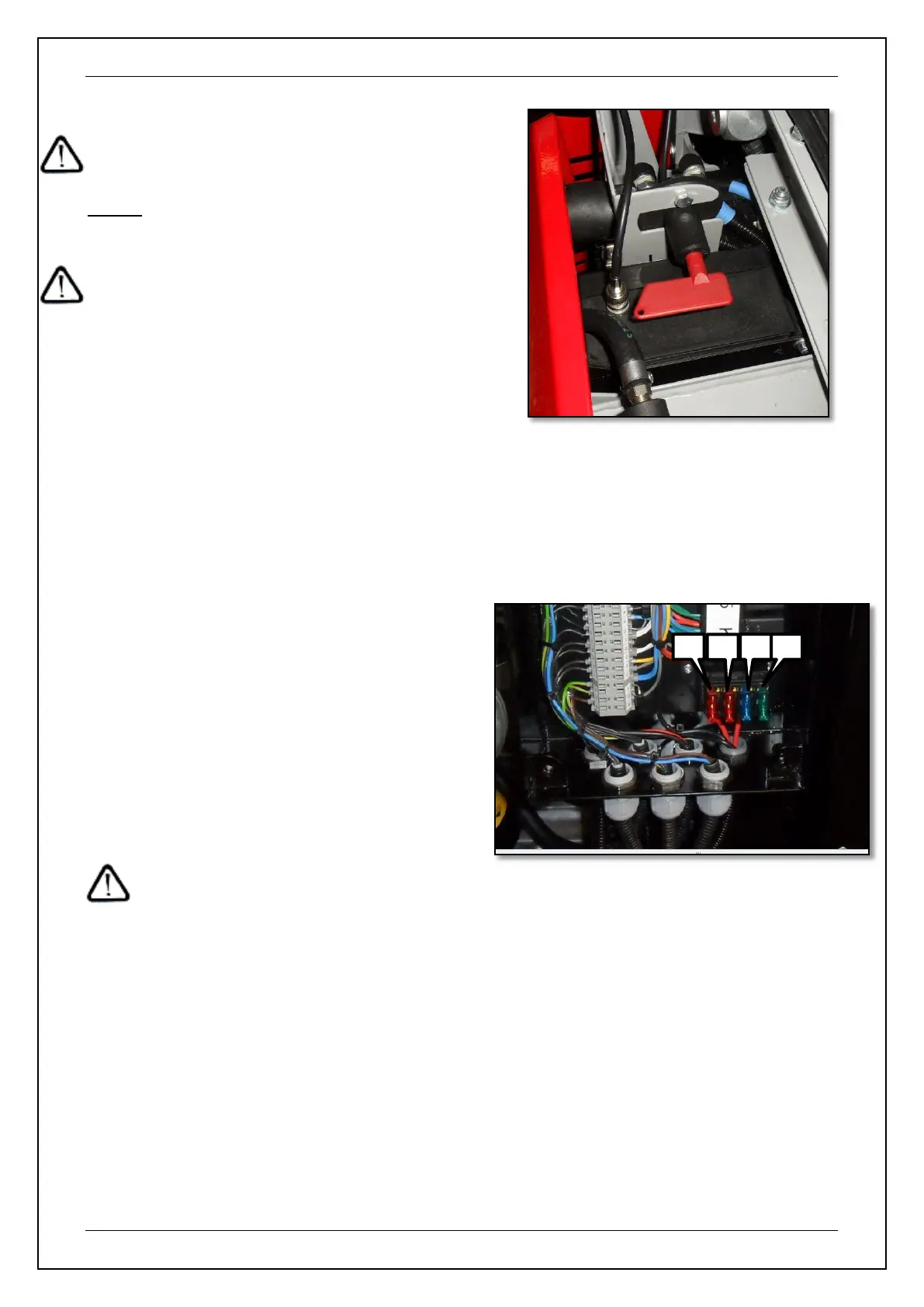

6.1 Main switch
The power switch is located under the top protective cover on the left in the engine compartment.
The main switch interrupts the grounding (÷) between the battery and the engine.
6.2 Fuses
The fuses are located in the electrical cabinet
Fuses:
1: Starter (10A)
2: Electrical cabinet (10A)
3: NBB control (15A)
4: Cooling fan (30A)
IMPORTANT
Never replace fuses with fuses that have higher amperage.
There is always a cause for a blown fuse.
Before fitting a new fuse, determine the cause and remove the problem.
