Timan RC-1000 - Component Placement

4

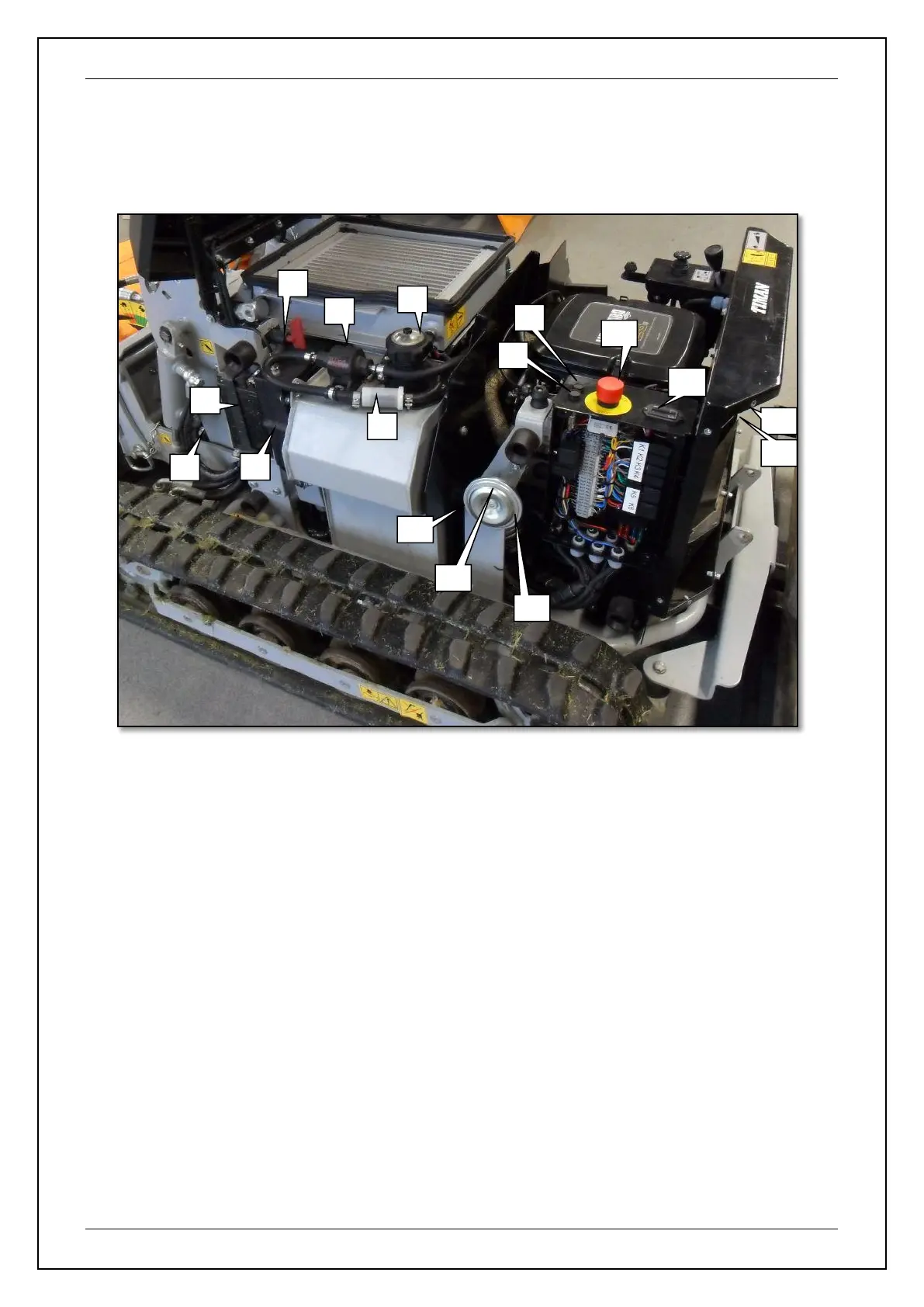

1.1 Component placement
1
2
13
4
12
5
10
3
14
7
6
11
8
9
15
16
1: Main switch.
9: Oil temperature warning
2: Battery 12 V 18 Ah
10: Oil filter
3: Safety sensor
11: Emergency stop
4: NBB control unit
12: Operating hours counter
5: Fuel pump
13: Tilt sensor
6: Fuel filter
14: Engine oil cooler
7: Tank cap/tank gauge
15: Oil pressure sensor
8: Oil pressure indicator
16: Horn - no oil pressure
