4.2 Hydrostatic pump

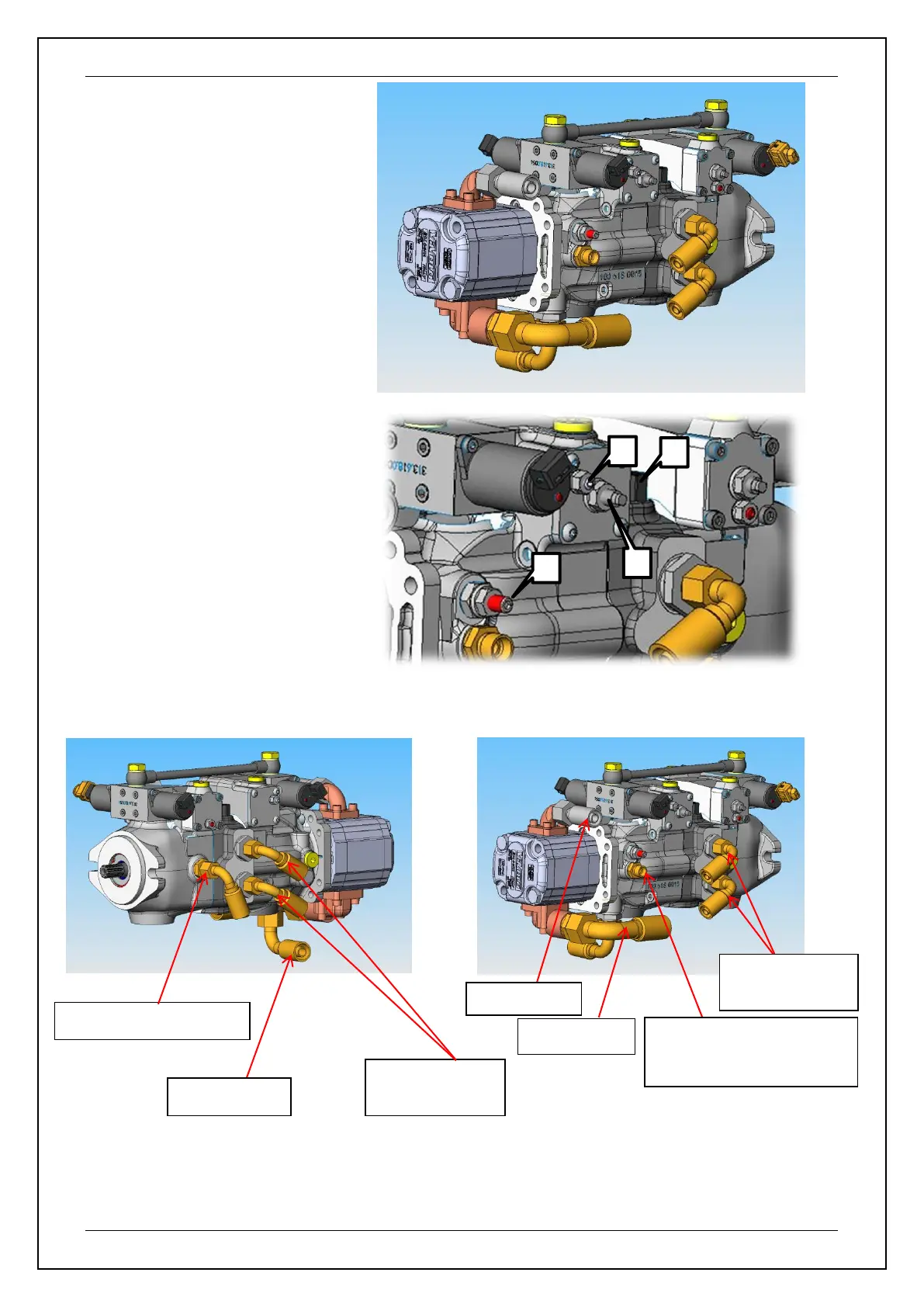

Hydrostatic pump: Hansa TPV 6-7
Piston pump 7ccm
Feed pressure: 22 bar
Pressure relief valve: 300bar (Not
adjustable)
PTO-pump:
Rexroth
Gear pump 11 ccm
1: Amount limiter
2: Neutral adjusting
3: Feed pressure adjusting
4: By-pass valve (towing)
1
2
3
4
Suction S ½”
Reverse / drain T 3/8”
A1 and B1 ½”
Right belt
¾ ” Suction
½” Pressure
Feed pressure for the
brake valve G1 3/8”
A2 og B2 ½”
Left belt
