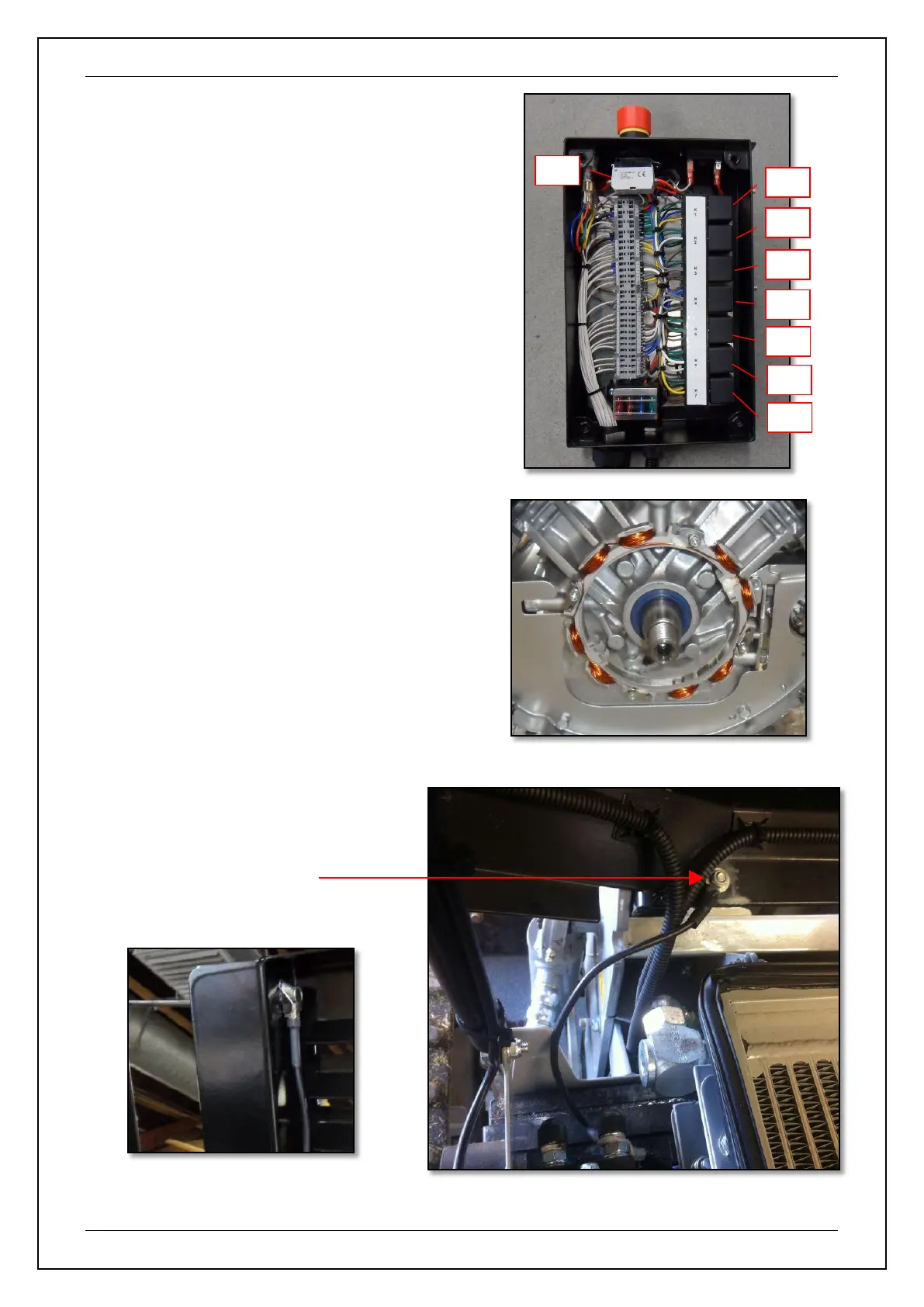

6.3 Relays
K1: Relay for starting the engine
K2: Relay for spark plug (run signal)
K3: Relay for fuel coil (afterfire)
K4: Relay for hours counter and charge indicator
K5: Cooling fan blow
K6: Cooling fan suck
K7: Saftey sensor for tool frame
K8: Emergency stop double relay
6.4 Altenator
The alternator of RC 1000 is replaced with an
alternator that has a higher charge then the regular
one. 12 V 20 A
6.5 Ground
The battery is not directly connected to the
chassis. The ground is led from the battery
to the engine.
The only place where there is direct
grounding is on the main protective cover.
The ground feeds the antenna.
