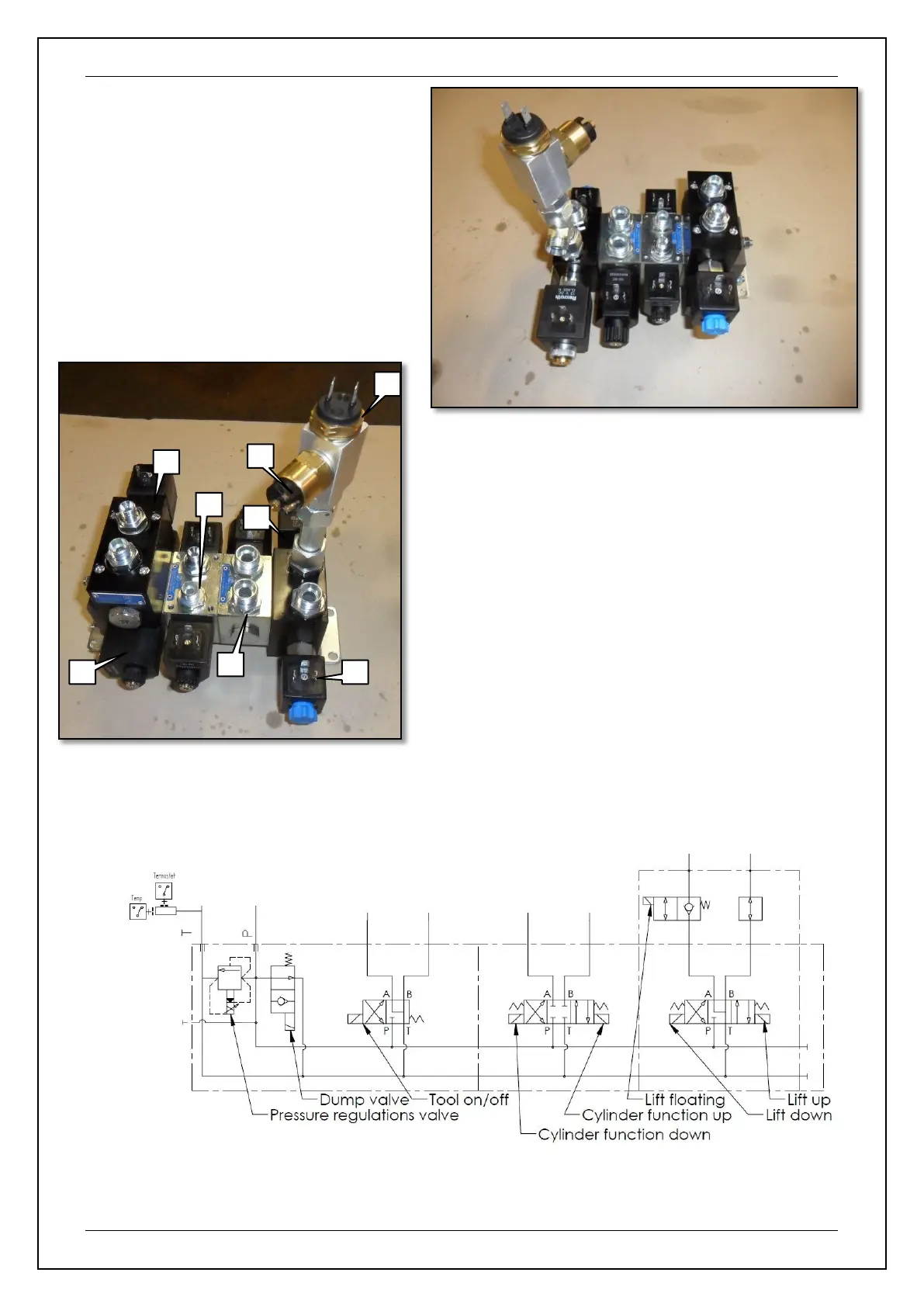

4.4 Manoeuvring valve - front
The manoeuvring valve controls:
- Mower (tool) on/off
- Tool frame up/down/floating position
- Front terminal
Relief pressure: Electrical adjusted.
1:Holding valve/floating position
2:Lifting and lowering tool frame
3:valve for front terminal
4:On/off valve for tool (mower)
5: Termostat for cooling fan
6: Pressure control valve
7:Oil temperature sensor
8:Dump valve.
1
2
3
4
5
6
7
8
