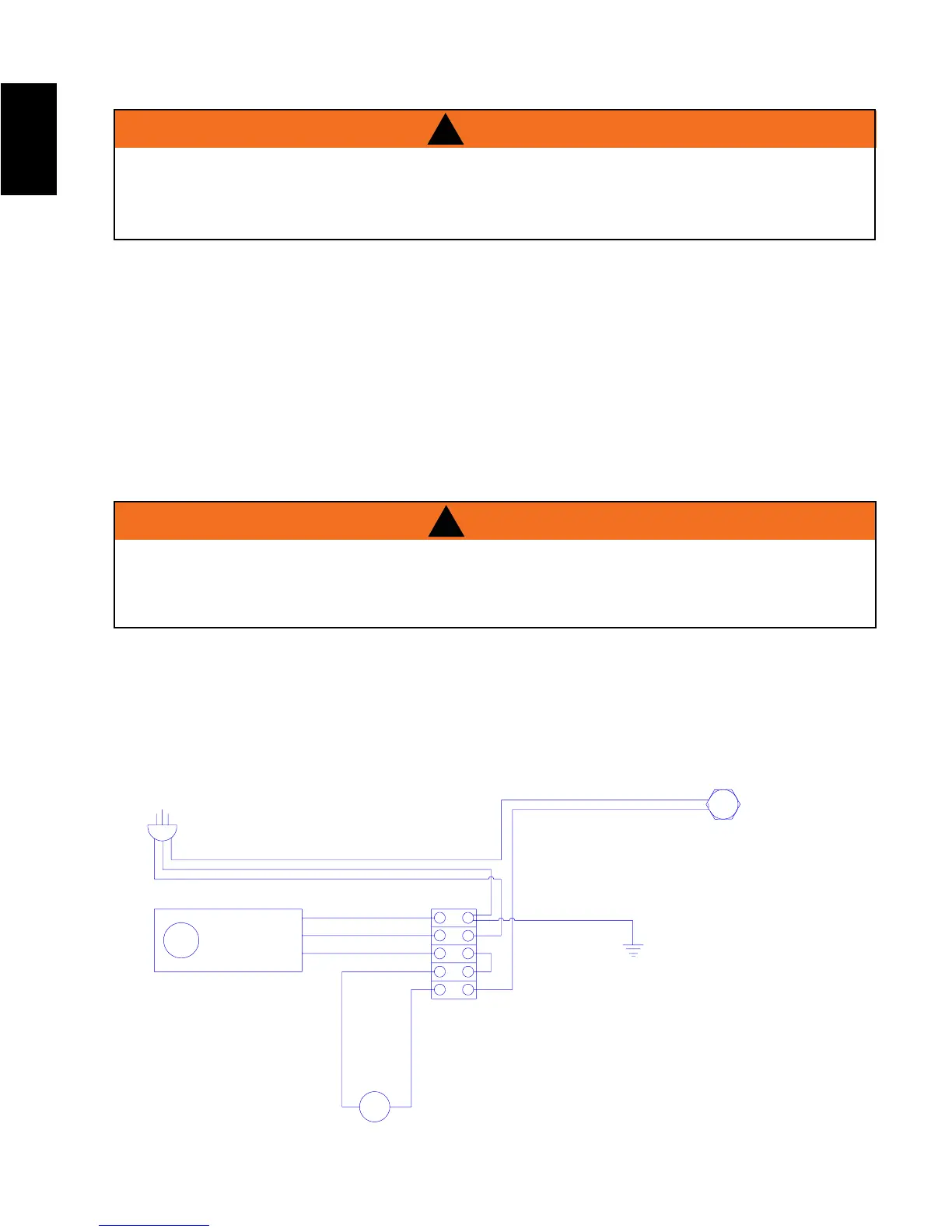

3.6.1 ELECTRICAL SCHEMATIC (FACTORY WIRED)
M
1
2
3
4
5
CHASSIS
VARIABLE
SPEED
CONTROL
BLOWER
MOTOR
BI-METAL
THERMAL
DISK SWITCH
THREE PRONG
PLUG
3.6 ELECTRICAL SUPPLY
IN THE UNITED STATES.
!
The blower motor for this appliance runs on standard 120 VAC power. The appliance comes equipped with a 3
prong plug on the end of a 6 foot (1.83m) power cord. The power cord exits the rear right corner of the furnace
3.5” (89mm) from the oor. A household 120 VAC receptacle on a minimum 15 Amp circuit is required within
reach of the power cord when furnace is in its nal installation location. DO NOT CONNECT POWER CORD
THROUGH EXTENSION CORD OR POWER BAR.
The following are signs that a fresh air kit may be required:
• When there is combustion present: Wood burns poorly, smoke spills, back-draft takes place and your
chimney does not draw steadily.
• In the winter there is too much condensation on the windows.
• Opening a window seems to alleviate the above symptoms.
• A ventilation system is installed in the house.
• Other devices are present that exhaust house air.
• The house has tight tting windows and/or is equipped with a well-sealed vapour barrier.
3.5 OUTSIDE AIR
!
W415-1133 / A / 06.12.13
10
EN
