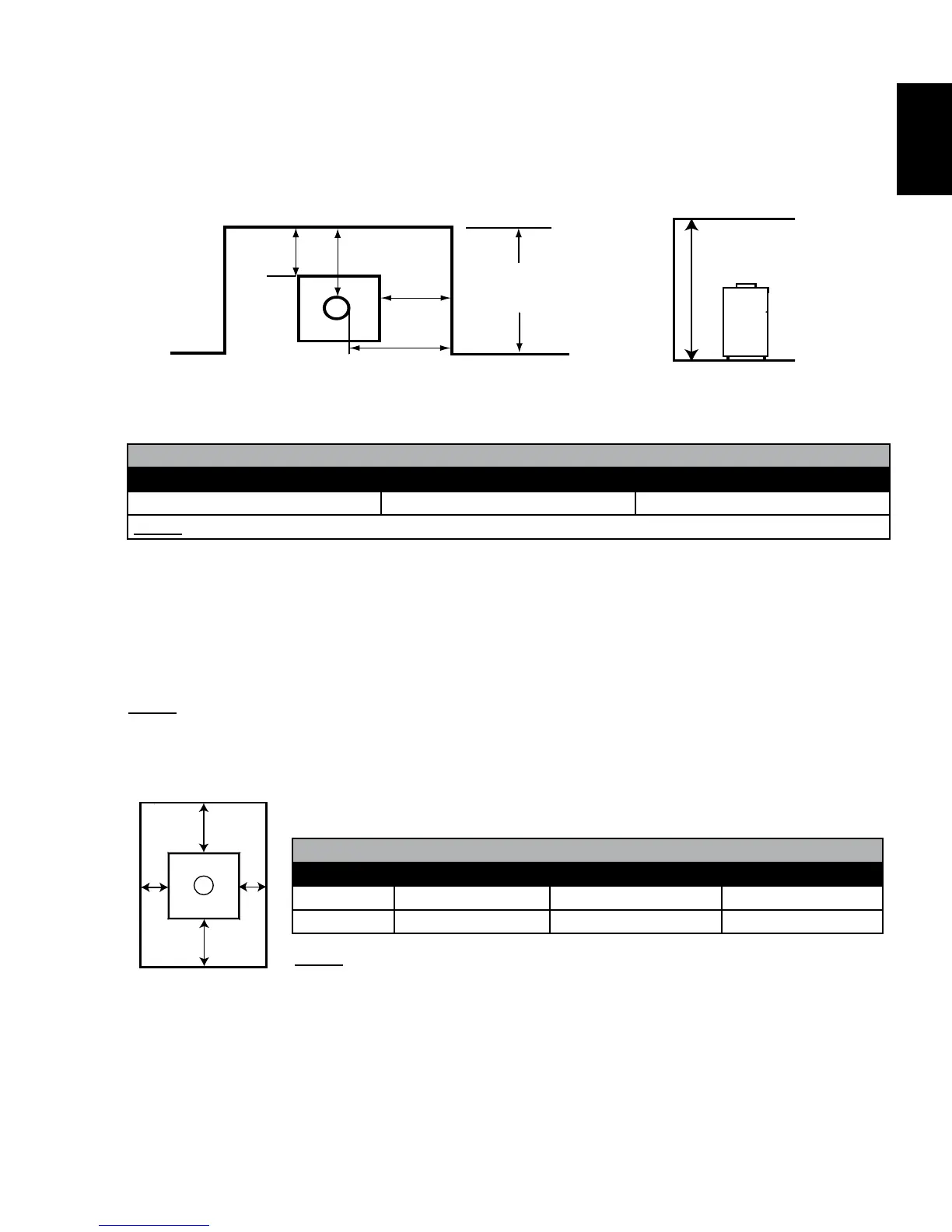

ALCOVE
PARALLEL & CORNER SINGLE WALL CONNECTOR
CEILING (F) N/A 84" (2.13m)
NOTE: Minimum width 64””” (1219mm)
17⅜"
(441mm)
28
7
/
8
"
(733mm)
ALCOVE
4 FOOT (1.2m)
MAX
16"
(406mm)
8"
(203mm)
Your appliance may be installed, using a listed double wall connector, such as Security DL6 in Canada, the
Simpson Duravent Plus DVL in the USA or an equivalent double wall connector, into an alcove having a depth
of no more than 4 feet (1.2m) and a height of at least 75” (1.9m). The minimum clearances are as shown.
3.3 ALCOVE INSTALLATION
If the appliance is to be installed on top of a combustible oor, it must be placed on an approved non-combus-
tible hearth pad, that extends 8” (203mm) beyond the appliance sides and back and 18” (457mm) to the front.
The reduced clearance from the back of the appliance may result in the appliance pad terminating shorter than
8” (203mm) beyond the appliance.
NOTE:
Refer to local building codes for suitable oor protection materials.
MINIMUM FLOOR PROTECTION
FRONT (I) SIDES (J)
CANADA 18” (457mm) 8” (203mm) 8” (203mm)
USA 16” (406mm) 8” (203mm) 8” (203mm)
NOTE:
required under the chimney connector and 2”
F
E
E
B
A
D
C
SIDE WALL
SIDE WALL
FRONT
BACK WALL BACK WALL CEILING
FLOOR
3.4 FLOOR PROTECTION
W415-1133 / A / 06.12.13
9
EN
