Timberwolf TF100 - Door Removal; Door Handle Installation

!
WARNING
!
WARNING

MAY RESULT IN A HOUSE AND OR CHIMNEY FIRE.
DO NOT STRIKE OR SLAM DOOR.
NEVER REMOVE THE DOOR WHEN THE APPLIANCE IS HOT.

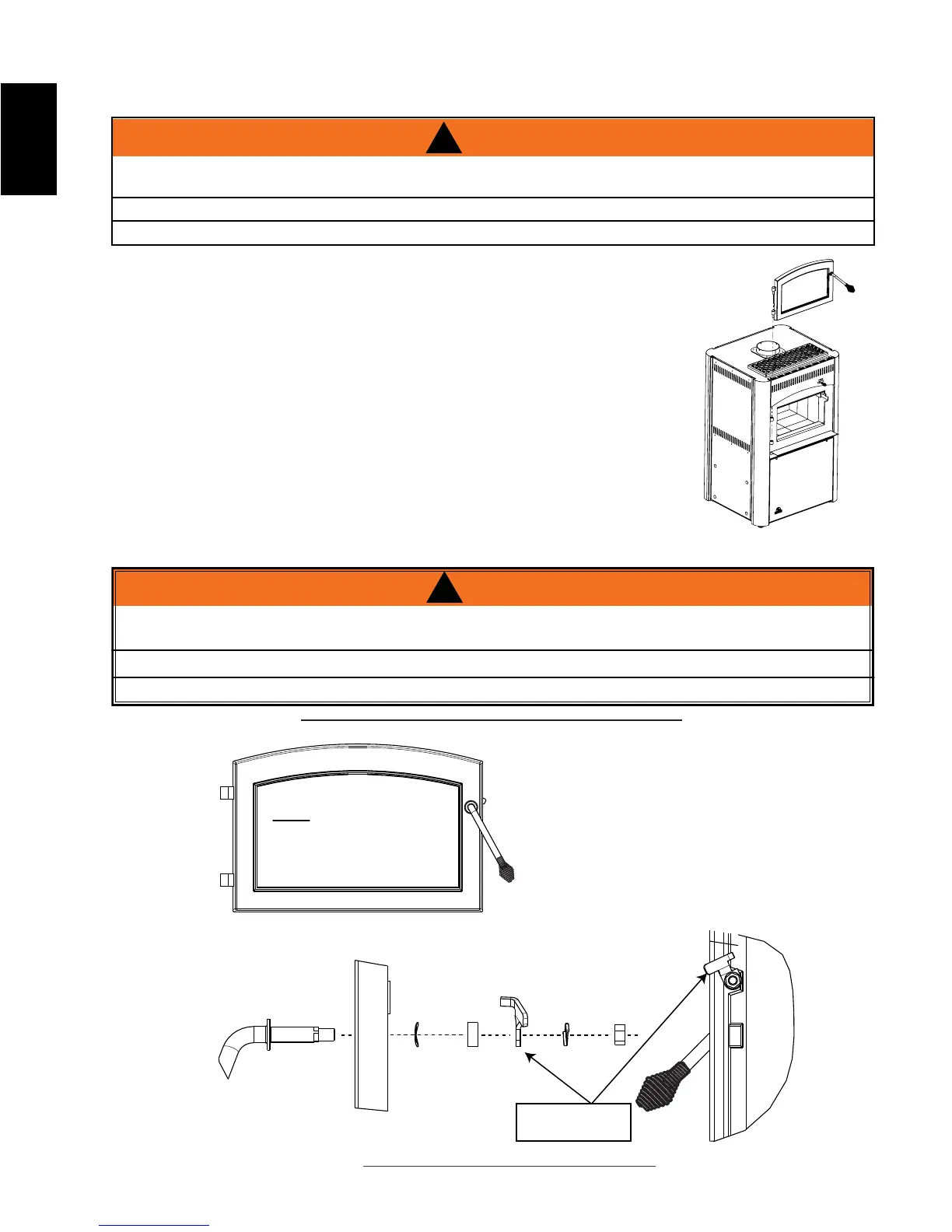

8.5 DOOR REMOVAL
Pivot the door open and lift the door and pins off the bushings. Set the door aside
being careful not to scratch the paint.
8.6 DOOR HANDLE INSTALLATION
DOOR
HANDLE
NUT
DOOR HANDLE
LATCH
LOCK
WASHER
DOOR
SPACER
SPRING
WASHER
FRONT VIEW
NOTE: Position of
door handle latch.
98.1
NOTE: DOOR MAY NOT BE AS
ILLUSTRATED
!
WARNING

MAY RESULT IN A HOUSE AND OR CHIMNEY FIRE.
DO NOT STRIKE OR SLAM DOOR.
NEVER REMOVE THE DOOR WHEN THE APPLIANCE IS HOT.
H3.1
!
AVERTISSEMENT
!
AVERTISSEMENT
!
H3.1
FAIRE FONCTIONNER CET APPAREIL AVEC LES PORTES OUVERTES OU ENTROUVERTES CRÉE


.

W415-1133 / A / 06.12.13
28
