8.12 BLOWER ASSEMBLY REMOVAL
IN THE UNITED STATES.
!
WARNING

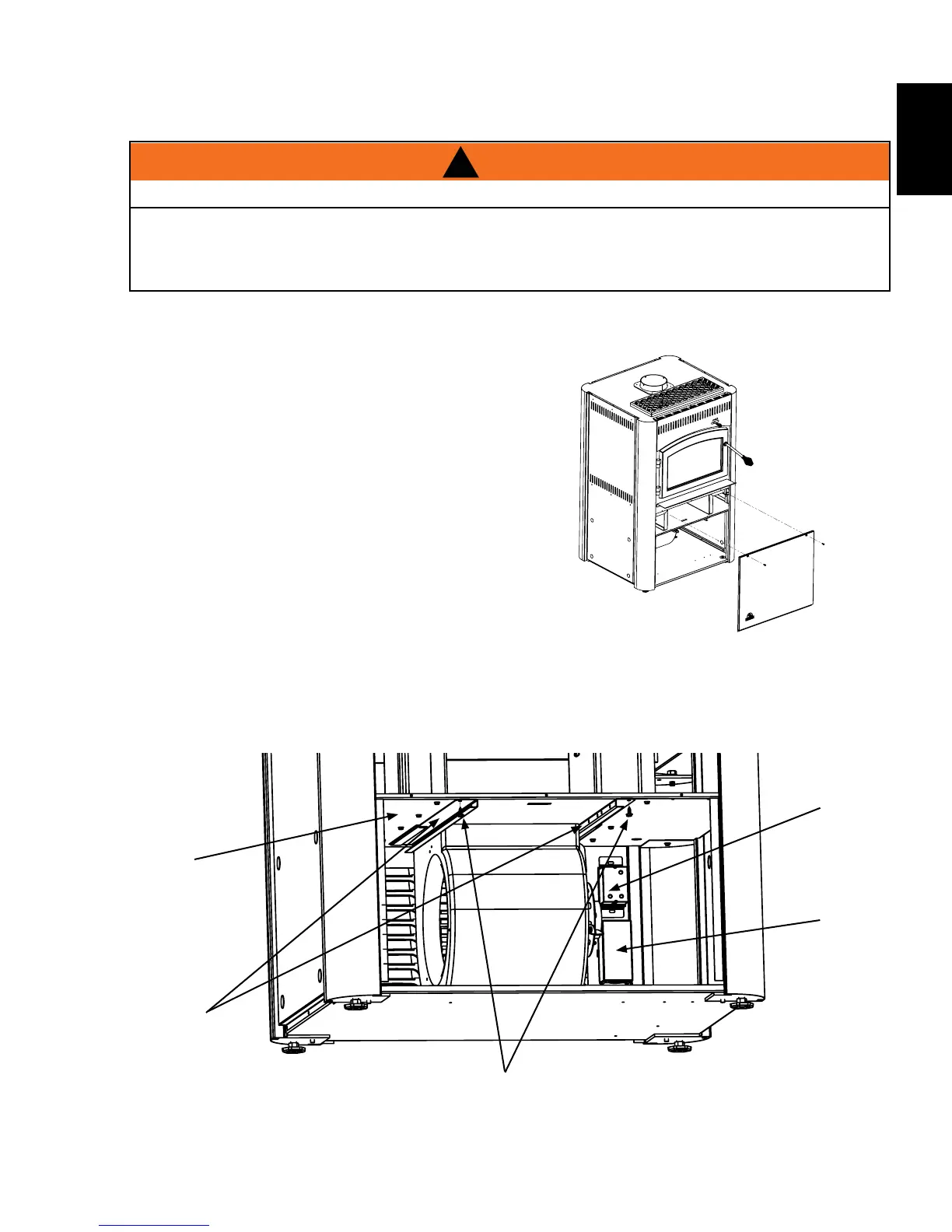

1. Remove the two securing screws from the top of
the front lower panel.
2. Remove the cover from the junction box located to the right of the blower mounted on the rear panel
(squeeze the sides of cover towards each other and pull).
BLOWER
DIVISION
PANEL
MOUNTING
RAILS
SECURING
SCREWS (2)
VARI-SPEED
CONTROL
LOWER
JUNCTION
BOX
To remove the blower assembly for service or inspection, please refer to the following procedures.
