6.0 OPTIONS
The blower can be further controlled by installing an external wall switch or line voltage thermostat. This will
allow manual on/off control of the blower from a more convenient location or automatic on/off control based on
room temperature.
This can be done by replacing the jumper wire between terminals #3 and #4 on the control block terminal strip
(inside lower junction box) with a line voltage circuit.

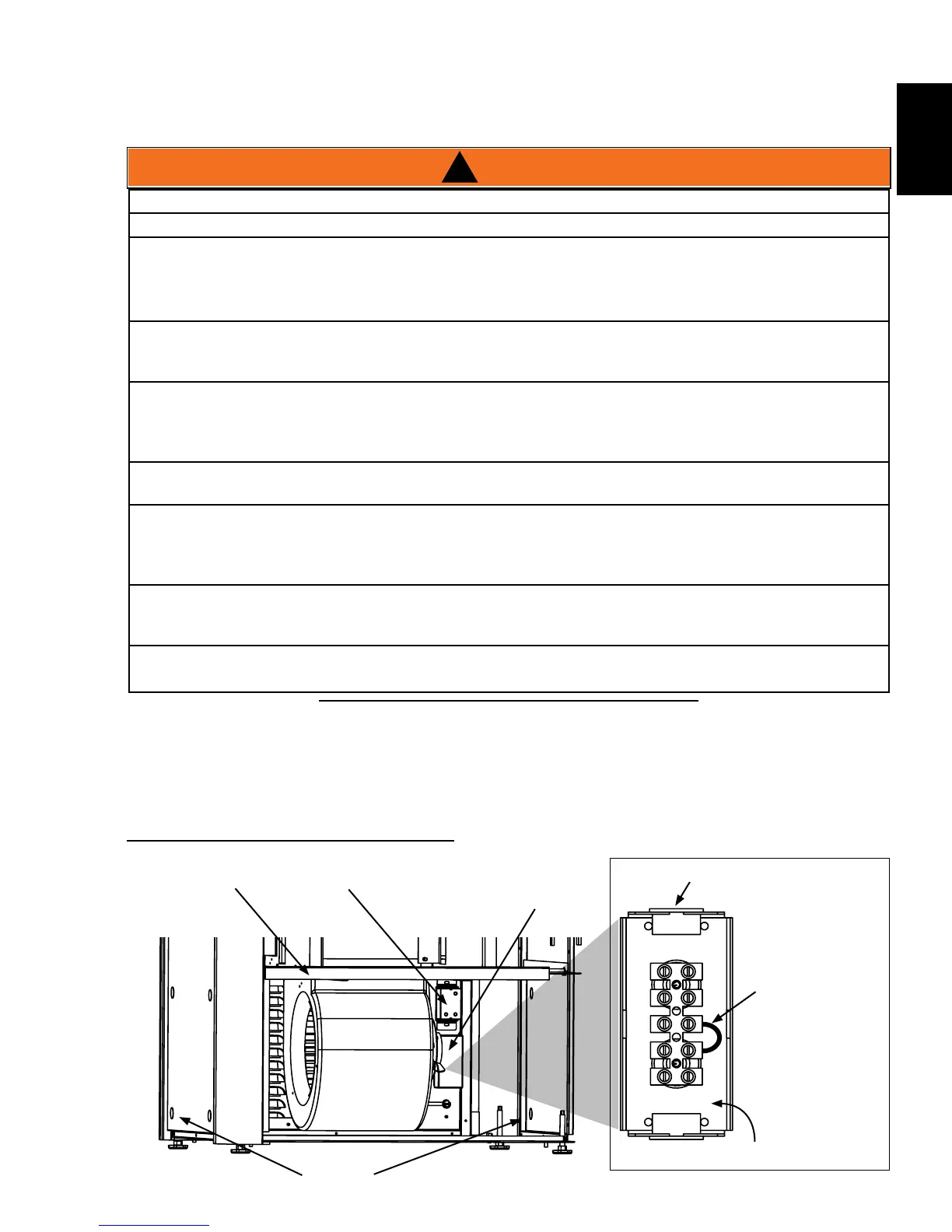

6.1 EXTERNAL BLOWER CONTROL
NOTE - Most wiring
omitted for drawing clarity.
REPLACE JUMPER
WIRE BETWEEN
TERMINALS #3 & #4
WITH LINE VOLTAGE
WIRE
BLOWER
DIVISION PLATE
VARI-SPEED
CONTROL
LOWER
JUNCTION BOX
LOWER REAR KNOCK OUTS ON SIDE PANELS
PLASTIC GROMMET
LOWER JUNCTION
BOX WITH COVER
REMOVED-CONTROL
BLOCK TERMINAL
STRIP EXPOSED.
!
RISK OF FIRE AND ELECTRICAL SHOCK.
USE ONLY WOLF STEEL APPROVED OPTIONAL ACCESSORIES AND REPLACEMENT PARTS WITH
COMPONENTS, VENTING COMPONENTS, ETC.) COULD RESULT IN A SAFETY HAZARD AND WILL
VOID THE WARRANTY AND CERTIFICATION.
ENSURE THAT THE POWER CORD IS NOT IN CONTACT WITH ANY SURFACE OF THE APPLIANCE
THE APPLIANCE.
UNITED STATES.
ELECTRICAL CODES.
(THE STRAIN RELIEF FITTING) MUST MAINTAIN CLEARANCE TO ALL POINTS ON THE FURNACE
THE SAME OR GREATER CLEARANCES TO THE APPLIANCE AS DEFINED IN SECTION 3.2.
TO PREVENT HEAT DAMAGE TO LINE VOLTAGE WIRE INSIDE FURNACE, KEEP MINIMUM
W415-1133 / A / 06.12.13
19
EN
