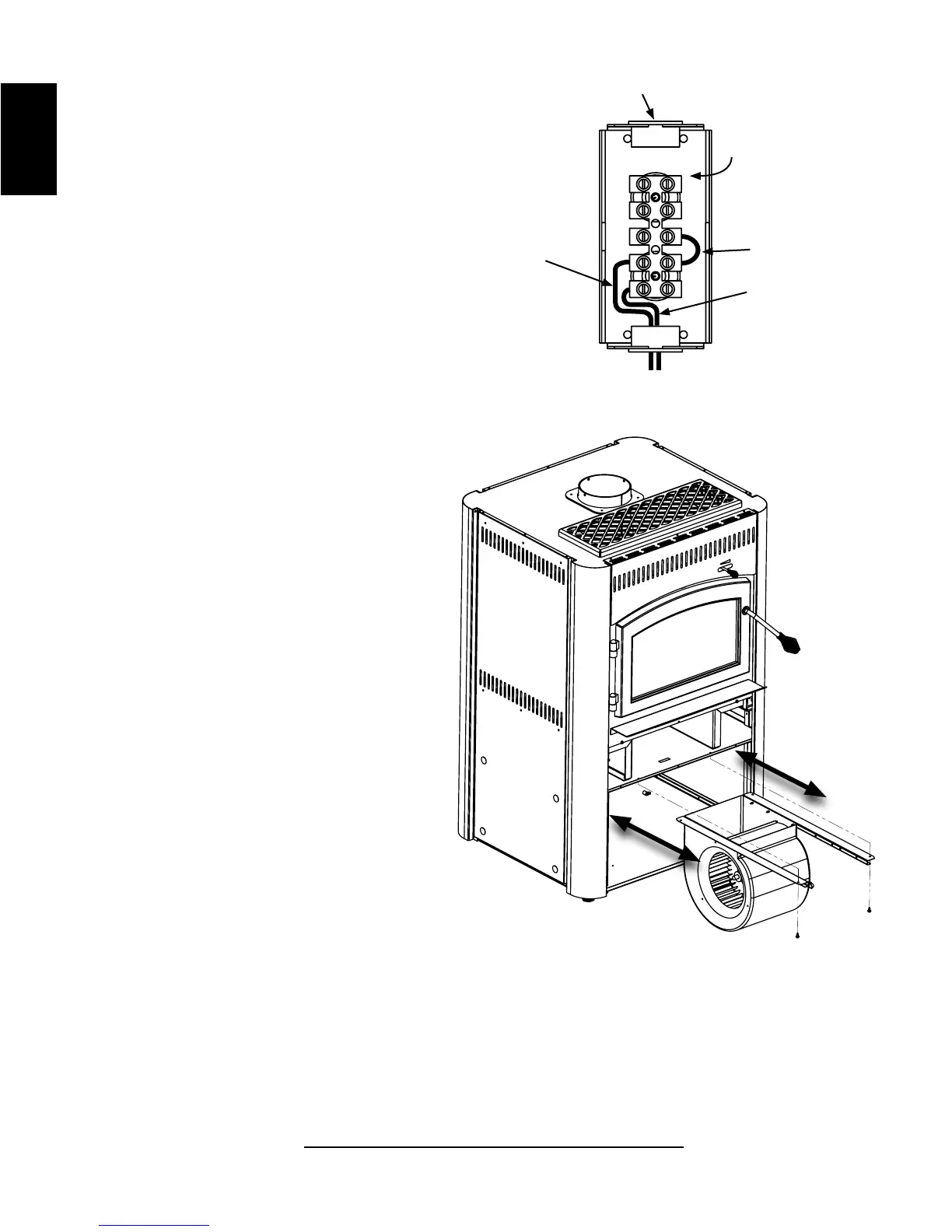

3. Disconnect the motor wire harness from the

terminal strip and remove the harness from the

junction box.

Remove the red and white motor wires from the

left side of the 4th and 5th terminals from the top

of the strip.

NOTE - Most wiring omitted for drawing clarity.

PLASTIC GROMMET

LOWER JUNCTION

BOX WITH COVER

REMOVED - CONTROL

BLOCK TERMINAL

STRIP EXPOSED.

WHITE WIRE

RED WIRE

YELLOW WIRE

(JUMPER)

4. Remove the two screws from the blower

assembly mounting rails located under the

blower division panel near the front of the

appliance.

5. Slide the blower assembly out of the

appliance.

6. Follow the process in reverse to reinstall.

8.13 BLOWER MOTOR LUBRICATION

H29.1

For routine maintenance and improved bearing life, the two motor bearings can be lubricated with non

detergent SAE 20 oil every 12 months.



Comme entretien périodique et a n d’augmenter la durée de vie des roulements à billes, les deux roulements

à billes du moteur peuvent être lubri és à tous les 12 mois avec de l’huile non détergente SAE 20.

NE LUBRIFIEZ PAS TROP.

H29.1
