5.0 FINISHING

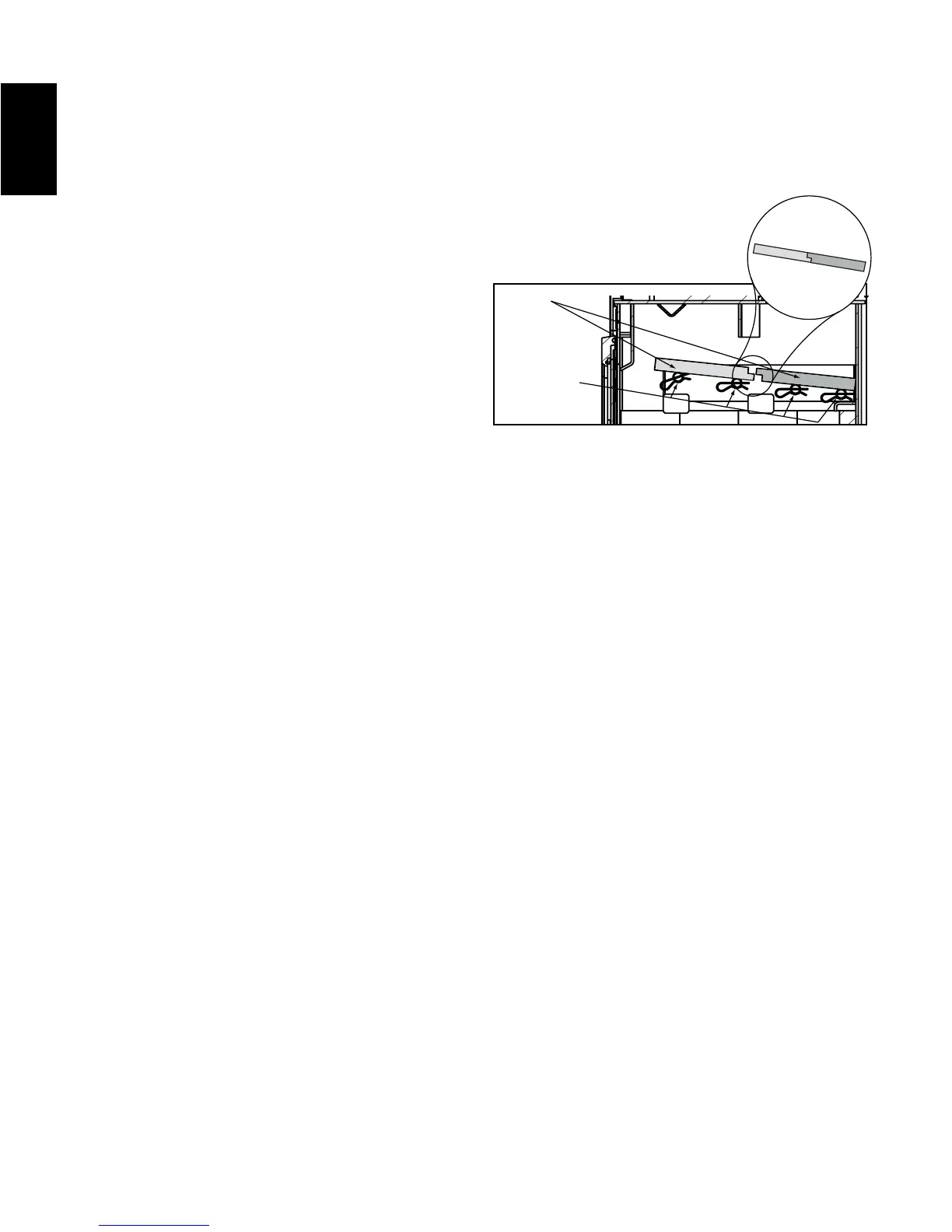

BAFFLE

SECONDARY

AIR TUBES

OVERLAP

JOINT

The four secondary air tubes have been factory

installed. The front most tube has larger holes than

the rear three tubes.

• Carefully pivot the bre bafes (F) up onto the

secondary air tubes as illustrated. Ensure that

the top bafes are pushed all the way to the

rear of the rebox, leaving a minimum of 1 inch

(25mm) gap along the front. This will allow the

ue gases to escape the rebox. Ensure over-

lap joint is tight as illustrated.

5.1 SECONDARY AIR TUBES / BAFFLES INSTALLATION

W415-1133 / A / 06.12.13
