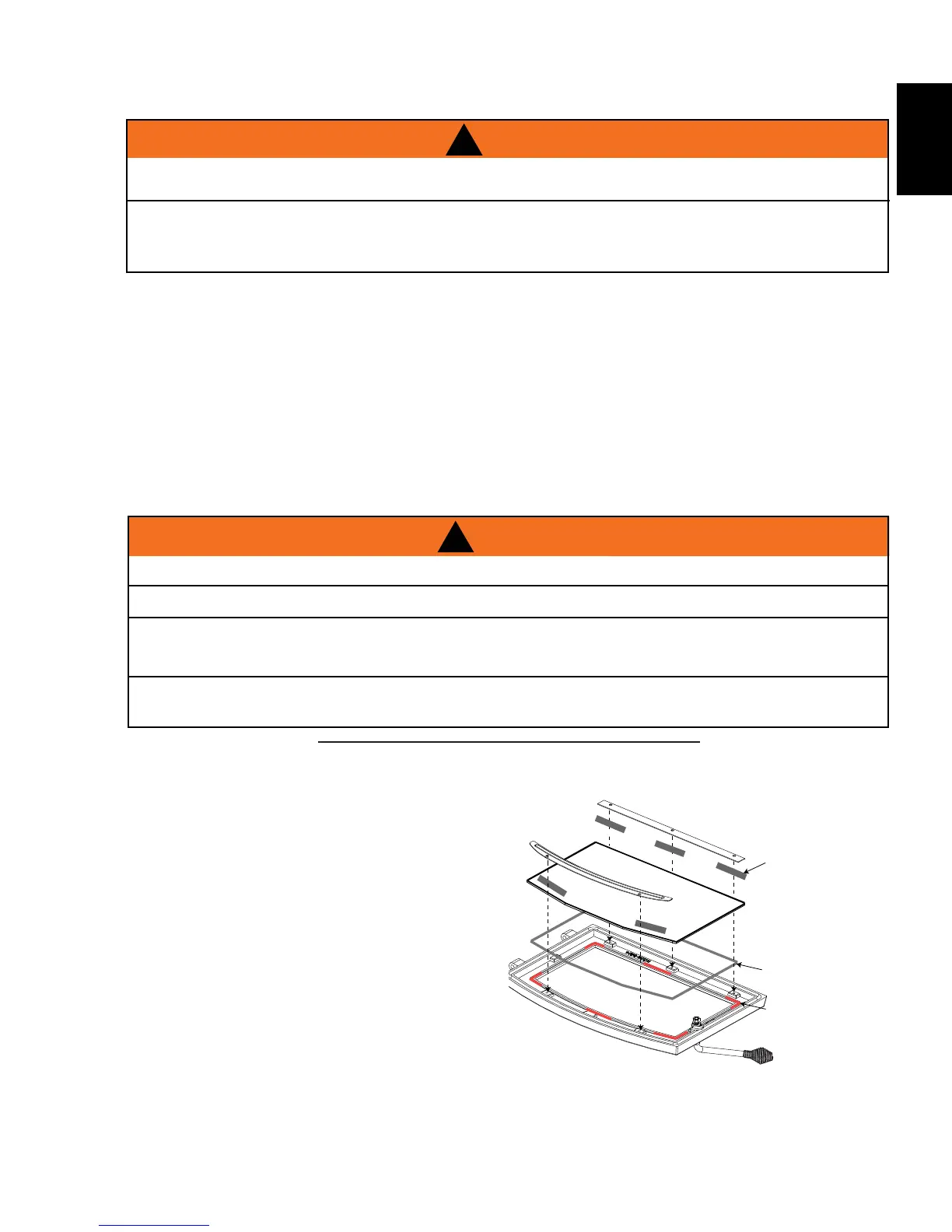

A. When the appliance is cool, remove the door
and place it face down on a soft surface. Be
careful not to scratch the paint.
Remove the 5 screws securing the glass
retainers.
C. Remove all broken glass.
D. Cut the 3/4” at gasket into 3 1/2” (89mm)
lengths and afx to glass retainers as
illustrated, ensure the gasket extends past the
ends of the retainers by 1/4” (6mm) .
E. Apply small beads of silicone in the gasket
groove, as shown.
F. Place the rope gasket in the gasket groove, on
top of the silicone.
G. Place the glass on the door. Re-install the glass retainers.
¾” x 3 ½” (89 mm)
FLAT
GASKET
¼” ROPE
GLASS
GASKET
SILICONE
!
DO NOT USE SUBSTITUTE MATERIALS.
GLASS MAY BE HOT, DO NOT TOUCH GLASS UNTIL COOLED.
CARE MUST BE TAKEN WHEN REMOVING AND DISPOSING OF ANY BROKEN DOOR GLASS OR
DAMAGED COMPONENTS. BE SURE TO VACUUM UP ANY BROKEN GLASS FROM INSIDE THE
APPLIANCE BEFORE OPERATION.
DO NOT STRIKE, SLAM OR SCRATCH GLASS. DO NOT OPERATE APPLIANCE WITH GLASS
REMOVED, CRACKED, BROKEN OR SCRATCHED.
At the end of each burning season inspect the rebox door gasket ensuring that it is not worn or loose. Re-
place with proper berglass rope. The purpose of door gasketing is to seal the rebox. If the door is not
sealed, air leaks into the rebox, creating a quick burning re. This situation is not desirable for overnight or
extended burns.
Replace cracked or broken glass immediately. When re-installing the glass, be sure that the glass and gasket
create a solid seal around door frame. Follow the instructions in Section 8.8 for Glass Replacement.
THAT MAY RESULT IN A HOUSE AND OR CHIMNEY FIRE.
-
CONDITIONS.
8.7 GLASS AND GASKET REPLACEMENT
8.8 GLASS REPLACEMENT
W415-1133 / A / 06.12.13
29
EN
