Timberwolf TF100 - 3 Pre-Installation Preparation; Appliance Placement; Minimum Clearance to Combustibles

3.0 PRE-INSTALLATION PREPARATION
Have an authorized dealer install the appliance. If you install the appliance yourself, have your dealer review
your installation plans and/or installation.
Draw out a detailed plan of the installation including dimensions and verify the dimensions with the require-
ments listed in this manual.
You may wish to adjust the appliance position slightly to ensure the vent does not intersect with a framing
member. Appliance must be positioned so that no combustibles are within, or can swing within (e.g. drapes,
doors), 48” (1219.2mm) of the front of the appliance.

3.1 APPLIANCE PLACEMENT
PARALLEL & CORNER SINGLE WALL CONNECTOR D
SIDEWALL (A) 17 3/8ʺ (441mm) 17 3/8ʺ (441mm)
SIDEWALL TO FLUE (B) 28 7/8" (733mm) 28 7/8ʺ (733mm)
BACKWALL (C) 13" (330mm) 8ʺ (203mm)
BACKWALL TO FLUE (D) 21" (533mm) 16ʺ (406mm)
CORNER (E) 11" (279mm) 7ʺ (178mm)
CEILING (F) 90" (2.29m) 84ʺ (2.13m)
FRONT (G) 48" (1219mm) 48ʺ (1219mm)
FLOOR (H) 7/8" (22mm) 7/8" (22mm)
Clearances can be reduced with shielding acceptable to local authorities. Reduced installation must comply
with NFPA 211 or CAN/CSA-B365.


HEIGHT).
!
WARNING
!
WARNING

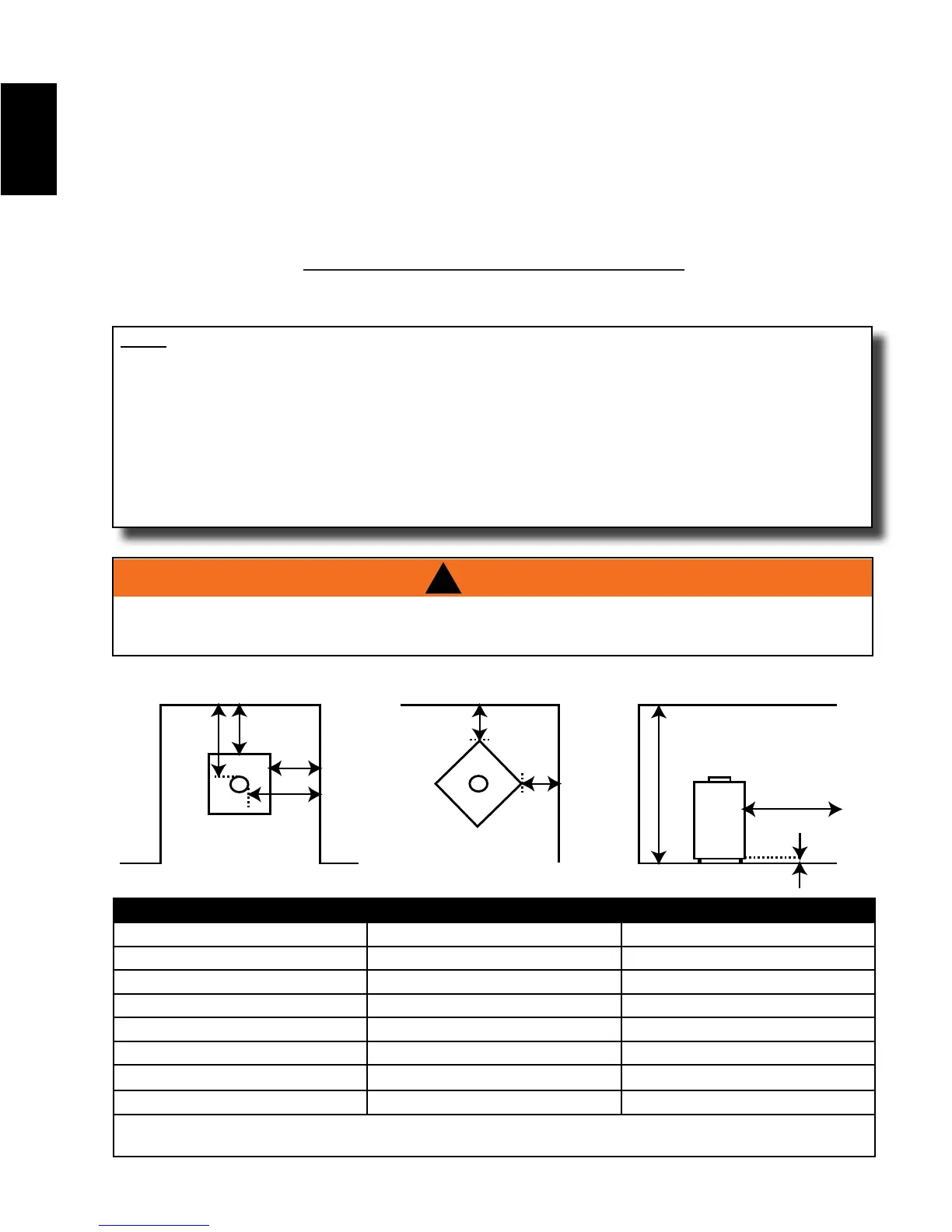

3.2 MINIMUM CLEARANCE TO COMBUSTIBLES
H
G
F
E
E
B
A
D
C
SIDE WALL
SIDE WALL
FRONT
BACK WALL BACK WALL CEILING
FLOOR
NOTE: All clearances listed in this section are minimum distances required between appliances and combustible
surfaces, they do not take into account additional clearance that may be required to service the appliance.
Consider the following factors when planning the location for the appliance:
Frequent Access Requirements:
1 – Access for adjustment of the blower speed control located at the lower back right corner of the appliance
(mounted on the rear panel).
2 – Access for the replacement of lters if the optional lter rack is installed (mounted on the rear panel of the
appliance).
Other Access requirements:
Servicing either the bimetal thermal switch or the vari-speed control of the blower circuit requires access into the
back of appliance with the rear panel removed.
W415-1133 / A / 06.12.13
8
EN
