Antenna Installation
Overview
Warning:
1. Please read the Antenna Installation section carefully prior to the actual installation.
2. This glass-mount DAB antenna is exclusively for use inside the vehicle.
3. It is not suitable for use on reflective-coated glass.
4. Do not bend or damage the Antenna.
5. This DAB antenna is to be installed on either side of the front windshield only.
6. The vehicle’s DAB receiver must provide a phantom power to the connector for the
DAB antenna.
7. Once the DAB antenna is adhered to the windshield it can not be relocated. Please
test and fit the antenna in its location before removing the adhesive separator and
permanently fixing it to the windshield. The antennas that have been adhered in
location are not valid for return and warranty claims.
Procedure
1. Pre-Installation
The glass-mount antenna must be placed on the top corner and on the either side of
the front windshield. Before installing, consider the following important reception and
installation factors when you choose the location.

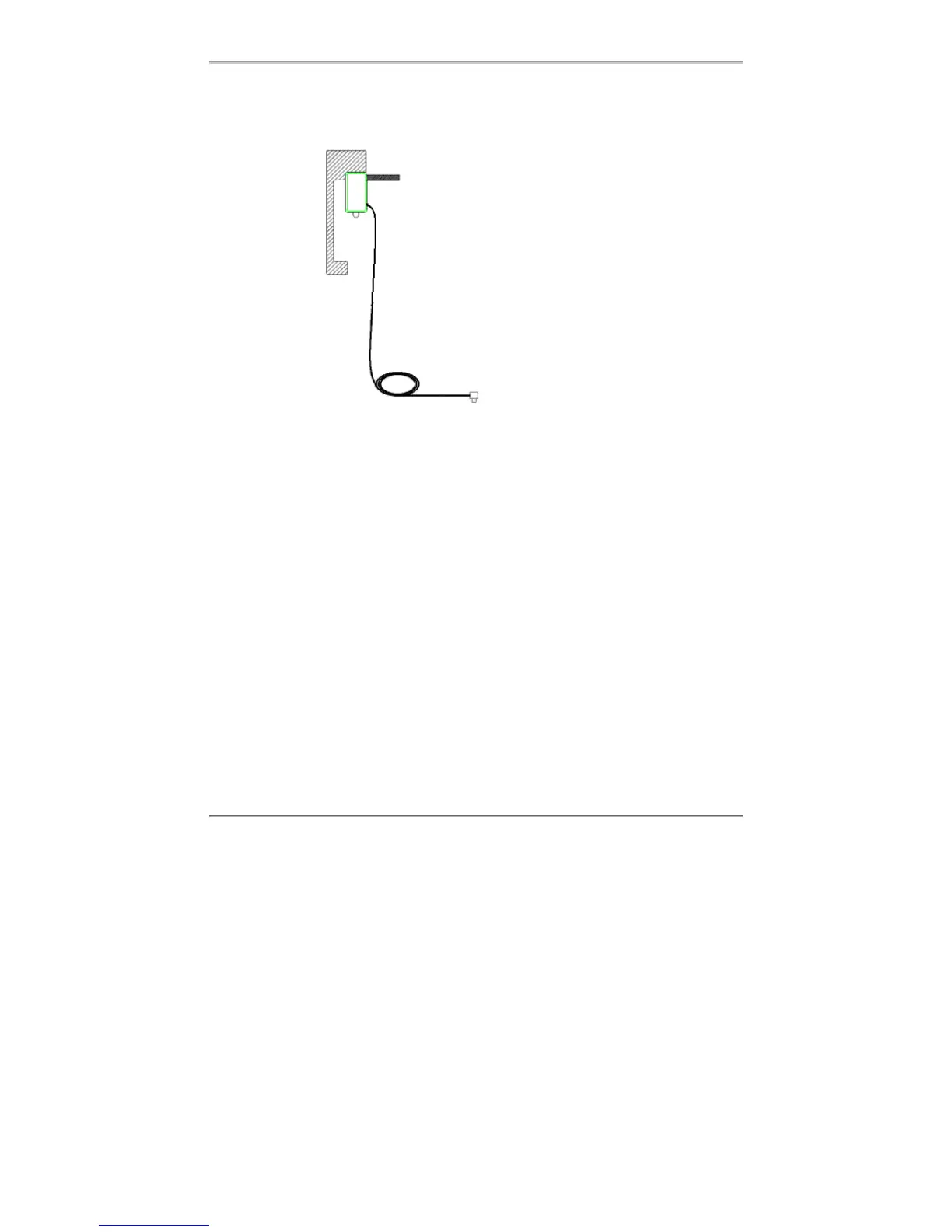

❶ Antenna
❷ Signal Booster
➌ Copper Strip
➍ Antenna Cable
➎ Connector
❶
❷
➌
➍
➎
