Apply grease on battery terminals to prevent corrosion.
Connect the positive cable fi rst, then connect the negative cable.
BATTERY VOLTAGE INSPECTION
Disconnect the cable from the battery terminals. First the negative pole, then the positive.
Measure the voltage between the two poles of the battery:
• Remove the battery from the vehicle.
• Connect the positive pole of the charger with the positive pole of the battery.
• Connect the negative pole of the charger with the negative pole of the battery.
• Charge the battery for the charging time indicated on the battery.
• Recheck the voltage after 30 minutes of charging. If it still below 13.1 V continue to charge at 15 minute
intervals, checking voltage levels for the appropriate charge. Continue as needed.
Charging current 0.7 A / hr. 3.0 A / hr.
Charging time 5 ~ 10 hours 30 minutes
• Do not use fast charging unless it is an emergency
• Do not smoke or allow open fl ame near battery when charging.
• At the beginning or end of charging, turn off the charger fi rst, in order to prevent electric shock.

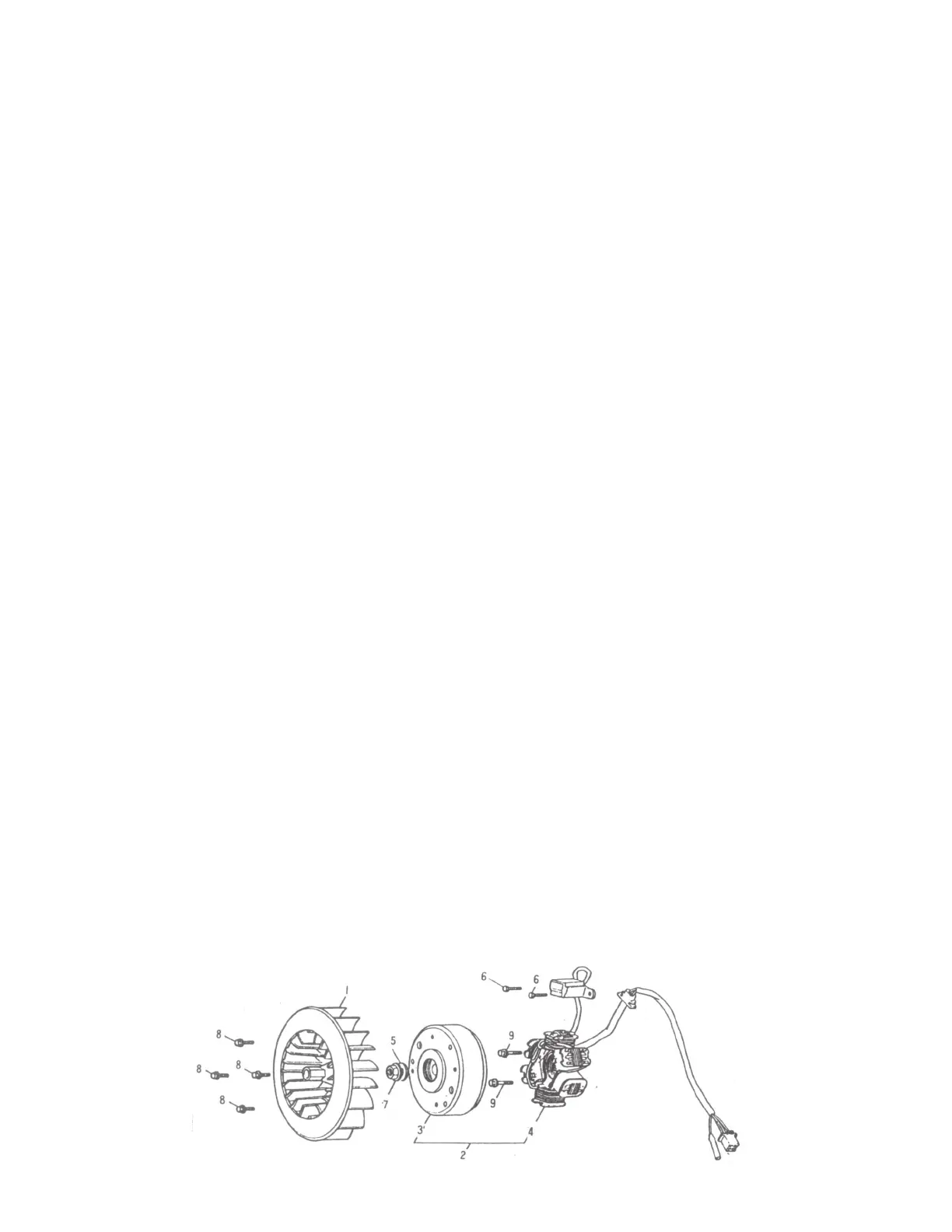

The picture below shows the structure of the generator:
