TH2883 Series Operation Manual Chapter 8 SCPI Command reference
8-10
8.3.4 COMParator subsystem commands
The COMParator subsystem commands set the compare conditions, including Areasize, Diffzone,
Corona and Phasediff. Figure 8-5 shows the command tree of the COMParator subsystem
commands.

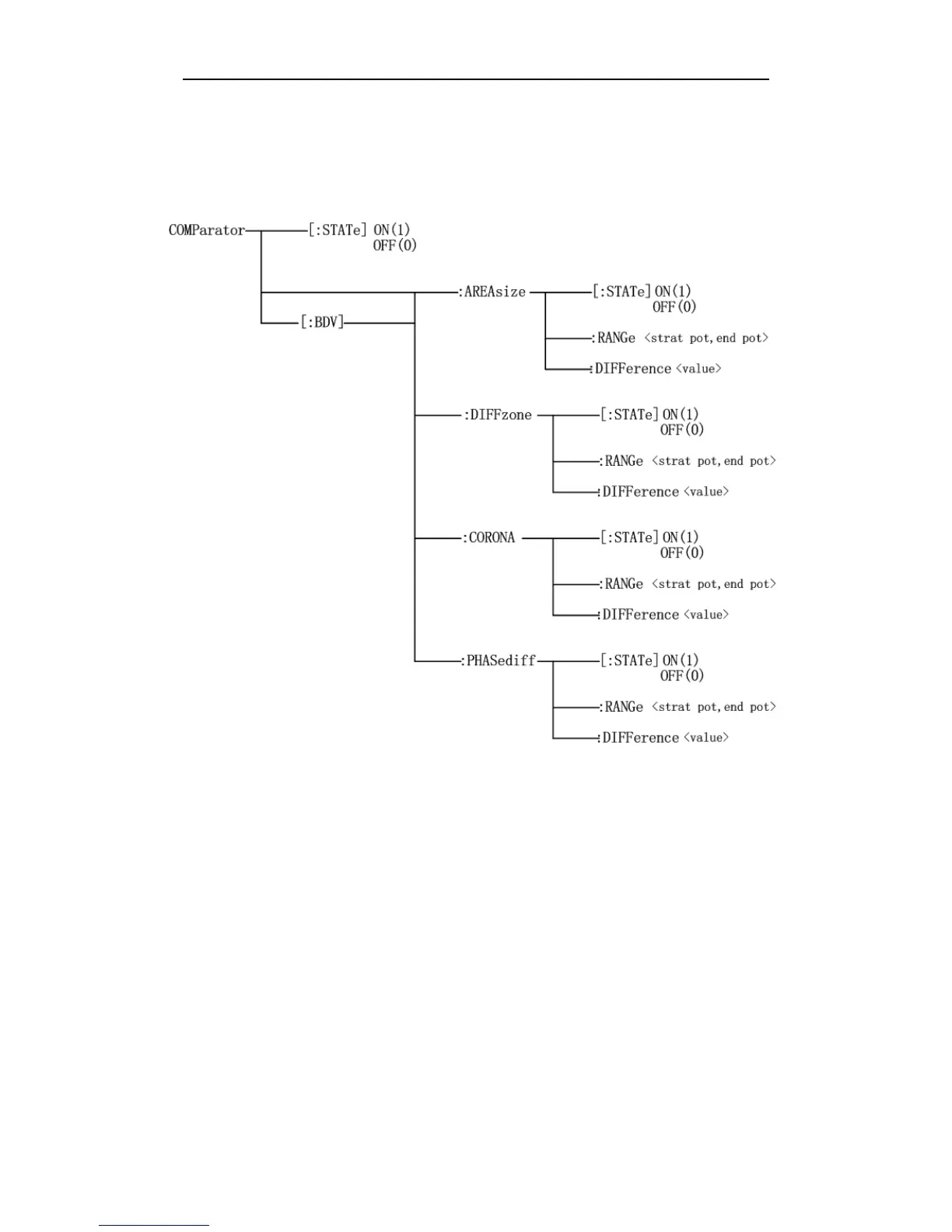

Figure 8-5 COMParator subsystem command tree
Here, BDV means breakdown voltage testing. The compare setting method is the same as the
non-break testing. The command syntax and query syntax in break testing and non-break
testing will be merged together.
The [:STATe] command sets the comparator function to ON or OFF. The [:STATe]? query returns
the current comparator state.
