TH2883 Series Operation Manual Version:1.0.1
1-3

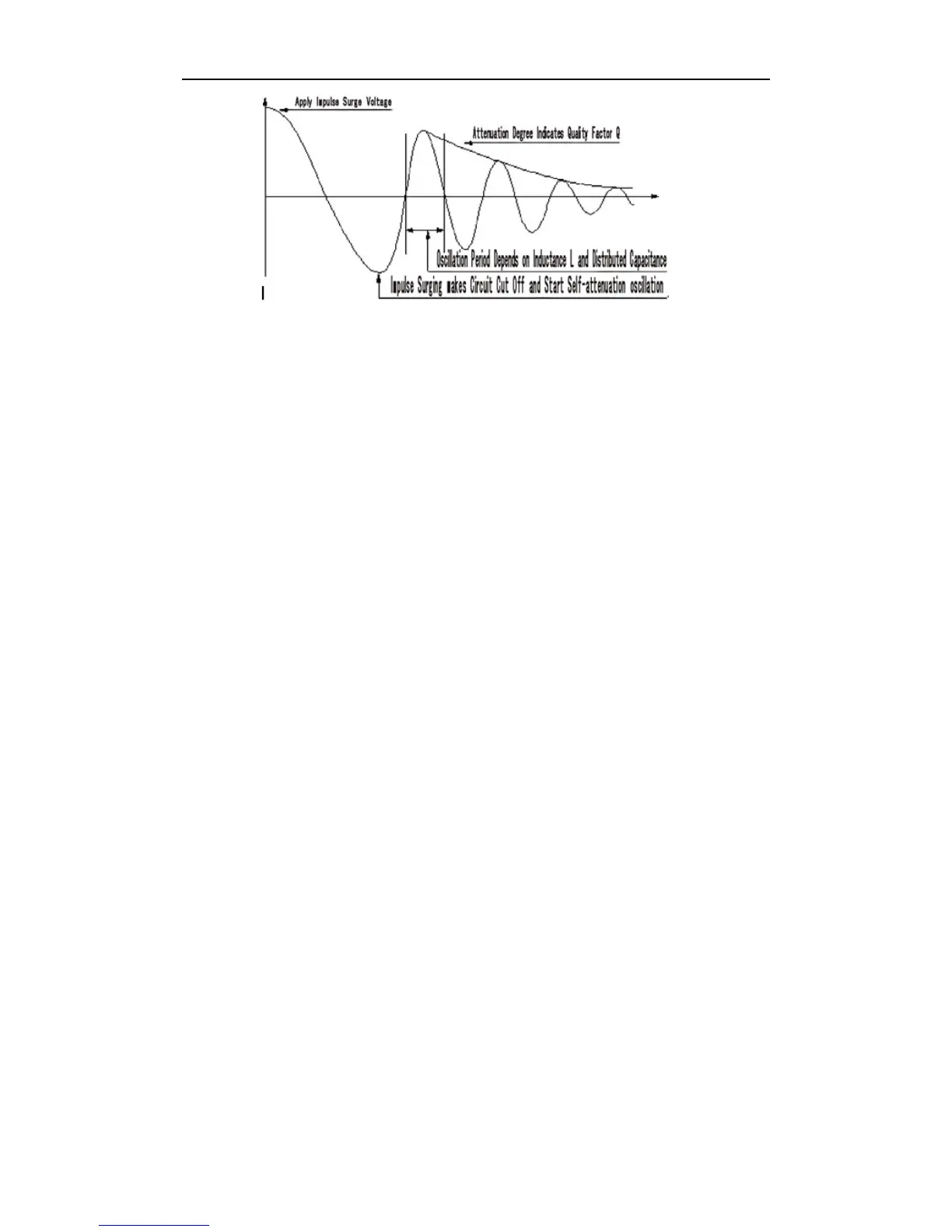

Figure 1-2 Typical self-attenuation oscillation wave
1.2 Operation environment
1.2.1 Power supply
Voltage: 198V-242V AC, 99V-121V AC
Power frequency: 47.5Hz-63Hz
Consumption: ≤40VA
1.2.2 Environment temperature and humidity
Normal working temperature: 0 ~40℃℃, Humidity: ≤ 90%RH
Referential working temperature: 20 ±8℃℃, Humidity: ≤ 80%RH
Transferring environment temperature: 0 ~50℃℃m, Humidity: ≤ 93%RH
1.2.3 Warm-up
The warm-up time should not be less than 15 minutes.
1.3 Dimensions and weight
Dimensions (W*H*D): 400mm×132mm×390mm
Weight: Approx. 7.2kg
