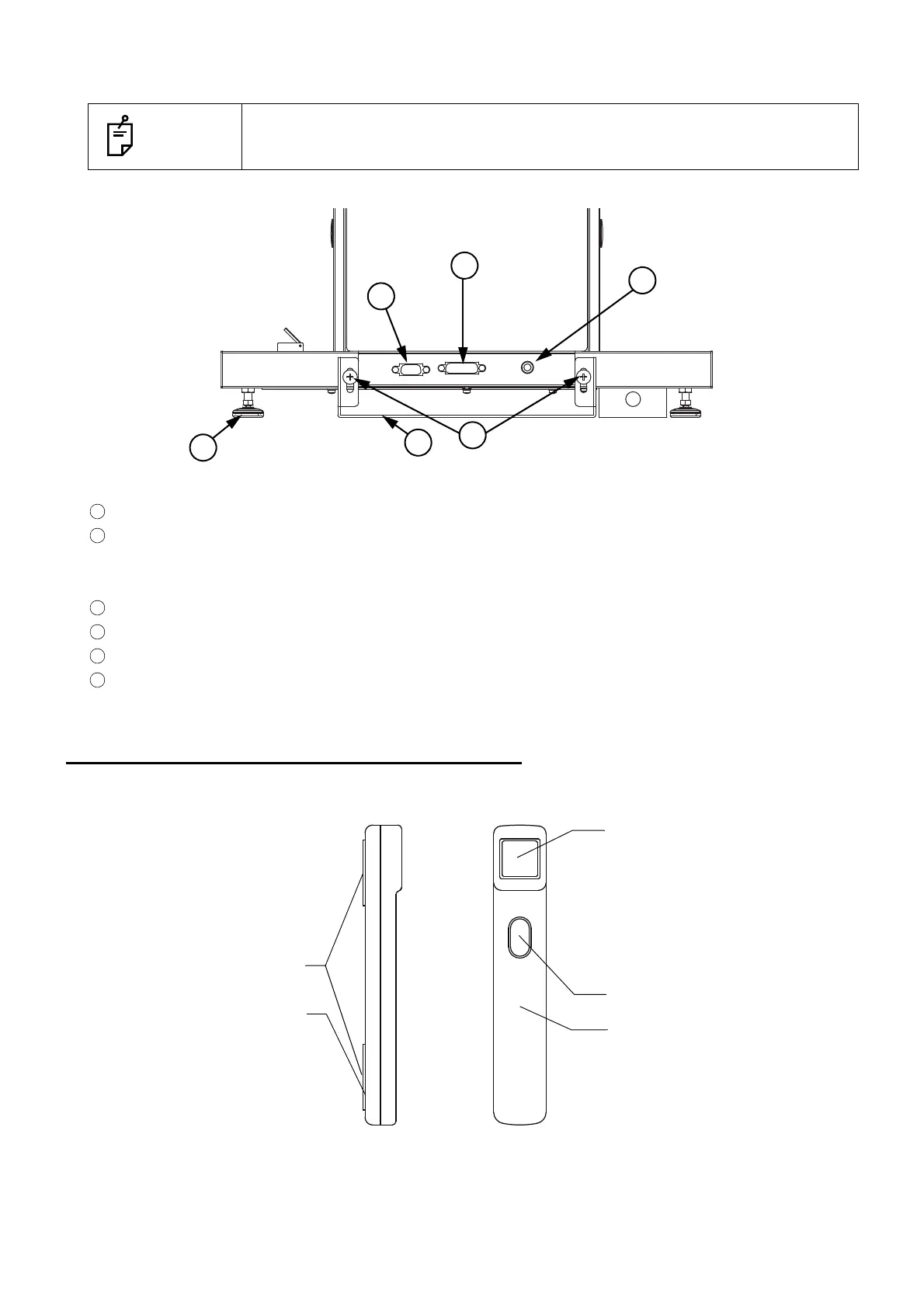

NOMENCLATURE
Lower rear surface
Analog VGA connector: Usually this is not used.
DVI connector: Used to connect with the external devices (CV-5000 only). Ask the
service personnel to connect the instrument with the external
devices.
AC adapter jack: Used to connect the AC adapter.
Support metal fixture: This reinforces the instrument's stability.
Screw for support metal fixture:These affix the support metal fixture onto the instrument.
Adjuster: Used to adjust the inclination when installing the instrument.
NOMENCLATURE OF ALIGNMENT EMITTER
NOTES
Cover is attached to the analog VGA connector. Don't use this connector.
8
5
9
6
10
7
5
6
7
8
9
10
Magnet
Battery cover
Light emitting unit
Switch
Cover
