Topcon MC-4S - Connecting to Compu-Vision CV-5000

14
PREPARATION BEFORE USE
CONNECTING TO COMPU-VISION CV-5000
This instrument is connected to the CV system and is used as a visual acuity chart.

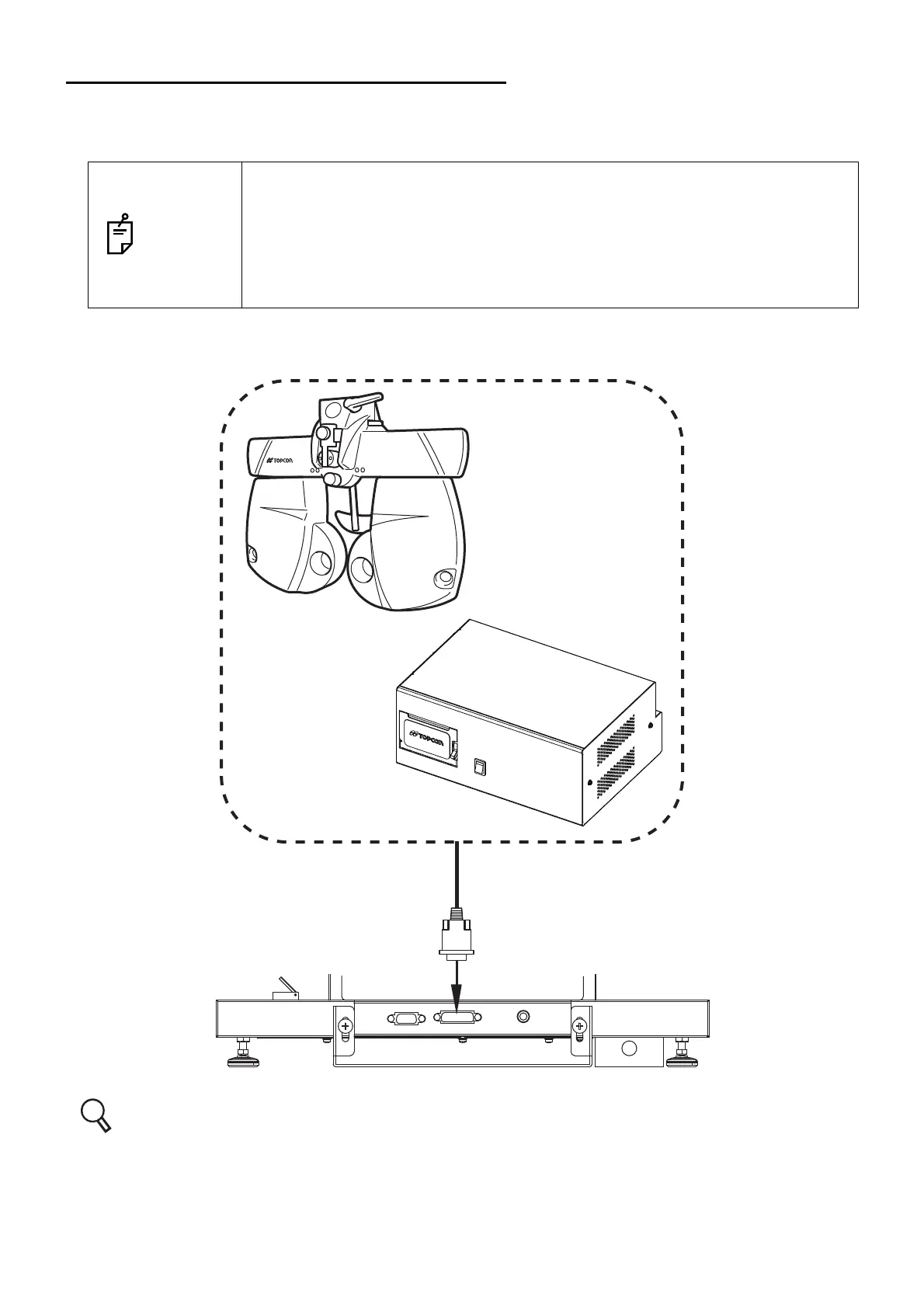

As shown below, connect the image cable to the DVI connector of this instrument.
Refer to the CV-5000 user manual for the connection method for the CV system.
NOTES
This instrument can only be connected to the following devices: CV POWER
SUPPLY UNIT WITH BUILT-IN PERSONAL COMPUTER or the personal com-
puter connected to the CV POWER SUPPLY UNIT WITH EXTERNAL PER-
SONAL COMPUTER. This instrument cannot be connected to the CV power
supply unit and the personal computer connected with the CV power supply
unit.
CV-5000
CV system
MC-4S
