4. Nomenclature
12

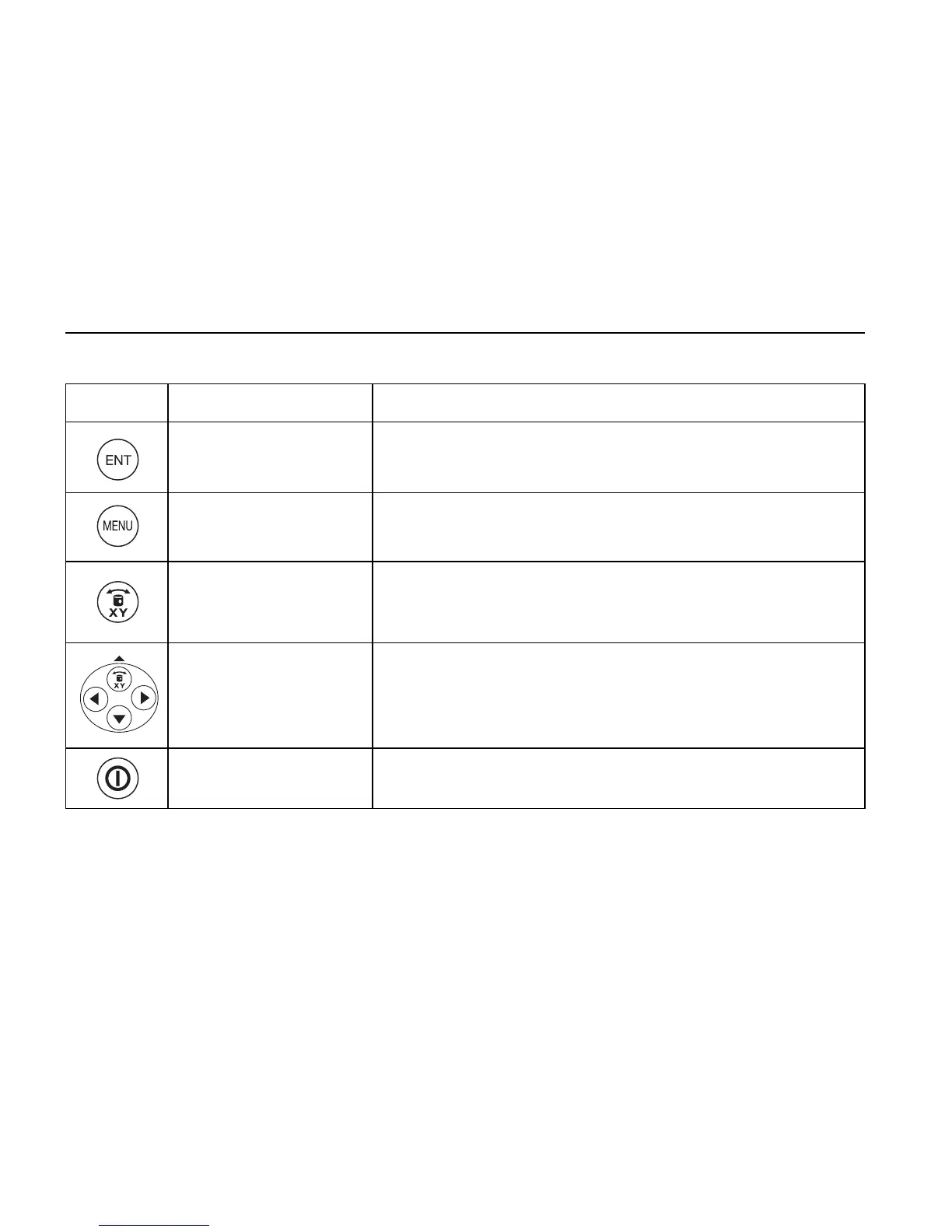

Key Nomenclature Function
Enter key
End Operation of Data Input and Sends data to the
instrument.
Menu/Escape key
Selects a menu item.
Cancels input or escape to previous status.
X/Y axis selection key/
Alignment key
Horizontal rotation: changes to the grade setting screen for
each axis.
Vertical rotation: changes to the Alignment Mode.
Arrow keys
The arrows indicate code selection, digit shift, and number
input during grade setting, and designates direction during
masking setting.
Power switch On/Off of the RL-SV2S.
