Topcon RL-SV2S User Manual

4. Nomenclature
13

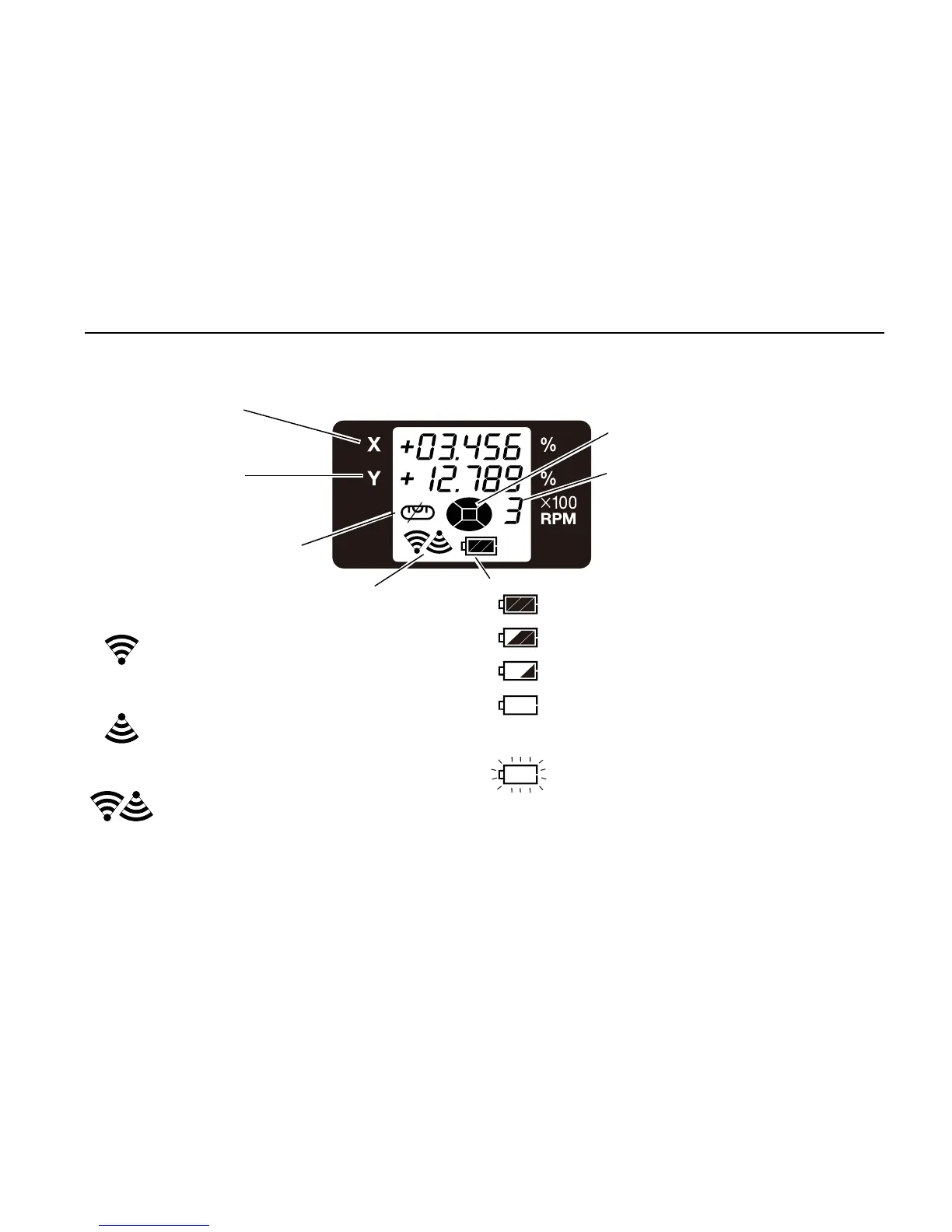

 RL-SV2S Display
Sample display
X axis grade
Transmission and reception display
Battery remaining
Y axis grade
Rotation speed
6:600/rpm
3:300/rpm
5:500/rpm
(Flashes when the battery is low)
Transmits to the receiving instrument (RC-60 or
RL-SV2S)
(Lights on until received by the receiving
instrument)
Receives from the transmitting instrument
(Lights on until the transmitting instrument
transmits next time)
When transmission from the other instrument
is not possible
(Both marks will flash slowly until the next
transmission)
Ample power for operation
Ample power for operation
Power remaining for operation
(Flashes one digit at a time
during leveling)
(Flashes one digit at a time
during leveling)
Manual Mode display
Mask Mode display
Power remaining for operation
Near power depletion. The laser speed will be
500 rpm.
Power depletion
Laser will stop
Dry cell battery type:Replace with new batteries.
Rechargeable battery type:When connecting to
AD-15 during error display, turn
OFF the power and then turn the
power back ON to restore
operation.
