7. APPLIED OPERATION AND SETTING OF VARIOUS FUNCTIONS
It is possible to set grades for the laser beam and various functions from the menu screen.
There are two methods to set grades on the laser beam: 1) direct entry of the grade values for
the X and Y axes, and 2) matching to set grades on laser beam according to the slope of the
ground on site.
How to enter grade values
Grade can be set in both axes, X and Y, as shown below.
Grades can be set in the range indicated below.
7.1 Setting Grades

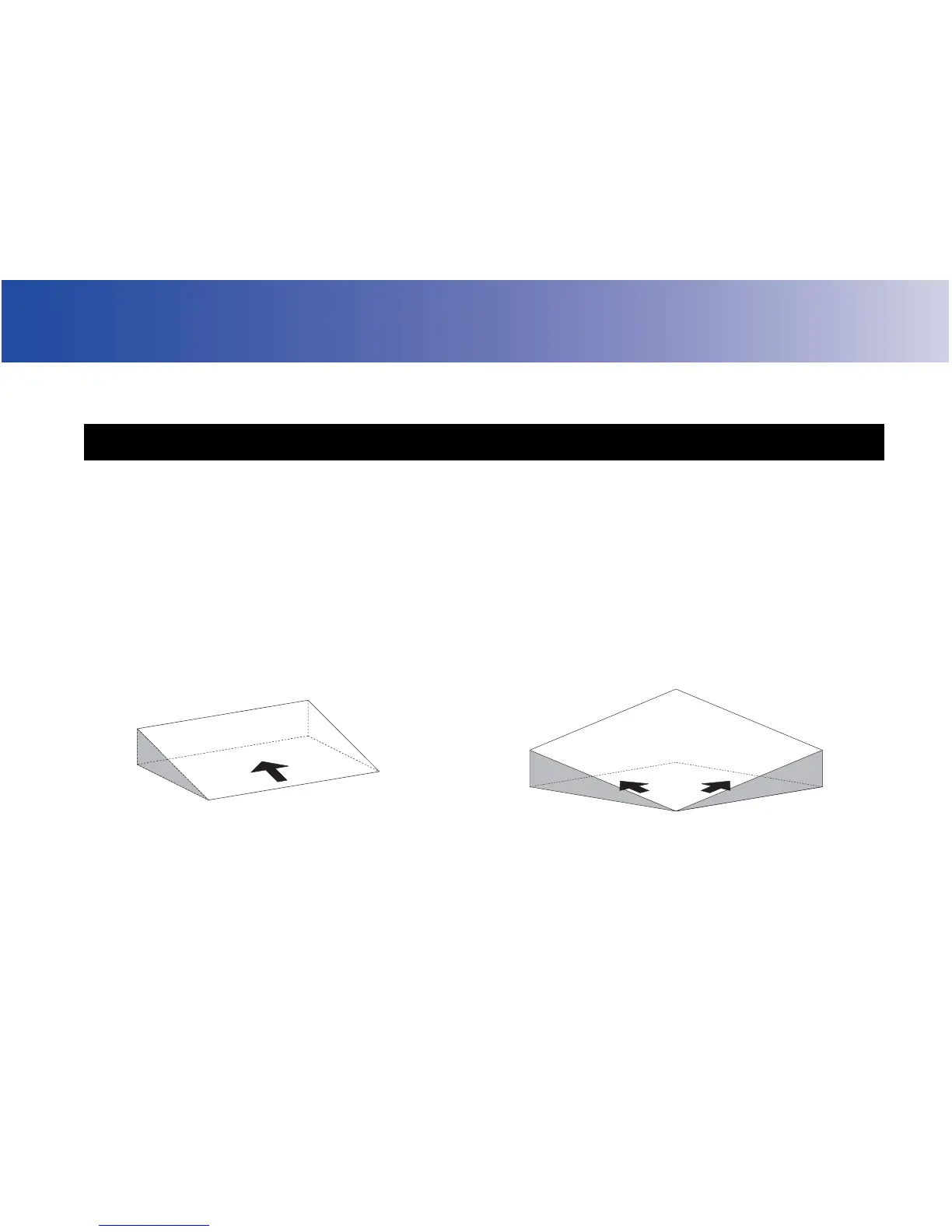

Single axis Dual axes
Grade range:
X: –15% to +15%
or
Y: –15% to +15%
Grade range:
X: –15% to +15%
Y: –15% to +15%
X axis
Y axis
To Next Page
