6. Basic Operation
27

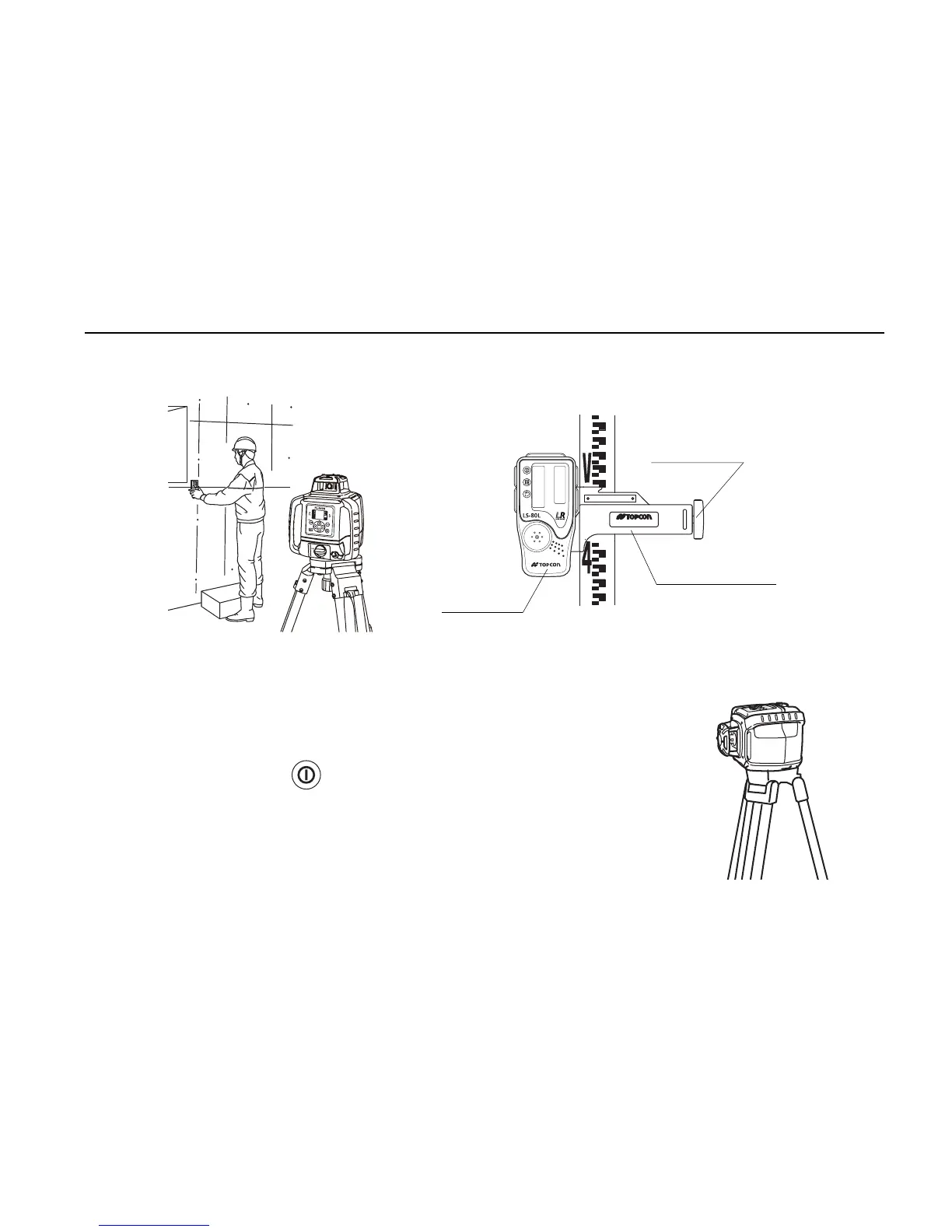

Example Operational
Vertical Rotation
1
Install the RL-SV2S on to the tripod and set so that the bubble is
at the center of the vertical rotation circular level vial.
2 Press power switch .
When auto leveling is complete, the laser beam will emit vertically.
About manual line control C7.2 Line Control (manual vertical
beam alignment)(p. 37)
154
152
150
153
151
138
136
134
132
139
137
135
133
131
131
149
147
148
146
HOLDER-6
Install the LS-80L on a staff in the manner shown
below.
Clamp knob
Level sensor
holder model 6
LS-80L
