7. Applied Operation and Setting of Various Functions
41
Masking (Laser beam shutter) setting
Depending on the status of the location where the instruments are used, laser beam emission
to unnecessary direction can be shut off.
1 Press key to display the menu screen.
2 Use the key to position on the Mask display and press the key.
3 Select the direction you desire to mask using the arrow keys.
Each press repeats mask activating/releasing.

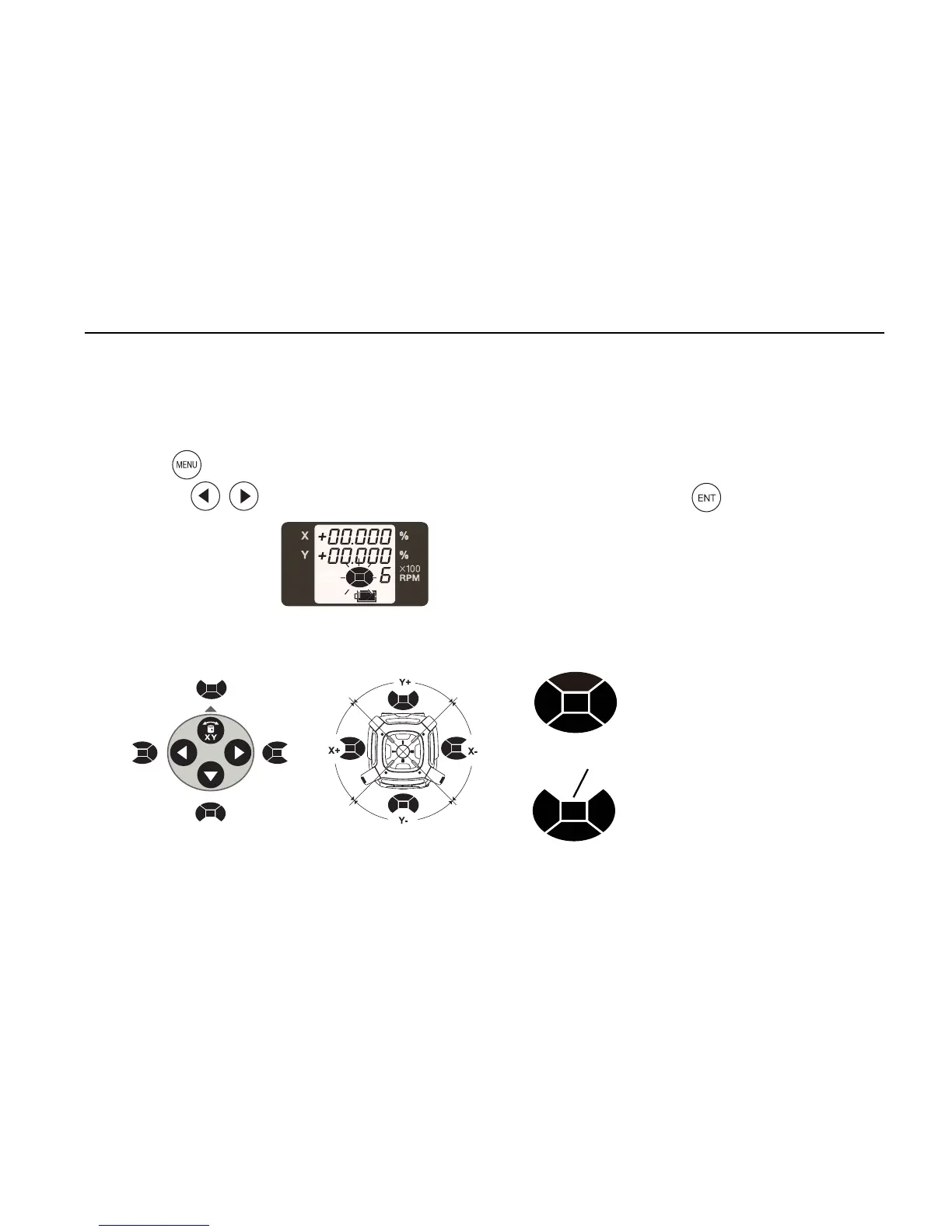

RL-SV2S upper
surface diagram and
masking directions
Arrow keys and masking
setting directions
The state when masking is not
activated. (Laser beams are emitted
to all directions.)
Displays the masking direction
The status in which the Y+ direction
is masked.
(Laser beam is shut off in the Y+
direction.)
