4. Nomenclature
15

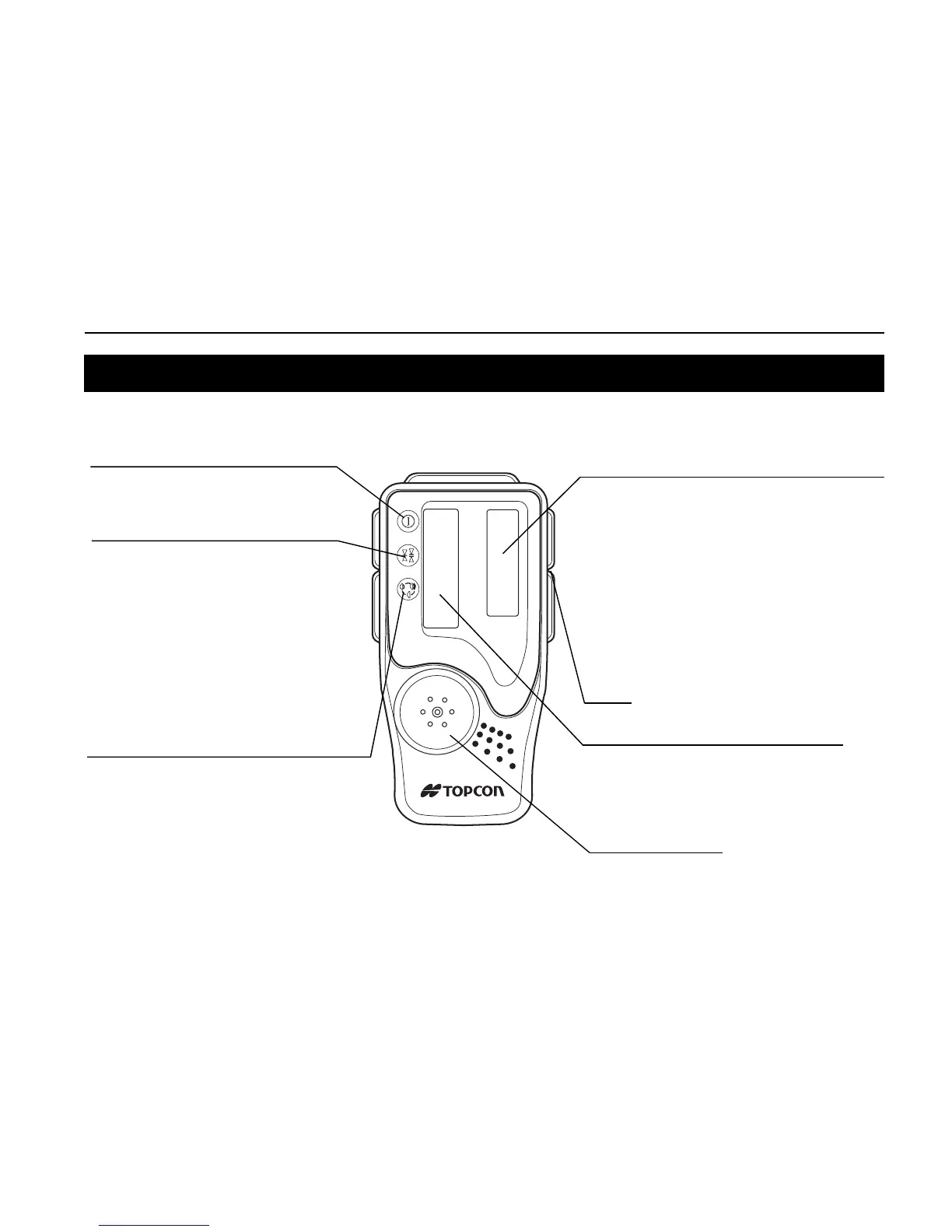

LS-80L Nomenclature
4.3 Level Sensor LS-80L
Beam receiving window
Turn the beam receiving window side
towards RL-SV2S to detect the laser
beam.
Buzzer sound switch
Volume of the sensor buzzer can be
alternately switched to
LOW/LOUD/OFF by pressing the switch.
Index
On-Grade precision switch
Two on-grade precision options are
available, normal precision (±2mm)
and high precision (±1mm). By
pressing this switch, the precision
options are switched alternately.
Confirm the precision choice by the
indicator. (Normal precision is the
default setting each time the sensor
is turned on.)
Power switch
The power switch turns ON or OFF
by pressing.
Buzzer speaker
Indicator
“LS-80L Display” (p. 16)
Detect the on-grade position "---" by moving
the LS-80L up and down. Directional arrows
and audio signals assist in locating the on-
grade positiion as the laser strikes the
beam receiving window. (Top of LS-80L is
40mm (1 9/16") from on-grade index for
offset marking.)
The indicators are located on front and bac
