24
ASSEMBLY PROCEDURE

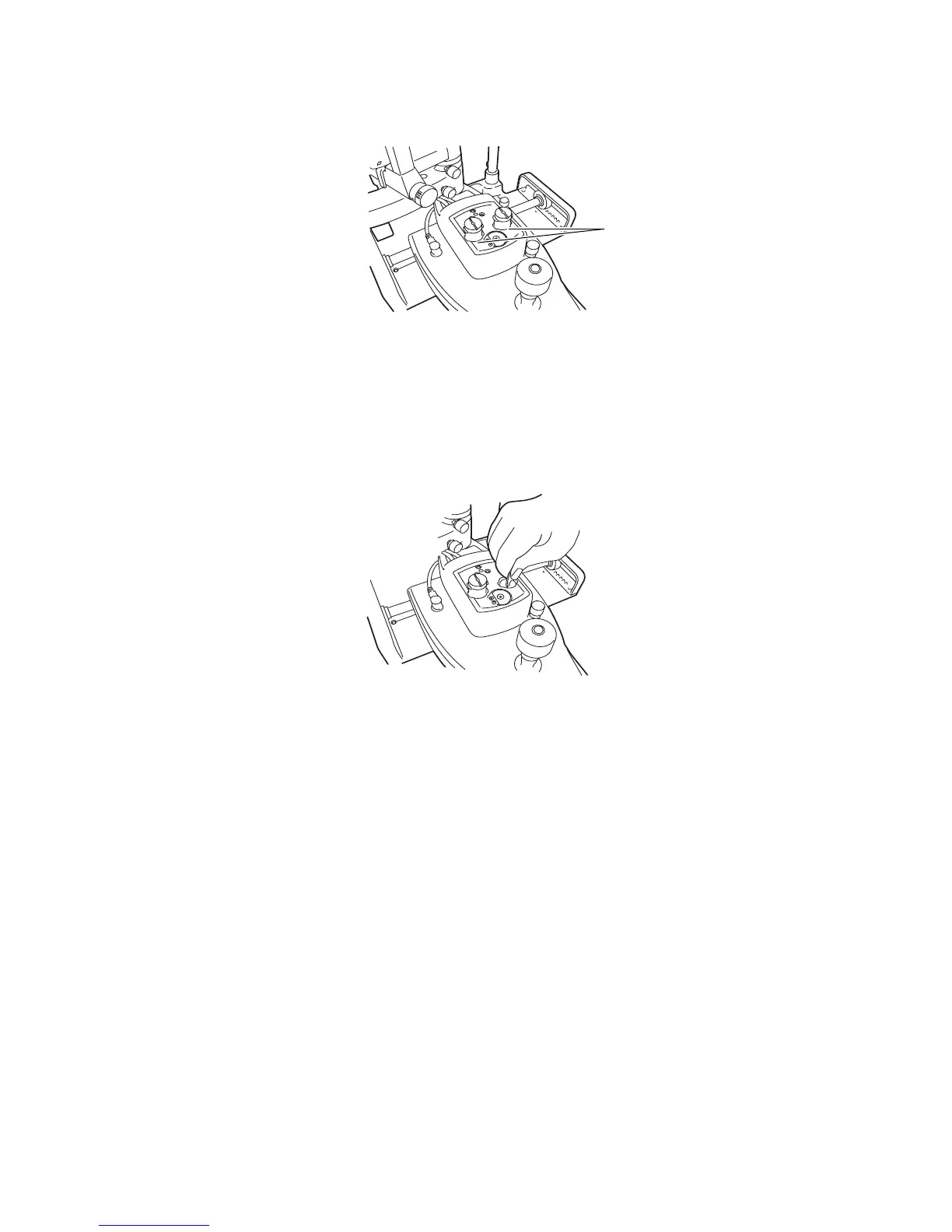

2 Insert the auxiliary spring unit vertically into the auxiliary spring port, with the flange face
turned upwards. (Make sure that the spring is inserted into the groove in the bottom of the
port.)
3 Open the auxiliary spring unit with the auxiliary spring port, and lightly push the spring till
it stops. (You can use a large screwdriver, a flat sheet metal tool, a coin or something
similar to do this.)
4 With the auxiliary spring unit lightly touching the stopper, turn about 90° (in either
direction), then release. The auxiliary spring locks into the positioning groove and
assembly is complete. (To remove the auxiliary spring, lightly press it down to the stopper,
rotate it 90° and remove from the port.)
Auxiliary spring port
