Topcon SL-D2 User Manual

28

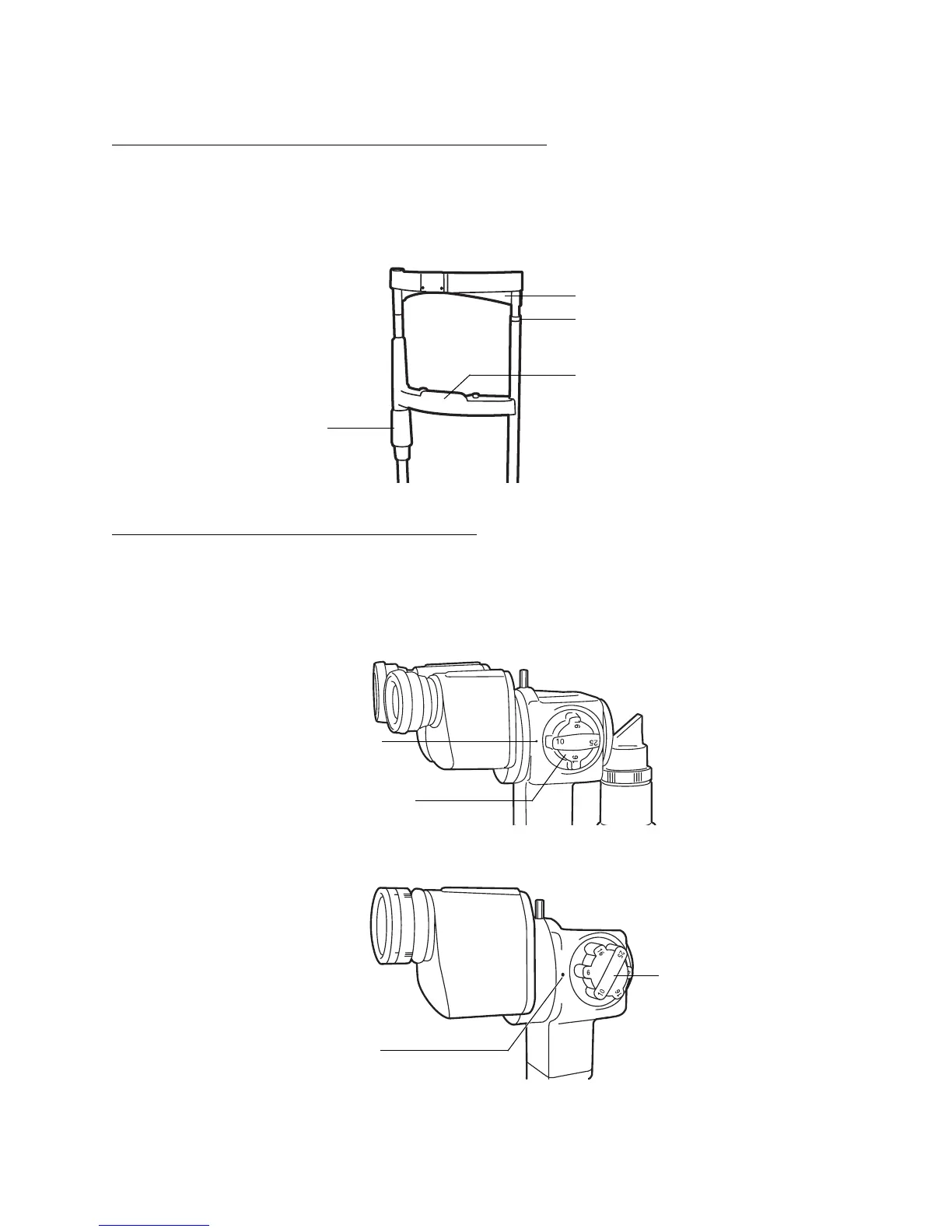

OPERATION PROCEDURES
OPERATION PROCEDURES
FIXING THE PATIENT’S FACE AND FIXATION
1 Place the patient’s chin on the chinrest with his forehead against the forehead rest.
2 Rotate the chinrest adjuster to align the patient’s eye with the canthus marker on the
chinrest frame.
OPERATING THE MICROSCOPE UNIT
Turn the magnification selector handle and set a magnification mark to the magnification index
mark.
SL-D2
SL-D4
Forehead rest
Canthus marker
Chinrest
Chinrest adjuster
Magnification index mark
Magnification selector handle
Magnification selector
handle
Magnification index mark
